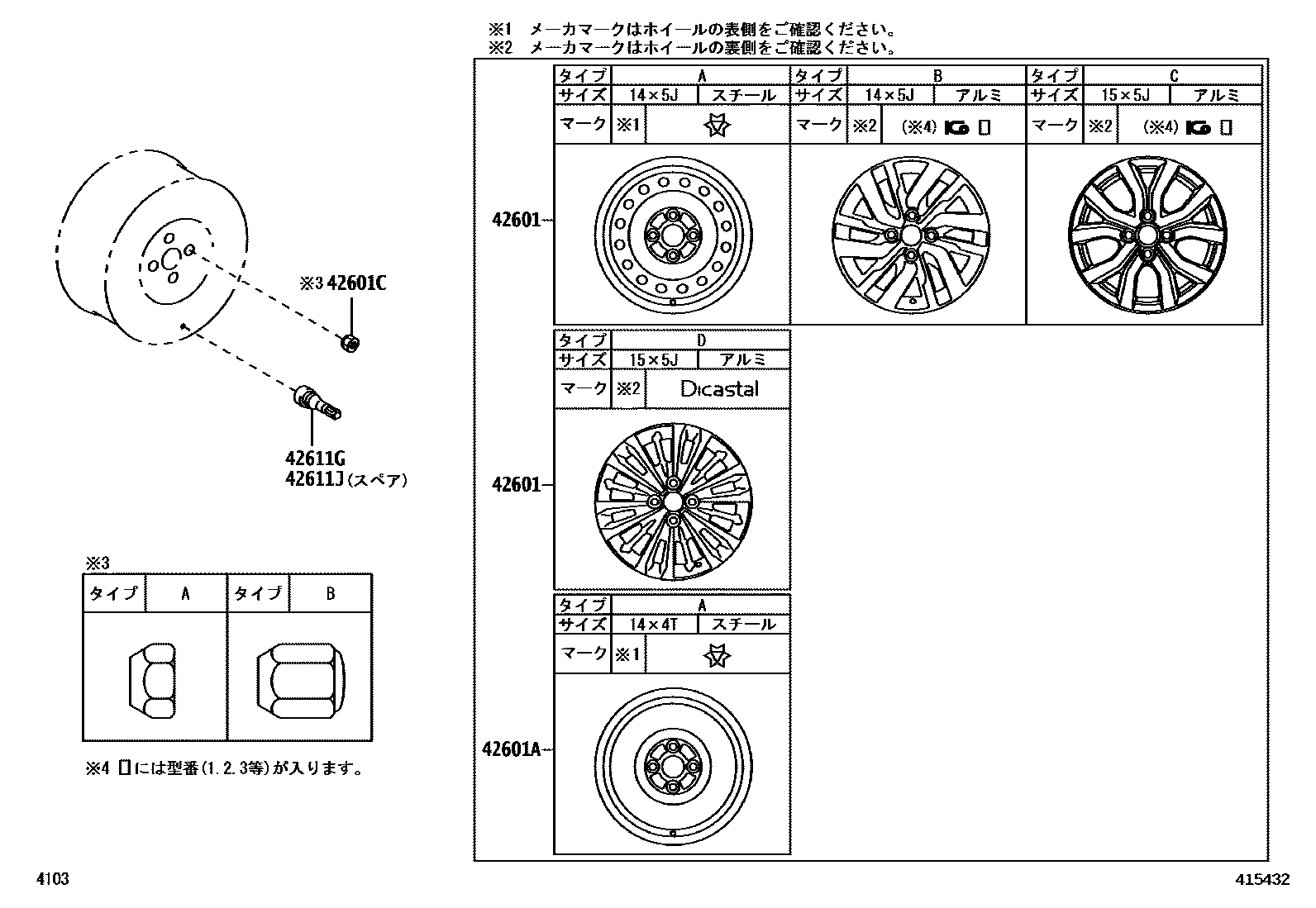

DISC WHEEL & WHEEL CAP

0001 1���������,�������� 0002 1������,��������� 0003 1���������,����������

42601WHEEL, DISC

main42611-B1210-B0×4iM900,910..CTMG..NTBO; M900,910..G..NTBO201611-202009

main42611-B1220×4iM900,910..G,X201611-202009

main42611-B1230-E0×4iM900..CTMG..TBO; M900..G..TBO201611-202009

main42611-BW170-B0×4iM900..CTMG..TBO202009

42601AWHEEL, DISC (FOR SPARE)

main42611-97540iM900,910201611-202009

42601CNUT, HUB (FOR AXLE)

main90049-11036×16iM900,910..G,X202009-202208

main90049-11047×16iM900,910..CTMG202009

main90942-01007×16iM900,910..G,X202209

42611GVALVE (FOR TUBELESS TIRE)

main90049-02019×4iM900,910201611-202009

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90049-02019iM900,910201611-202009

5 parts on this diagram · 3 diagrams in section
