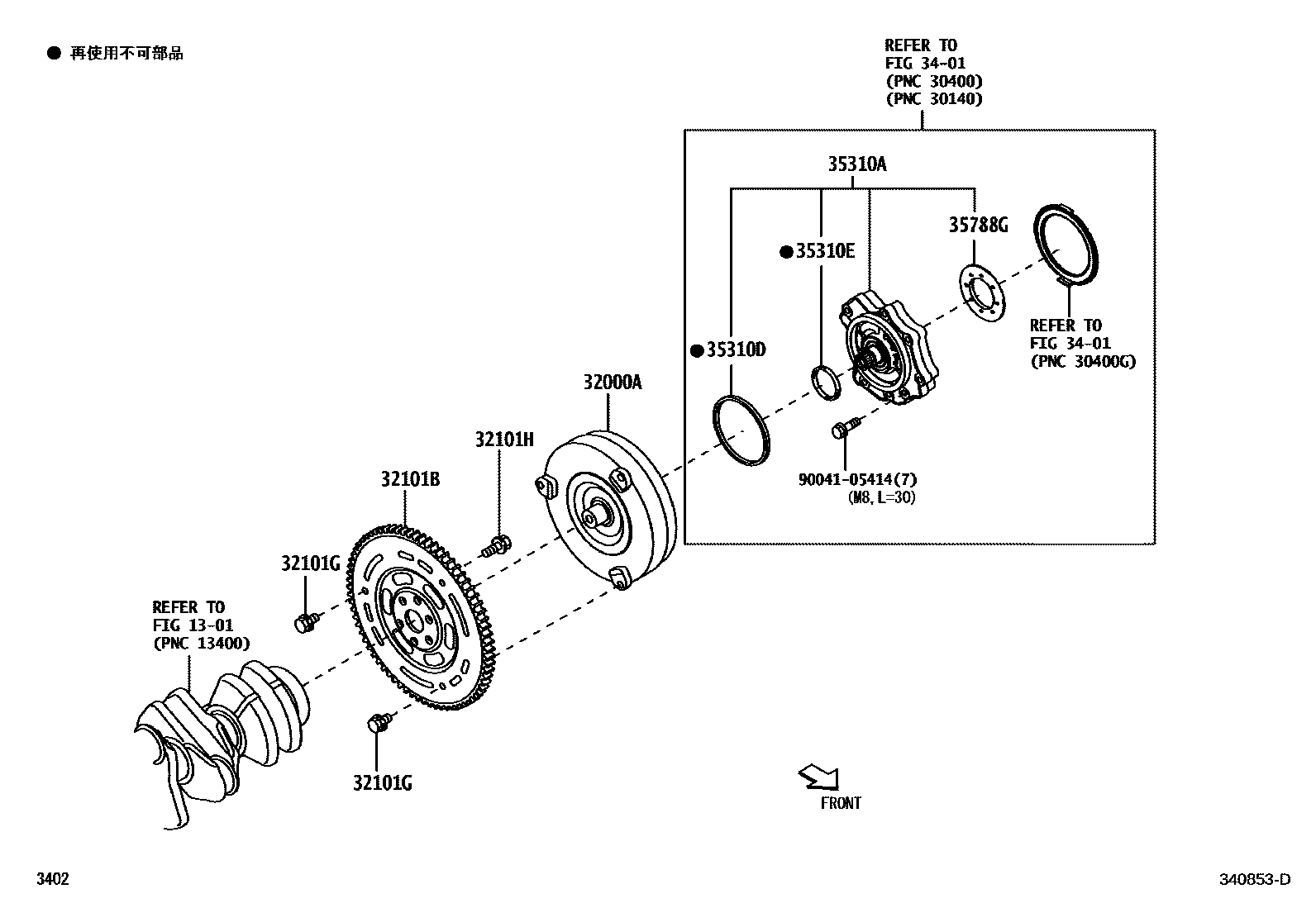

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

32000ACONVERTER ASSY, TORQUE

main32000-B1120iM900,910..NTBO201611-202009

main32000-B1170iM900..TBO201611-202009

main32000-B1200iM900..TBO202009

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-B1051iM900,910..NTBO201611-202009

main32101-B1060iM900..TBO202009

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90041-05280iM900,910202009

main90041-05281×2iM900,910..NTBO; M900..TBO202009

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90048-01037×6iM900,910202009

3401TRANSAXLE ASSY(CVT)

→ Go to FIG 34-01

35310APUMP ASSY, FRONT OIL

main35310-B9071iM900,910..NTBO201611-202009

35310DRING, O (FOR FRONT OIL PUMP)

main90043-01332iM900,910..NTBO201611-202009

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main90043-11369iM900,910..NTBO201611-202009

35788GRACE, THRUST BEARING

main35789-B2061iM900,910..NTBO202009

main35789-B2071iM900,910..NTBO201611-202009

main35789-B2081iM900,910..NTBO201611-202009

main35789-B2091iM900,910..NTBO201611-202009

main35789-B2101iM900,910..NTBO201611-202009

main35789-B2111iM900,910..NTBO202009

9004105414

main90041-05414

11 parts on this diagram · 1 diagram in section
