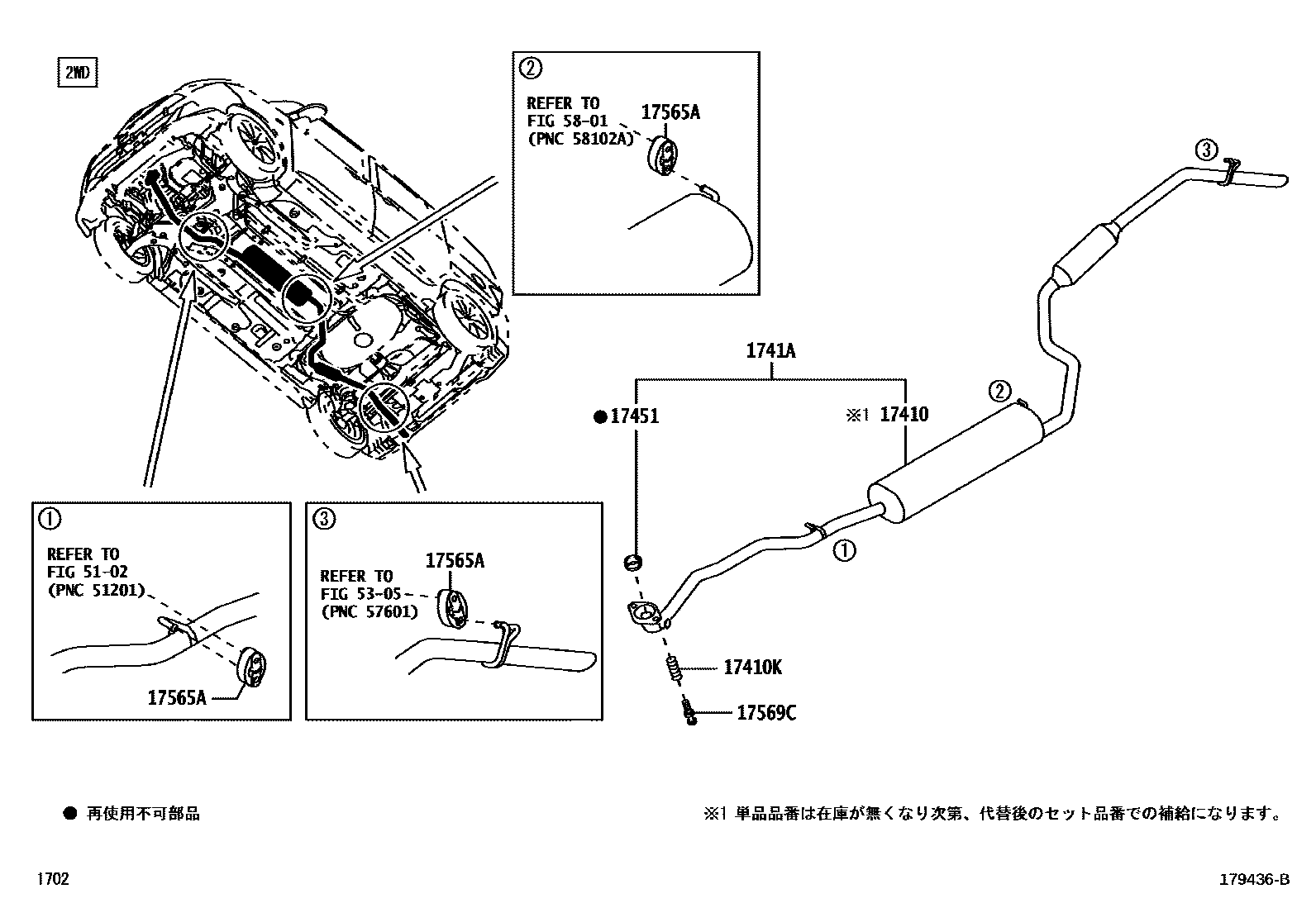

EXHAUST PIPE

0001 12WD 0002 14WD

17410PIPE ASSY, EXHAUST, FRONT

main17410-B1360i1KRFE..M900201611-201909

main17410-B1370i1KRVET..M900201611-201909

main17410-B1380i1KRFE..M910201611-202009

17410KSPRING, EXHAUST PIPE

main17152-97201×2i1KR#..M900,910202009

1741APIPE SET, EXHAUST

main17410-B9730i1KRFE..M900201611-202009

main17410-B9740i1KRVET..M900201611-202009

main17410-B9750i1KRFE..M910202009

main17410-B9820i1KRVET..M900202009

17451GASKET, EXHAUST PIPE

main17451-B1010i1KRVET..M900202009

main17451-B1021i1KRFE..M900,910202009

17565ASUPPORT, EXHAUST PIPE, NO.4

main17567-B2020×3i1KR#..M900,910201611-202009

17569CBOLT, EXHAUST PIPE SUPPORT

main17569-97201×2i1KR#..M900,910201611-202009

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

9 parts on this diagram · 2 diagrams in section
