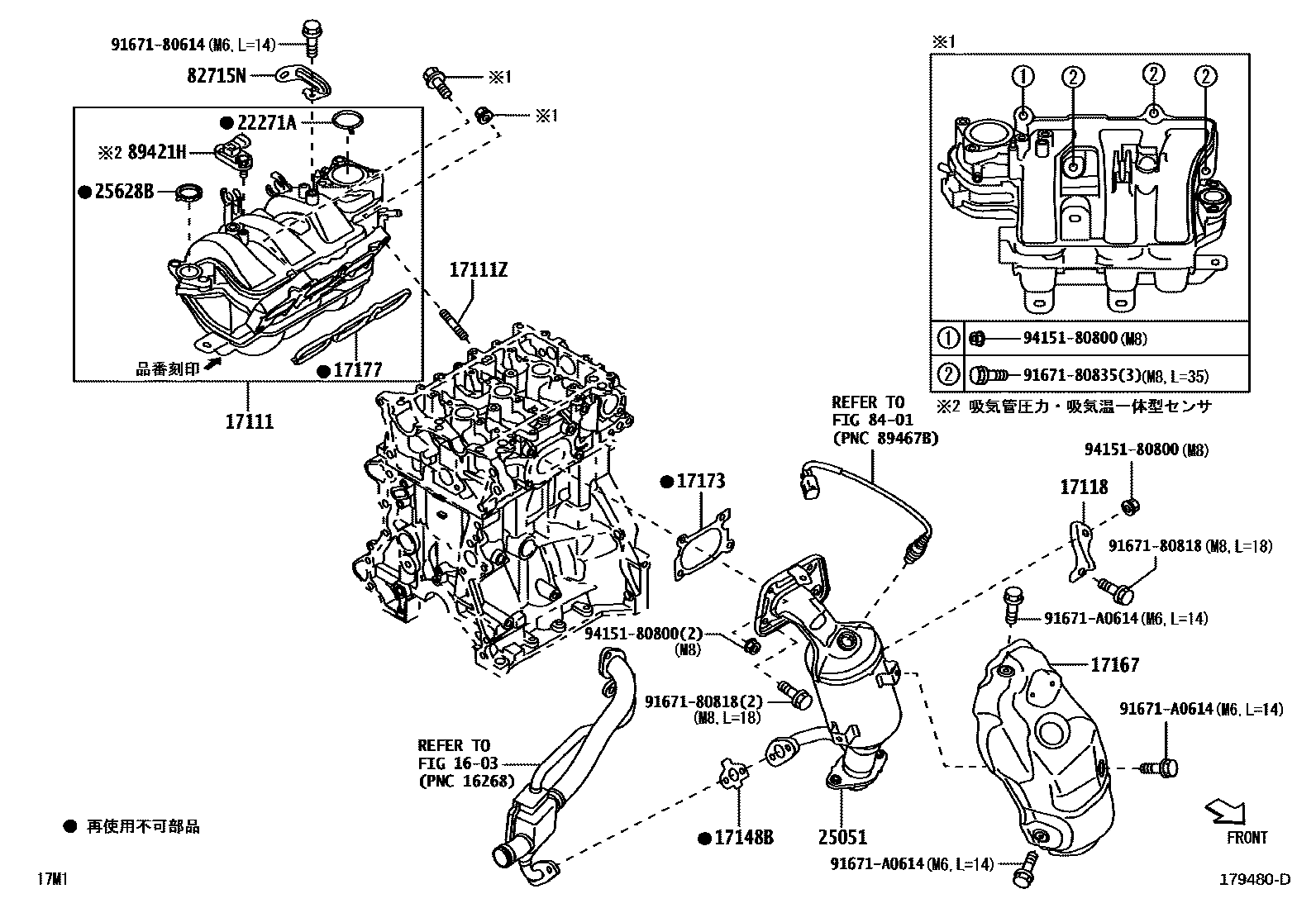

MANIFOLD

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

17111MANIFOLD, INTAKE

main17120-B1051i1KRFE..M900,910201611-202009

main17120-B1060i1KRVET..M900201611-202009

main17120-B1110i1KRVET..M900202009

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main92122-80828i1KR#..M900,910201611-202009

17118STAY, MANIFOLD

main17118-40040i1KRFE..M900,910202009

main17118-B1040i1KRVET..M900201611-202006

main17118-B1070i1KRVET..M900202007-202009

17148BGASKET, EGR INLET

main25685-B1010i1KRFE..M900,910201611-202009

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-B1050i1KRFE..M900,910201611-202009

main17167-B1060i1KRVET..M900201611-202009

main17167-B1080i1KRVET..M900202009

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-40040i1KRFE..M900,910202009

main17173-B1020i1KRVET..M900202009

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-B1030i1KR#..M900,910201611-202009

22271AGASKET, THROTTLE BODY

main22271-40030i1KR#..M900,910201611-202009

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

main25051-B1180i1KRFE..M900,910201611-202006

main25051-B1181i1KRFE..M900,910202007-202009

main25051-B1190i1KRVET..M900201611-202009

main25051-B1210i1KRVET..M900202009

25628BGASKET, EGR INLET

main25628-B1040i1KRFE..M900,910201611-202009

82715NBRACKET, WIRING HARNESS CLAMP

main82715-B1510iM900,910..NTBO201611-202009

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89421HSENSOR, VACUUM

main89421-52010iM900,910..NTBO201611-202009

main89421-B1020iM900..TBO202009

9167180614

main91671-80614

9167180818

main91671-80818

9167180835

main91671-80835

91671A0614

main91671-A0614

9415180800

main94151-80800

19 parts on this diagram · 2 diagrams in section
