Toyota TANK/ROOMY — WATER PUMP

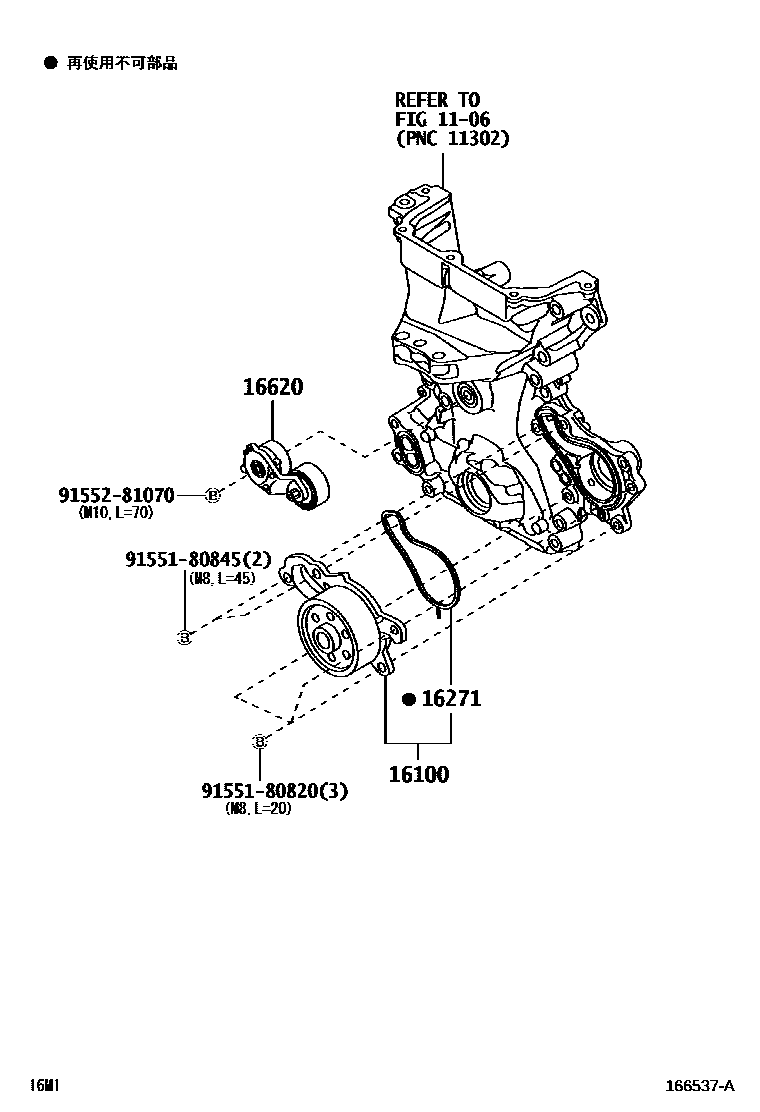

Parts diagram
1106TIMING GEAR COVER & REAR END PLATE
→ Go to FIG 11-06
16100PUMP ASSY, ENGINE WATER
16100-80012
16100-80015
16100-80017
16271GASKET, WATER PUMP
16271-40030
16620TENSIONER ASSY, V-RIBBED BELT
16620-40020
16620-B1020
16620-B1021
16620-40021
16620-B1030
9155180820
91551-80820
9155180845
91551-80845
9155281070
91552-81070

7 parts on this diagram · 3 diagrams in section

WATER PUMP for Toyota TANK/ROOMY

This section contains 12 genuine Toyota parts for the WATER PUMP system of the Toyota TANK/ROOMY. Key components include: TIMING GEAR COVER & REAR END PLATE, PUMP ASSY, ENGINE WATER, GASKET, WATER PUMP, PULLEY SUB-ASSY, IDLER, NO.1, BOLT(FOR IDLER PULLEY).
