Toyota TANK/ROOMY — VENTILATION HOSE

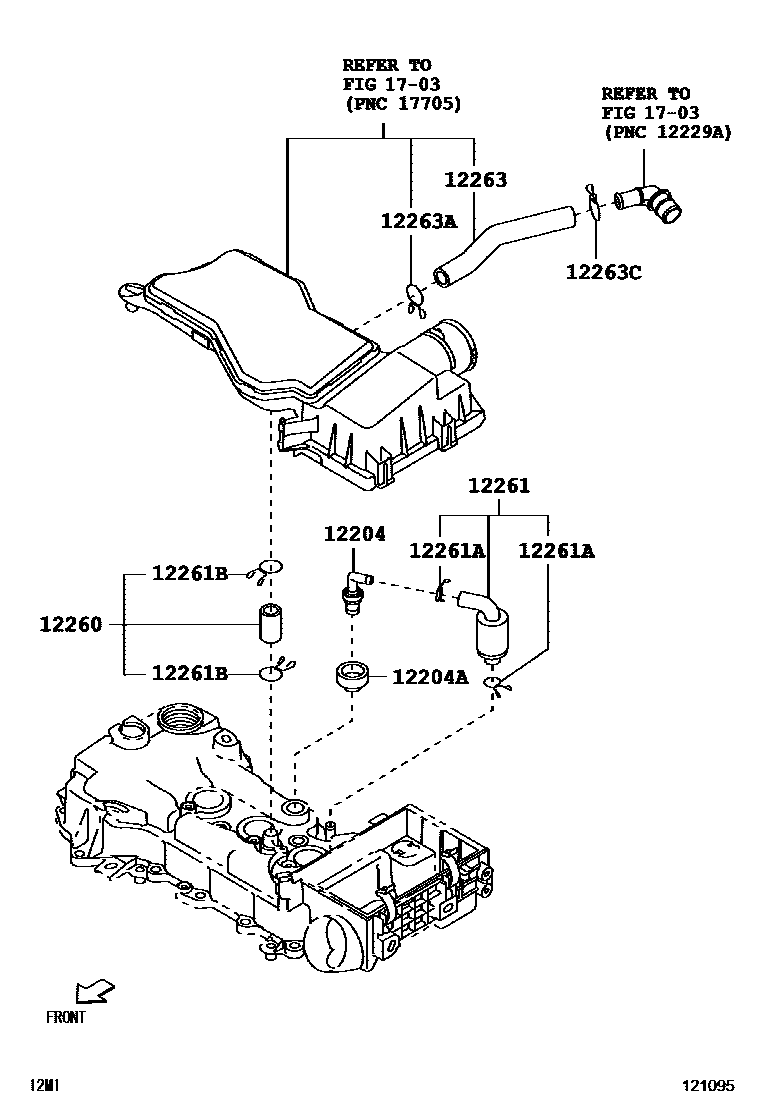

Parts diagram

12204VALVE SUB-ASSY, VENTILATION

12204AGROMMET(FOR VENTILATION SYSTEM)

12260HOSE ASSY, VENTILATION

12261HOSE, VENTILATION

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

12261BCLIP OR CLAMP(FOR VENTILATION HOSE)

12263HOSE, VENTILATION, NO.3

12263ACLIP(FOR VENTILATION HOSE)

12263CCLIP(FOR VENTILATION HOSE)

1703AIR CLEANER

→ Go to FIG 17-03

10 parts on this diagram · 2 diagrams in section

VENTILATION HOSE for Toyota TANK/ROOMY

This section contains 16 genuine Toyota parts for the VENTILATION HOSE system of the Toyota TANK/ROOMY. Key components include: VALVE SUB-ASSY, VENTILATION, GROMMET(FOR VENTILATION SYSTEM), EJECTOR, VENTILATION, HOSE ASSY, VENTILATION, HOSE, VENTILATION.
