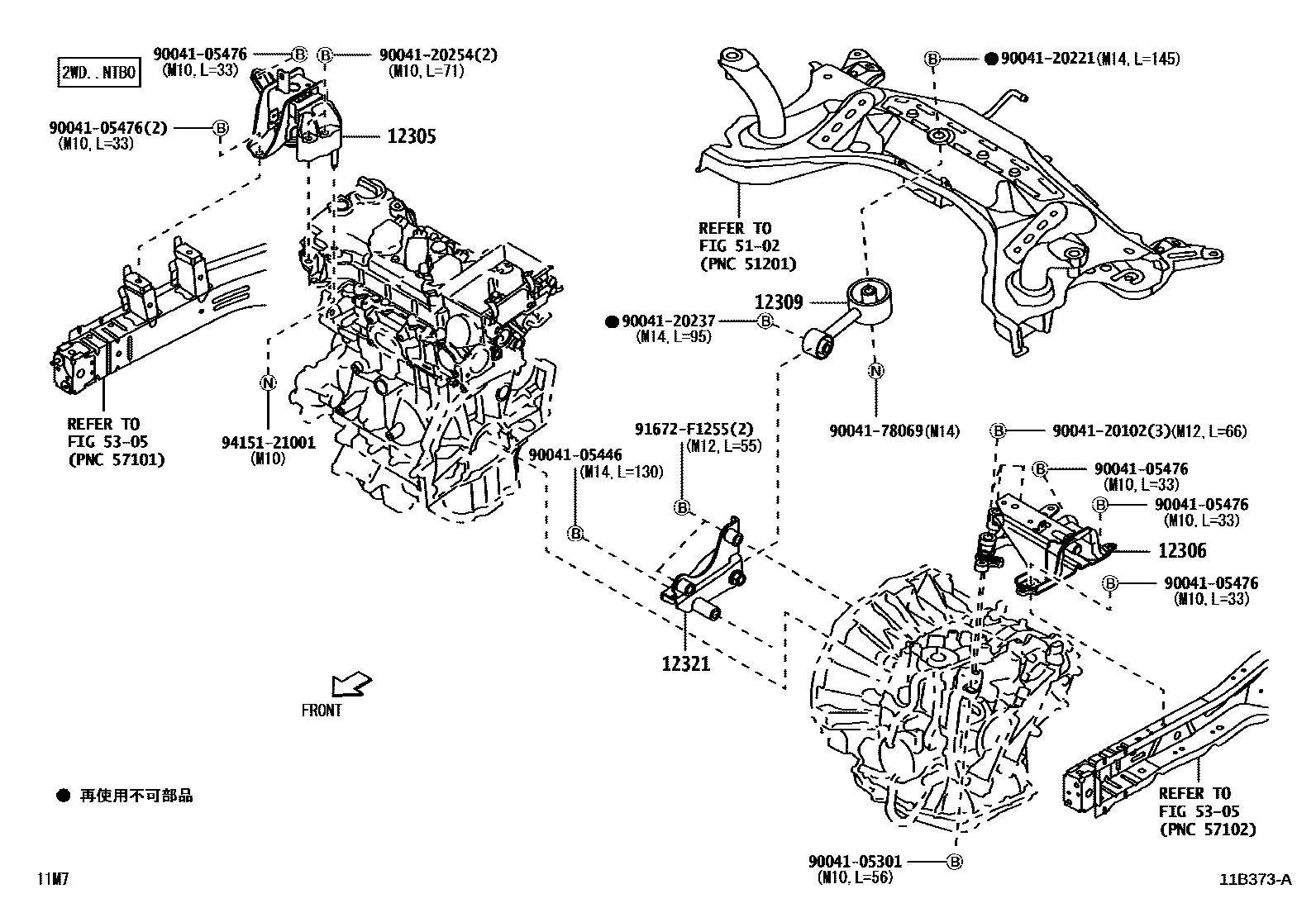

MOUNTING

0001 1 0002 1 0003 1

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-B1140i1KRFE..M900,910201611-201805

main12305-B1141i1KRFE..M900,910201806-202009

main12305-B1150i1KRVET..M900201611-201805

main12305-B1151i1KRVET..M900201806-202009

12306INSULATOR SUB-ASSY, ENGINE MOUNTING, LH

main12306-B1140i1KRFE..M900,910201611-202009

main12306-B1150i1KRVET..M900202009

12309ROD SUB-ASSY, ENGINE MOVING CONTROL

main12309-B1100i1KRFE..M900202009

main12309-B1120i1KRVET..M900201611-202009

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-B1020i1KRFE..M910201611-202009

main12321-B1040i1KRFE..M900202009

main12321-B1080i1KRVET..M900201611-202009

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

9004105301

main90041-05301

9004105446

main90041-05446

9004105476

main90041-05476

9004120102

main90041-20102

9004120221

main90041-20221

9004120237

main90041-20237

9004120254

main90041-20254

9004178069

main90041-78069

91672F1255

main91672-F1255

9415121001

main94151-21001

16 parts on this diagram · 3 diagrams in section
