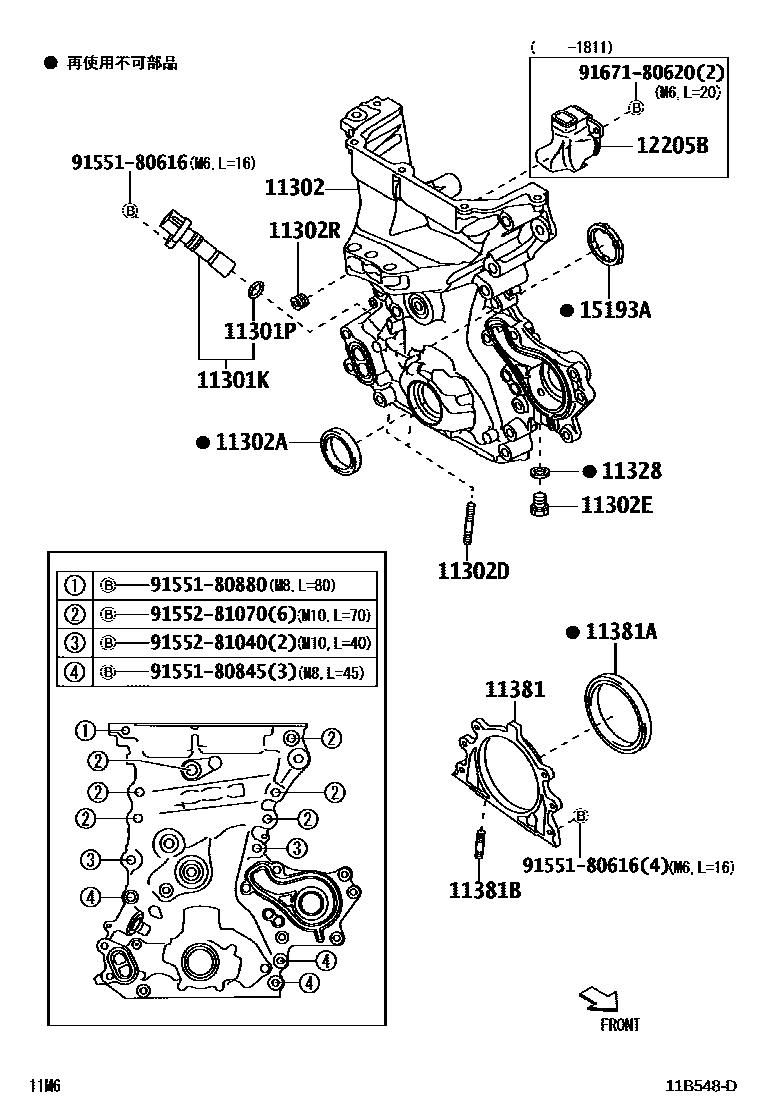

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11301KSENSOR, CRANK POSITION

main90919-05062i1KR#..M900,910202009

11301PO RING, CRANK POSITION SENSOR

main90301-14016i1KR#..M900,910201611-202009

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-B1030i1KRFE..M900,910201611-202007

main11310-B1031i1KRFE..M900,910202008-202009

main11310-B1040i1KRVET..M900201611-201909

main11310-B1110i1KRVET..M900201909-202009

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-38092i1KRFE..M900,910201611-202009

11302DBOLT, STUD(FOR TIMING GEAR COVER)

main90116-06134×2i1KR#..M900,910201611-202009

11302EPLUG, STRAIGHT(FOR TIMING GEAR COVER)

main90341-08008i1KR#..M900,910201611-202009

11302RPLUG, TIGHT, NO.1(FOR TIMING GEAR COVER)

main90344-53006i1KR#..M900,910201611-202009

11328GASKET, TIMING GEAR OR CHAIN COVER

main90430-08020i1KR#..M900,910201611-202009

11381RETAINER, ENGINE REAR OIL SEAL

main11381-40030i1KR#..M900,910201611-202009

11381ASEAL, ENGINE REAR OIL

main90311-73005i1KR#..M900,910201611-202009

11381BBOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)

main90126-06029i1KR#..M900,910201611-202009

12205BCASE SUB-ASSY, VENTILATION

main12205-40020i1KRFE..M900,910201611-201811

main12205-B1020i1KRVET..M900201611-201811

15193AGASKET, OIL PUMP

main15193-40010i1KR#..M900,910201611-202009

9155180616

main91551-80616

9155180845

main91551-80845

9155180880

main91551-80880

9155281040

main91552-81040

9155281070

main91552-81070

9167180620

main91671-80620

19 parts on this diagram · 2 diagrams in section
