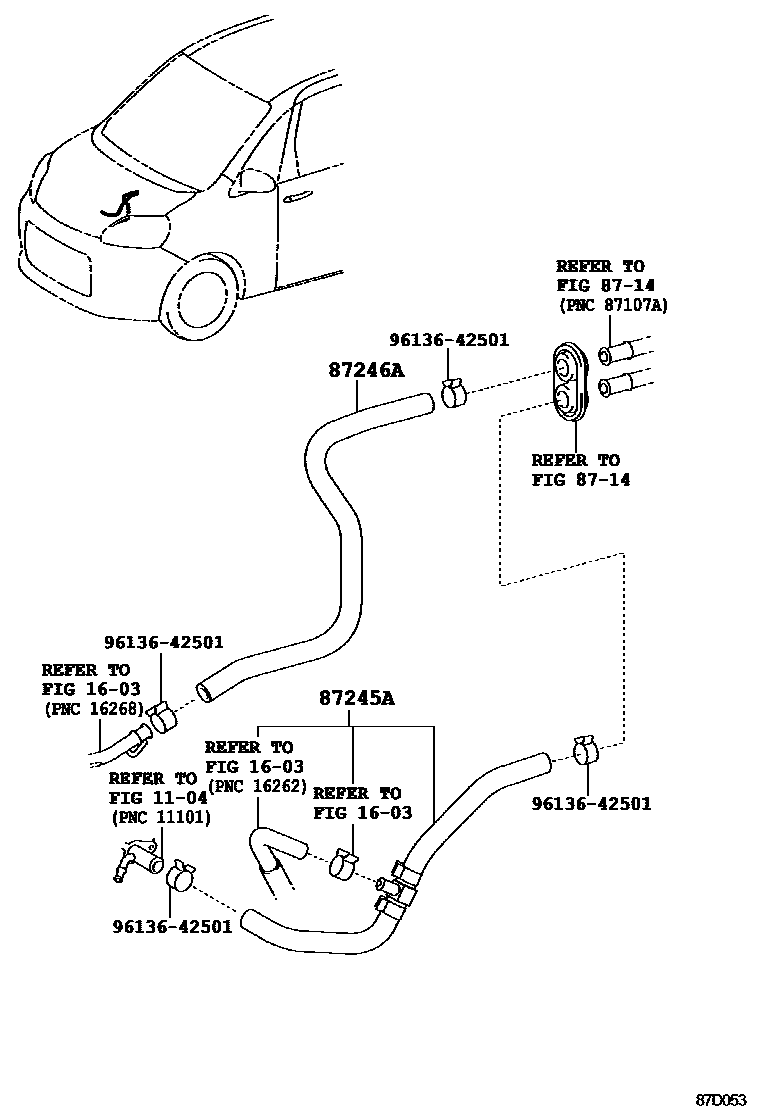

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0003 1 0004 1

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245AHOSE, HEATER WATER, INLET A

main87209-52191iNCP14#..CBU201207-201208

main87209-52192iNCP14#..CBU201208-201507

main87245-52300iNSP141..CBU201507

87246HOSE, HEATER WATER, OUTLET

main87209-52360iNSP141..CBU201507

87246AHOSE, HEATER WATER, OUTLET A

main87245-52110iNCP14#..CBU201207-201507

main87245-52330iNSP141..CBU201507

9613642501

main96136-42501

7 parts on this diagram · 3 diagrams in section
