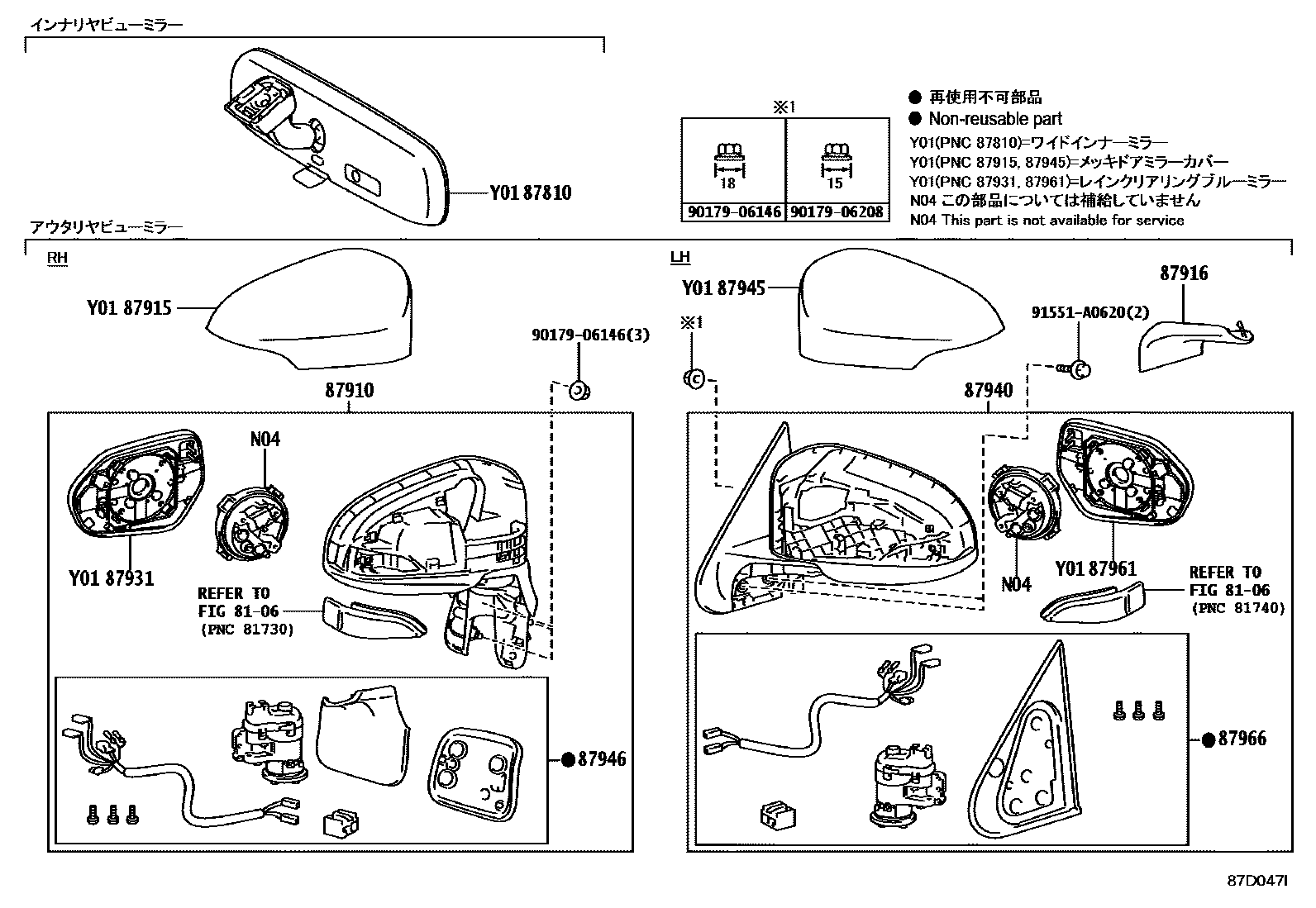

MIRROR

0001 1 0002 1

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

87810MIRROR ASSY, INNER REAR VIEW

main87810-28130iNCP145,NSP141..CBU201607-201711

main87810-28140iNCP145,NSP141..CBU201712

main87810-52041iNCP145,NSP141..CBU201507-201607

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-52E70supersedes 87910-52E60iNCP14#,NSP140..CBU201207-201507

main87910-52F50iNCP145,NSP141..SPADE..F..CBU201811-201907

main87910-52F60iNCP145,NSP141..SPADE..(F,G,X,Y)..CBU201507-201607

87915COVER, OUTER MIRROR, RH

main87915-33020-A1iNCP14#,NSP140..CBU201207-201507

WHITE PEARL CS.,070

main87915-33020-B0iNCP14#,NSP140..CBU201207-201507

SILVER ME.,1F7

main87915-33020-C1iNCP14#,NSP140..CBU201207-201507

BLACK MC.,209

main87915-33020-D1iNCP14#,NSP140..CBU201207-201507

SUPER RED 5,3P0

main87915-33020-E3iNSP140..V201207-201404

DK. BROWN M.M.,4U3

main87915-33020-E4iNCP14#,NSP140..CBU201207-201507

CREAM BEIGE,4V9

main87915-33020-G1iNCP14#,NSP140..CBU201207-201507

AIR GREEN M.M.,6W1

main87915-33020-G2iNCP14#,NSP140..CBU201207-201507

CITRUS M.M.,6W2

main87915-33020-J5iNCP14#,NSP140..CBU201207-201507

LT.BLUE M.M.,8S1

main87915-33020-K0iNCP14#,NSP140..CBU201207-201507

DK.VIOLET M.M.,9AF

main87915-52250-E0supersedes 87915-52251-E0iNCP145,NSP141..(G,X,Y)..CBU;NCP145,NSP141..SPADE..F..CBU; NCP145,NSP141..PORTE..F..CBU201507-201712

main87915-52230iNCP14#..SPADE..F..CBU201404-201507

main87915-52250-A0supersedes 87915-52251-A0iNCP145,NSP141..PORTE..F..CBU; NCP145,NSP141..SPADE..F..CBU;NCP145,NSP141..(G,V,X,Y)..CBU201507-201712

main87915-52250-B0iNCP145,NSP141..CBU201507-201712

main87915-52250-C0iNCP145,NSP141..CBU201507-201712

main87915-52250-C1iNCP145,NSP141..CBU201607-201712

main87915-52250-D0supersedes 87915-52251-D0iNCP145,NSP141..(F,G,X,Y)..CBU201507-201712

main87915-52250-D1supersedes 87915-52251-D1iNCP145,NSP141..SPADE..(F,G,X,Y)..CBU201507-201712

main87915-52250-D2iNCP145,NSP141..PORTE..CBU201507-201712

main87915-52250-E1supersedes 87915-52251-E1iNCP145,NSP141..PORTE..(F,G,X,Y)..CBU201507-201712

main87915-52250-E2iNCP145,NSP141..PORTE..CBU201607-201712

main87915-52250-F0iNCP145,NSP141..SPADE..(F,G,X,Y)..CBU201507-201712

main87915-52250-F1iNCP145,NSP141..PORTE..(F,G,X,Y)..CBU201507-201607

main87915-52250-F2supersedes 87915-52251-F2iNCP145,NSP141..SPADE..CBU201712-201801

main87915-52250-G0iNCP145,NSP141..SPADE..CBU201507-201712

main87915-52250-H0iNCP145,NSP141..PORTE..CBU201712-201801

main87915-52250-J0iNCP145,NSP141..(F,G,X,Y)..CBU201507-201607

main87915-52250-J2supersedes 87915-52251-J2iNCP145,NSP141..CBU201712-201801

main87915-52251-A0iNCP145,NSP141..(G,X,Y)..CBU;NCP145,NSP141..SPADE..F..CBU; NCP145,NSP141..PORTE..F..CBU201801-202012

main87915-52251-B0iNCP145,NSP141..CBU201801-202012

main87915-52251-C0iNCP145,NSP141..CBU201801-201907

main87915-52251-C1iNCP145,NSP141..SPADE..CBU201801-202012

main87915-52251-C3iNCP145,NSP141..(G,X,Y)..CBU; NCP145,NSP141..F..CBU201811-202012

main87915-52251-D0iNCP145,NSP141..SPADE..F..CBU201811-201907

main87915-52251-D1iNCP145,NSP141..SPADE..CBU201801-202012

main87915-52251-D2iNCP145,NSP141..PORTE..CBU201801-202012

main87915-52251-E0iNCP145,NSP141..SPADE..F..CBU201811-201907

main87915-52251-E1iNCP145,NSP141..PORTE..CBU201801-202012

main87915-52251-E3iNCP145,NSP141..SPADE..F..CBU201811-201907

main87915-52251-E4iNCP145,NSP141..PORTE..CBU201907-202012

main87915-52251-F2iNCP145,NSP141..SPADE..CBU201801-202012

main87915-52251-H0iNCP145,NSP141..PORTE..CBU201801-202012

main87915-52251-J2iNCP145,NSP141..SPADE..F..CBU201811-201907

main87915-52251-J5iNCP145,NSP141..PORTE..CBU201907-202012

main87915-52260iNCP145,NSP141..SPADE..(F,G,X,Y)..CBU201507-201607

main87915-52261iNCP145,NSP141..SPADE..CBU201803-201907

87916BEZEL, OUTER MIRROR

main87916-52030iNCP14#,NSP140..CBU201207-201507

main87916-52040iNCP145,NSP141..CBU201507

87931OUTER MIRROR, RH

main87931-12J70supersedes 87931-12K10iNCP14#,NSP140..CBU201207-201507

main87931-52F50iNCP145,NSP141..SPADE..F..CBU201811-201907

main87931-52F60iNCP145,NSP141..SPADE..(F,G,X,Y)..CBU201507-201607

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-52E60supersedes 87940-52E50iNCP14#,NSP140..CBU201207-201507

main87940-52F40iNCP145,NSP141..SPADE..F..CBU201811-201907

main87940-52F50iNCP145,NSP141..SPADE..F..CBU201811-201907

87945COVER, OUTER MIRROR, LH

main87945-33020-A1iNCP14#,NSP140..CBU201207-201507

WHITE PEARL CS.,070

main87945-33020-B0iNCP14#,NSP140..CBU201207-201507

SILVER ME.,1F7

main87945-33020-C1iNCP14#,NSP140..CBU201207-201507

BLACK MC.,209

main87945-33020-D1iNCP14#,NSP140..CBU201207-201507

SUPER RED 5,3P0

main87945-33020-E3iNSP140..V201207-201404

DK. BROWN M.M.,4U3

main87945-33020-E4iNCP14#,NSP140..CBU201207-201507

CREAM BEIGE,4V9

main87945-33020-G1iNCP14#,NSP140..CBU201207-201507

AIR GREEN M.M.,6W1

main87945-33020-G2iNCP14#,NSP140..CBU201207-201507

CITRUS M.M.,6W2

main87945-33020-J5iNCP14#,NSP140..CBU201207-201507

LT.BLUE M.M.,8S1

main87945-33020-K0iNCP14#,NSP140..CBU201207-201507

DK.VIOLET M.M.,9AF

main87945-52250-E0supersedes 87945-52251-E0iNCP145,NSP141..(G,X,Y)..CBU;NCP145,NSP141..SPADE..F..CBU; NCP145,NSP141..PORTE..F..CBU201507-201712

main87945-52230iNCP14#..SPADE..F..CBU201404-201507

main87945-52250-A0supersedes 87945-52251-A0iNCP145,NSP141..PORTE..F..CBU; NCP145,NSP141..SPADE..F..CBU;NCP145,NSP141..(G,V,X,Y)..CBU201507-201712

main87945-52250-B0iNCP145,NSP141..CBU201507-201712

main87945-52250-C0iNCP145,NSP141..CBU201507-201712

main87945-52250-C1iNCP145,NSP141..CBU201607-201712

main87945-52250-D0supersedes 87945-52251-D0iNCP145,NSP141..(F,G,X,Y)..CBU201507-201712

main87945-52250-D1supersedes 87945-52251-D1iNCP145,NSP141..SPADE..(F,G,X,Y)..CBU201507-201712

main87945-52250-D2iNCP145,NSP141..PORTE..CBU201507-201712

main87945-52250-E1supersedes 87945-52251-E1iNCP145,NSP141..PORTE..(F,G,X,Y)..CBU201507-201712

main87945-52250-E2iNCP145,NSP141..PORTE..CBU201607-201712

main87945-52250-F0iNCP145,NSP141..SPADE..(F,G,X,Y)..CBU201507-201712

main87945-52250-F1iNCP145,NSP141..PORTE..(F,G,X,Y)..CBU201507-201607

main87945-52250-F2supersedes 87945-52251-F2iNCP145,NSP141..SPADE..CBU201712-201801

main87945-52250-G0iNCP145,NSP141..SPADE..CBU201507-201712

main87945-52250-H0iNCP145,NSP141..PORTE..CBU201712-201801

main87945-52250-J0iNCP145,NSP141..(F,G,X,Y)..CBU201507-201607

main87945-52250-J2supersedes 87945-52251-J2iNCP145,NSP141..CBU201712-201801

main87945-52251-A0iNCP145,NSP141..SPADE..F..CBU201811-201907

main87945-52251-B0iNCP145,NSP141..SPADE..F..CBU201811-201907

main87945-52251-C0iNCP145,NSP141..SPADE..F..CBU201811-201907

main87945-52251-C1iNCP145,NSP141..SPADE..CBU201801-202012

main87945-52251-C3iNCP145,NSP141..SPADE..F..CBU201811-201907

main87945-52251-D0iNCP145,NSP141..CBU201801-202012

main87945-52251-D1iNCP145,NSP141..SPADE..F..CBU201811-201907

main87945-52251-D2iNCP145,NSP141..PORTE..CBU201801-202012

main87945-52251-E0iNCP145,NSP141..PORTE..F..CBU201712-201809

main87945-52251-E1iNCP145,NSP141..PORTE..CBU201801-202012

main87945-52251-E3iNCP145,NSP141..F..CBU201811-202012

main87945-52251-E4iNCP145,NSP141..PORTE..CBU201907-202012

main87945-52251-F2iNCP145,NSP141..SPADE..F..CBU201811-201907

main87945-52251-H0iNCP145,NSP141..PORTE..CBU201801-202012

main87945-52251-J2iNCP145,NSP141..CBU201801-201907

main87945-52251-J5iNCP145,NSP141..PORTE..CBU201907-202012

main87945-52260iNCP145,NSP141..SPADE..(F,G,X,Y)..CBU201507-201607

main87945-52261iNCP145,NSP141..SPADE..CBU201803-201907

87946RETRACTOR, OUTER MIRROR, RH

main87946-52E70iNCP14#..SPADE..F..CBU201404-201507

main87946-52F50iNCP145,NSP141..SPADE..F..CBU201811-201907

main87946-52F60iNCP145,NSP141..SPADE..(F,G,X,Y)..CBU201507-201607

87961MIRROR OUTER, LH

main87961-12J70iNCP14#..SPADE..F..CBU201404-201507

main87961-52F40iNCP145,NSP141..SPADE..F..CBU201811-201907

main87961-52F50iNCP145,NSP141..SPADE..F..CBU201811-201907

87966RETRACTOR, OUTER MIRROR, LH

main87966-52E60iNCP14#..SPADE..F..CBU201404-201507

main87966-52F40iNCP145,NSP141..SPADE..F..CBU201811-201907

main87966-52F50iNCP145,NSP141..SPADE..(F,G,X,Y)..CBU201507-201607

9017906146

main90179-06146

9017906208

main90179-06208

91551A0620

main91551-A0620

14 parts on this diagram · 2 diagrams in section
