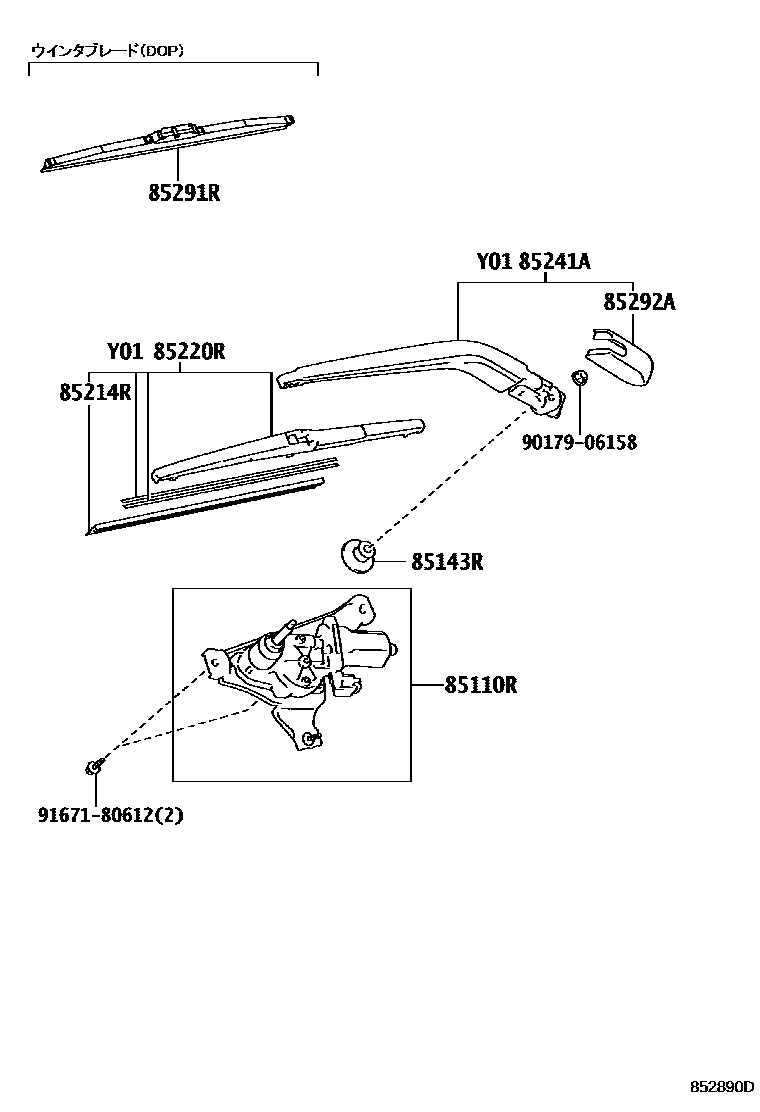

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-52250iNCP14#,NSP140..CBU201207-201507

85143RGROMMET, REAR WIPER MOTOR

main85143-52020iNCP14#,NSP140..CBU201207-201507

85214RRUBBER, REAR WIPER

main85214-30280iNCP14#,NSP140..CBU201207-201507

85220RBLADE ASSY, REAR WIPER

main85242-52100iNCP14#,NSP140..CBU201207-201507

85241AARM, REAR WIPER

main85241-52210iNCP14#,NSP140..CBU201207-201507

85291RBLADE,REAR WIPER, WINTER

main85291-52120iNCP14#,NSP140..CBU201207-201507

85292ACAP, REAR WIPER ARM HEAD

main85292-42010iNCP14#,NSP140..CBU201207-201507

9017906158

main90179-06158

9167180612

main91671-80612

9 parts on this diagram · 1 diagram in section
