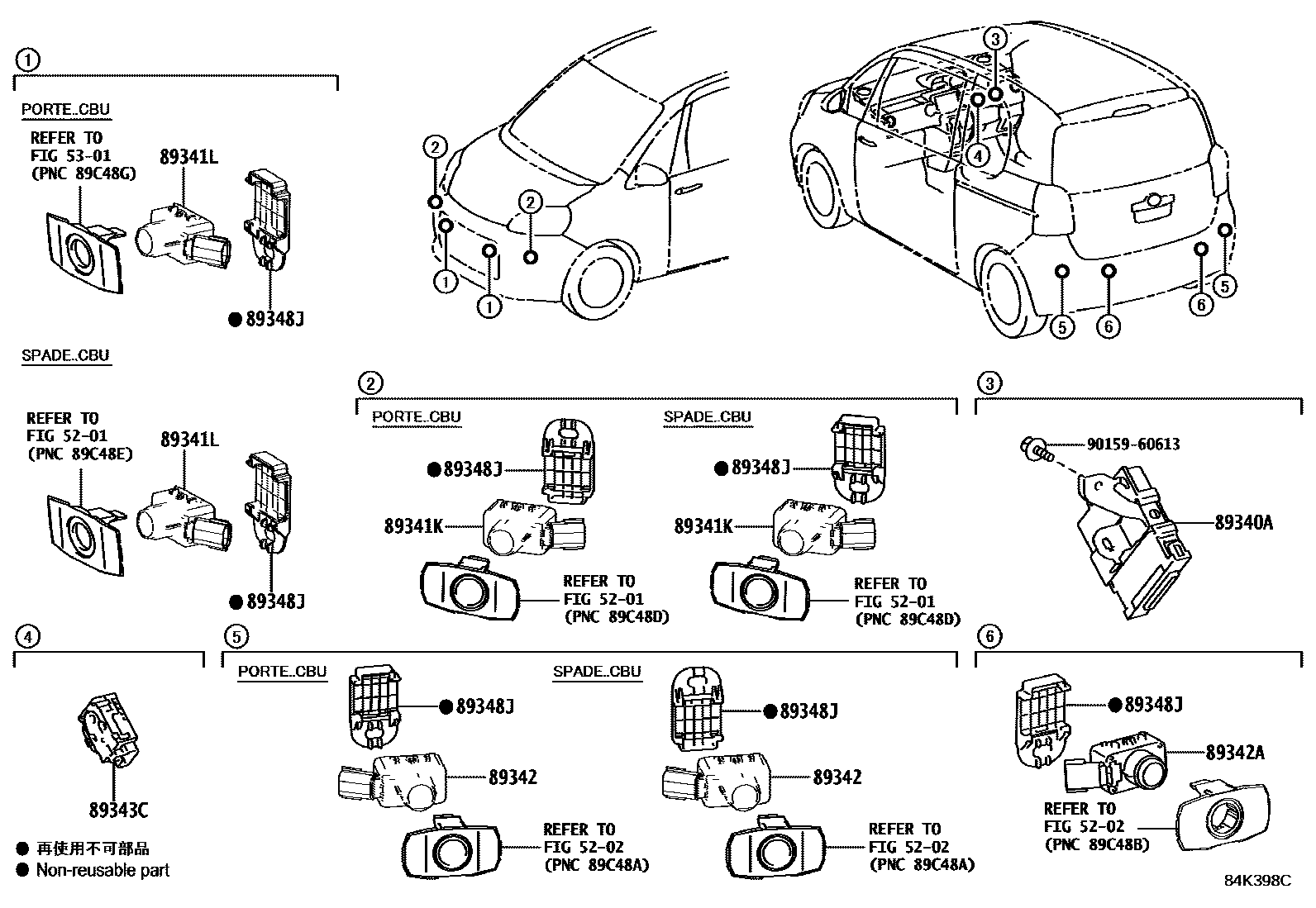

CLEARANCE & BACK SONAR

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

5301RADIATOR GRILLE

→ Go to FIG 53-01

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-52130iNCP145,NSP141..PORTE..CBU201907

main89340-52140iNCP145,NSP141..SPADE..CBU201907

89341KSENSOR, ULTRASONIC, FRONT CORNER

main89341-33220-A5×2iNCP145,NSP141..CBU201907-202012

main89341-33220-B0×2iNCP145,NSP141..CBU201907-202012

main89341-33220-C1×2iNCP145,NSP141..SPADE..CBU201907-202012

main89341-33220-C5×2iNCP145,NSP141..(G,X,Y)..CBU;NCP145,NSP141..SPADE..F..CBU; NCP145,NSP141..PORTE..F..CBU201907-202012

main89341-33220-D4×2iNCP145,NSP141..SPADE..CBU201907-202012

main89341-33220-F3×2iNCP145,NSP141..SPADE..CBU201907-202012

main89341-33220-H1×2iNCP145,NSP141..PORTE..CBU201907-202012

main89341-33220-L1×2iNCP145,NSP141..PORTE..(G,X,Y)..CBU; NCP145,NSP141..PORTE..F..CBU; NCP145,NSP141..SPADE..F..CBU201907-202012

main89341-33220-L6×2iNCP145,NSP141..F..CBU201907-202012

main89341-33220-L8×2iNCP145,NSP141..PORTE..CBU201907-202012

main89341-33220-P7×2iNCP145,NSP141..PORTE..CBU201907-202012

main89341-33220-R4×2iNCP145,NSP141..PORTE..(G,X,Y)..CBU; NCP145,NSP141..PORTE..F..CBU; NCP145,NSP141..SPADE..F..CBU201907-202012

main89341-33220-X4×2iNCP145,NSP141..CBU201907-202012

main89341-33220-X6×2iNCP145,NSP141..PORTE..CBU201907-202012

89341LSENSOR, ULTRASONIC, FRONT CENTER

main89341-33220-A5×2iNCP145,NSP141..SPADE..CBU201907

main89341-33220-B0×2iNCP145,NSP141..SPADE..CBU201907

main89341-33220-C1×2iNCP145,NSP141..SPADE..CBU201907

main89341-33220-C5×2iNCP145,NSP141..(G,X,Y)..CBU;NCP145,NSP141..SPADE..F..CBU; NCP145,NSP141..PORTE..F..CBU201907

main89341-33220-D4×2iNCP145,NSP141..SPADE..CBU201907

main89341-33220-F3×2iNCP145,NSP141..SPADE..CBU201907

main89341-33220-L1×2iNCP145,NSP141..SPADE..F..CBU201907

main89341-33220-L6×2iNCP145,NSP141..SPADE..F..CBU201907

main89341-33220-P6×2iNCP145,NSP141..PORTE..(G,X,Y)..CBU; NCP145,NSP141..PORTE..F..CBU201907

main89341-33220-P7×2iNCP145,NSP141..PORTE..CBU201907

main89341-33220-R4×2iNCP145,NSP141..SPADE..F..CBU201907

main89341-33220-X4×2iNCP145,NSP141..SPADE..CBU201907

89342SENSOR, ULTRASONIC, REAR CORNER

main89341-33220-A5×2iNCP145,NSP141..CBU201907-202012

main89341-33220-B0×2iNCP145,NSP141..CBU201907-202012

main89341-33220-C1×2iNCP145,NSP141..SPADE..CBU201907-202012

main89341-33220-C5×2iNCP145,NSP141..(G,X,Y)..CBU;NCP145,NSP141..SPADE..F..CBU; NCP145,NSP141..PORTE..F..CBU201907-202012

main89341-33220-D4×2iNCP145,NSP141..SPADE..CBU201907-202012

main89341-33220-F3×2iNCP145,NSP141..SPADE..CBU201907-202012

main89341-33220-H1×2iNCP145,NSP141..PORTE..CBU201907-202012

main89341-33220-L1×2iNCP145,NSP141..PORTE..(G,X,Y)..CBU; NCP145,NSP141..PORTE..F..CBU; NCP145,NSP141..SPADE..F..CBU201907-202012

main89341-33220-L6×2iNCP145,NSP141..F..CBU201907-202012

main89341-33220-L8×2iNCP145,NSP141..PORTE..CBU201907-202012

main89341-33220-P7×2iNCP145,NSP141..PORTE..CBU201907-202012

main89341-33220-R4×2iNCP145,NSP141..PORTE..(G,X,Y)..CBU; NCP145,NSP141..PORTE..F..CBU; NCP145,NSP141..SPADE..F..CBU201907-202012

main89341-33220-X4×2iNCP145,NSP141..CBU201907-202012

main89341-33220-X6×2iNCP145,NSP141..PORTE..CBU201907-202012

89342ASENSOR, ULTRASONIC, REAR CENTER

main89341-33220-A5×2iNCP145,NSP141..CBU201907-202012

main89341-33220-B0×2iNCP145,NSP141..CBU201907-202012

main89341-33220-C1×2iNCP145,NSP141..SPADE..CBU201907-202012

main89341-33220-C5×2iNCP145,NSP141..(G,X,Y)..CBU;NCP145,NSP141..SPADE..F..CBU; NCP145,NSP141..PORTE..F..CBU201907-202012

main89341-33220-D4×2iNCP145,NSP141..SPADE..CBU201907-202012

main89341-33220-F3×2iNCP145,NSP141..SPADE..CBU201907-202012

main89341-33220-H1×2iNCP145,NSP141..PORTE..CBU201907-202012

main89341-33220-L1×2iNCP145,NSP141..PORTE..(G,X,Y)..CBU; NCP145,NSP141..PORTE..F..CBU; NCP145,NSP141..SPADE..F..CBU201907-202012

main89341-33220-L6×2iNCP145,NSP141..F..CBU201907-202012

main89341-33220-L8×2iNCP145,NSP141..PORTE..CBU201907-202012

main89341-33220-P7×2iNCP145,NSP141..PORTE..CBU201907-202012

main89341-33220-R4×2iNCP145,NSP141..PORTE..(G,X,Y)..CBU; NCP145,NSP141..PORTE..F..CBU; NCP145,NSP141..SPADE..F..CBU201907-202012

main89341-33220-X4×2iNCP145,NSP141..CBU201907-202012

main89341-33220-X6×2iNCP145,NSP141..PORTE..CBU201907-202012

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-48010iNCP145,NSP141..CBU201907

89348JCLIP, ULTRASONIC SENSOR

main89348-58130×8iNCP145,NSP141..CBU201907

9015960613

main90159-60613

11 parts on this diagram · 1 diagram in section
