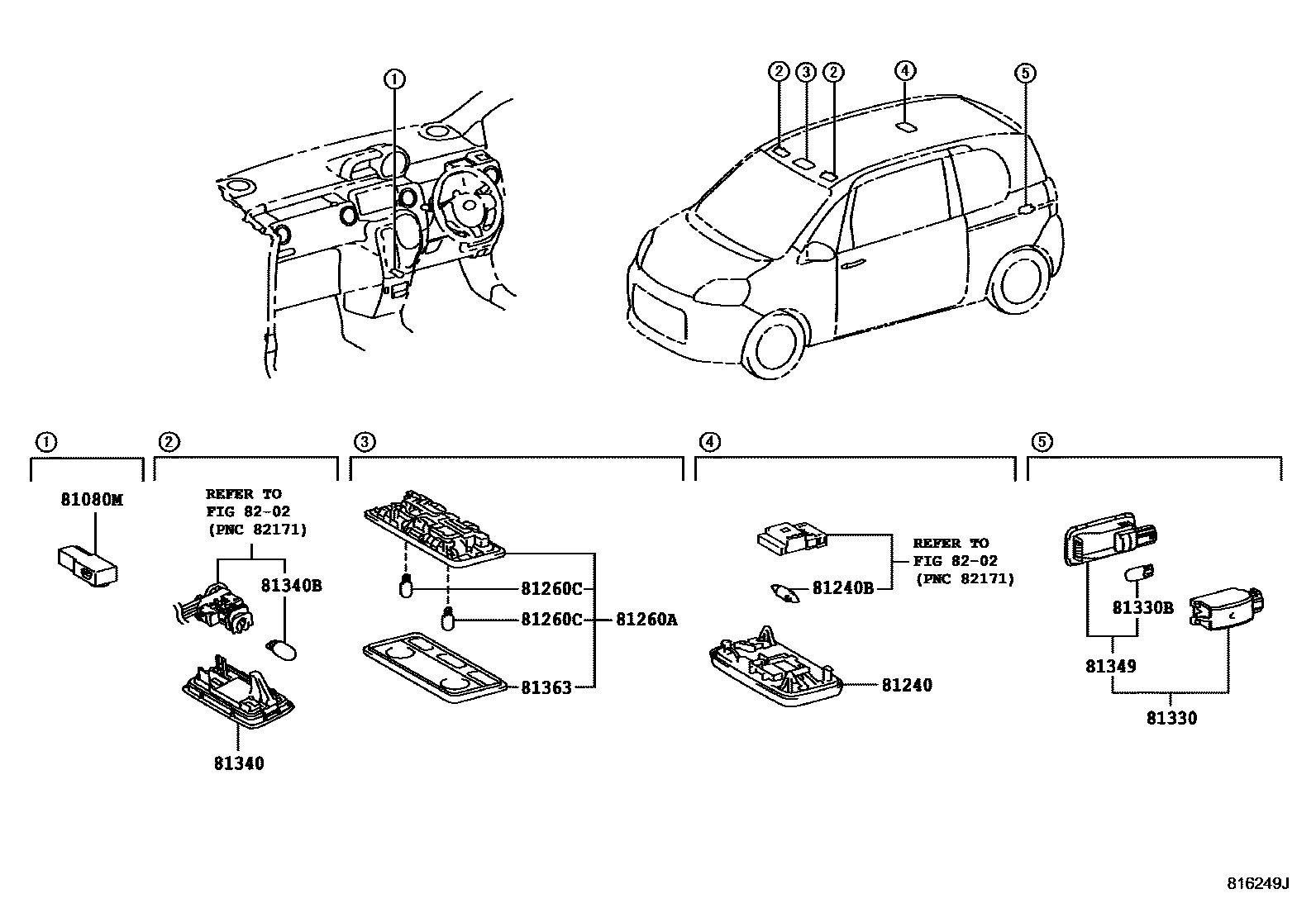

INTERIOR LAMP

81080MLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-48010iNCP145,NSP141..(F,G,X)..CBU201507-201707

main81080-52050iNCP145,NSP141..(F,G,X)..CBU201708

81240LAMP ASSY, ROOM, NO.1

main81240-35020-B0iNCP14#,NSP140..(G,V,X)..CBU; NCP14#..(F,Y)..CBU201207-201507

LT.GRAY,TRIM0#,4#; LT.GRAY,TRIM4#

main81240-35020-C0iNCP145,NSP141..SPADE..F..CBU201507-201610

BLACK,TRIM40

main81240-35020-C1iNCP145,NSP141..PORTE..F..CBU; NCP145,NSP141..SPADE..F..CBU201610-201905

BLACK,TRIM2#,40,42; BLACK,TRIM2#,42

main81240-42020-B0iNCP145,NSP141..(G,X,Y)..CBU; NCP145,NSP141..F..CBU201906

LT.GRAY,TRIM0#,40; LT.GRAY,TRIM4#

main81240-42020-C0iNCP145,NSP141..F..CBU201906

BLACK,TRIM2#,42

81240BBULB, ROOM LAMP, NO.1

main90981-14011iNCP14#,NSP140..CBU201207-201507

81260ALAMP ASSY, MAP

main81260-52120-B0iNCP14#,NSP140..(G,V,X)..CBU; NCP14#..(F,Y)..CBU201207-201507

LT.GRAY,TRIM0#,4#; LT.GRAY,TRIM4#

main81260-52120-C0iNCP145,NSP141..PORTE..F..CBU; NCP145,NSP141..SPADE..F..CBU201507

BLACK,TRIM2#,40,42; BLACK,TRIM2#,42

81260CBULB(FOR MAP LAMP)

main99132-12050×2iNCP14#,NSP140..CBU201207-201507

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81250-30210iNCP145,NSP141..(F,G,X,Y)..CBU201507

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050iNCP145,NSP141..(F,G,X,Y)..CBU201507

81340LAMP ASSY, VANITY

main81340-30110×2iNCP145,NSP141..(F,G,Y)..CBU201507

81340BBULB (FOR VANITY LAMP)

main90981-11062×2iNCP145,NSP141..(F,G,Y)..CBU201507

81349BODY, LUGGAGE COMPARTMENT LAMP

main81330-30100iNCP145,NSP141..(F,G,X,Y)..CBU201507

81363LENS, ROOM LAMP, OUTER

main81363-52010iNCP14#,NSP140..CBU201207-201507

8202WIRING & CLAMP

→ Go to FIG 82-02

12 parts on this diagram · 1 diagram in section
