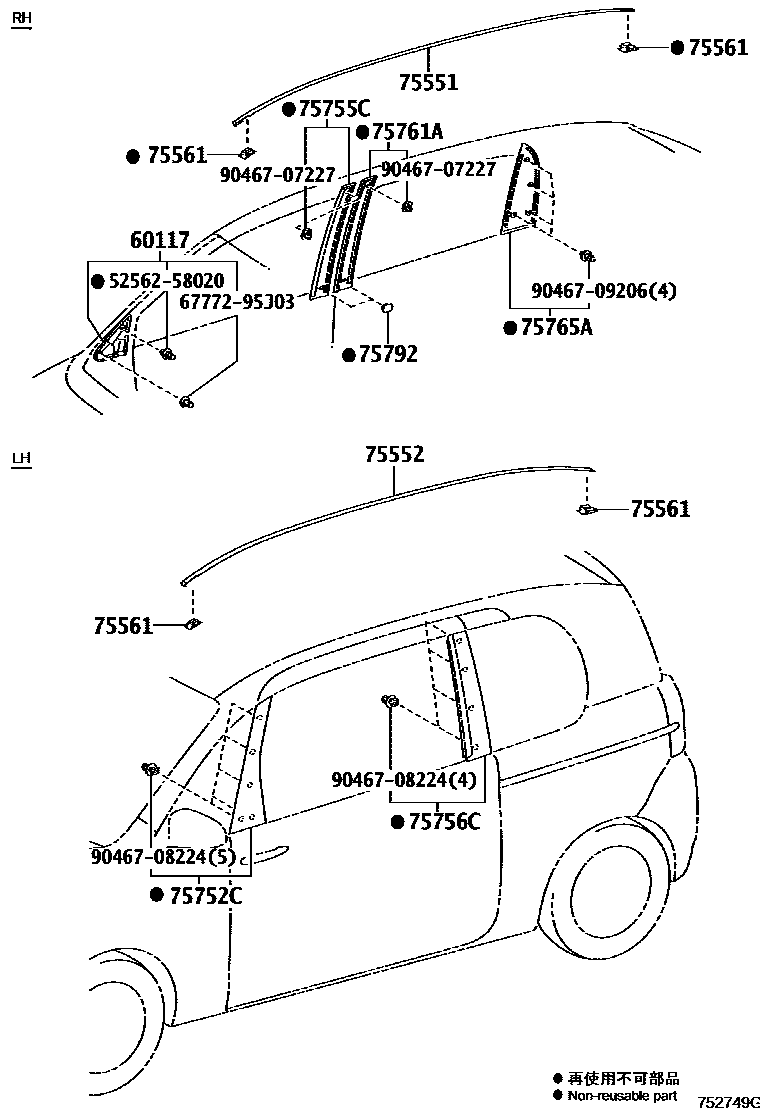

SIDE MOULDING

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-52091iNCP14#,NSP140..CBU201207-201507

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-52220iNCP14#,NSP140..CBU201207-201507

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-52200iNCP14#,NSP140..CBU201207-201507

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-52040×4iNCP14#,NSP140..CBU201207-201507

75752CMOULDING, FRONT DOOR WINDOW FRAME, FRONT LH

main75762-52040iNCP14#,NSP140..CBU201207-201507

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-52060iNCP14#,NSP140..CBU201207-201507

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75766-52050iNCP14#,NSP140..CBU201207-201507

75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75761-52030iNCP14#,NSP140..CBU201207-201507

75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH

main75765-52040iNCP14#,NSP140..CBU201207-201507

75792CLIP, DOOR WINDOW FRAME MOULDING

main75792-47010×2iNCP14#,NSP140..CBU201207-201507

5256258020RETAINER, REAR BUMPER, UPPER SIDE

main52562-58020

6777295J03WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-95J03

9046707227

main90467-07227

9046708224

main90467-08224

9046709206

main90467-09206

15 parts on this diagram · 1 diagram in section
