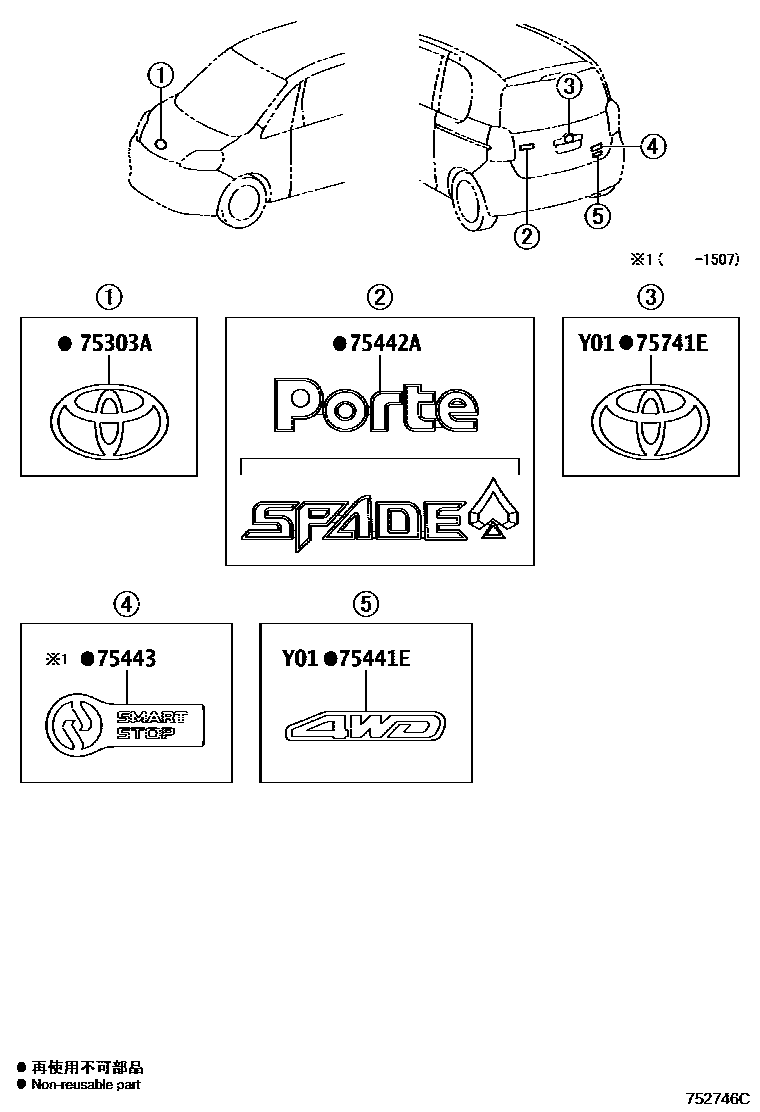

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75303AEMBLEM SUB-ASSY, HOOD

main90975-02061iNCP14#,NSP140..SPADE..CBU201207-201507

main90975-02064iNCP14#,NSP140..PORTE..CBU201207-201507

75441EPLATE, BACK DOOR NAME, NO.1

main75441-16320iNCP145..CBU201507

75442APLATE, BACK DOOR NAME, NO.2

main75442-52430iNCP14#,NSP140..PORTE..CBU201207-201507

main75442-52440iNCP14#,NSP140..SPADE..CBU201207-201507

75443PLATE, BACK DOOR NAME, NO.3

main75443-52230iNSP140..V;NCP141..CBU; NSP140..X..CBU201207-201507

75741EEMBLEM, SYMBOL

main90975-02061iNCP14#,NSP140..CBU201207-201507

5 parts on this diagram · 1 diagram in section
