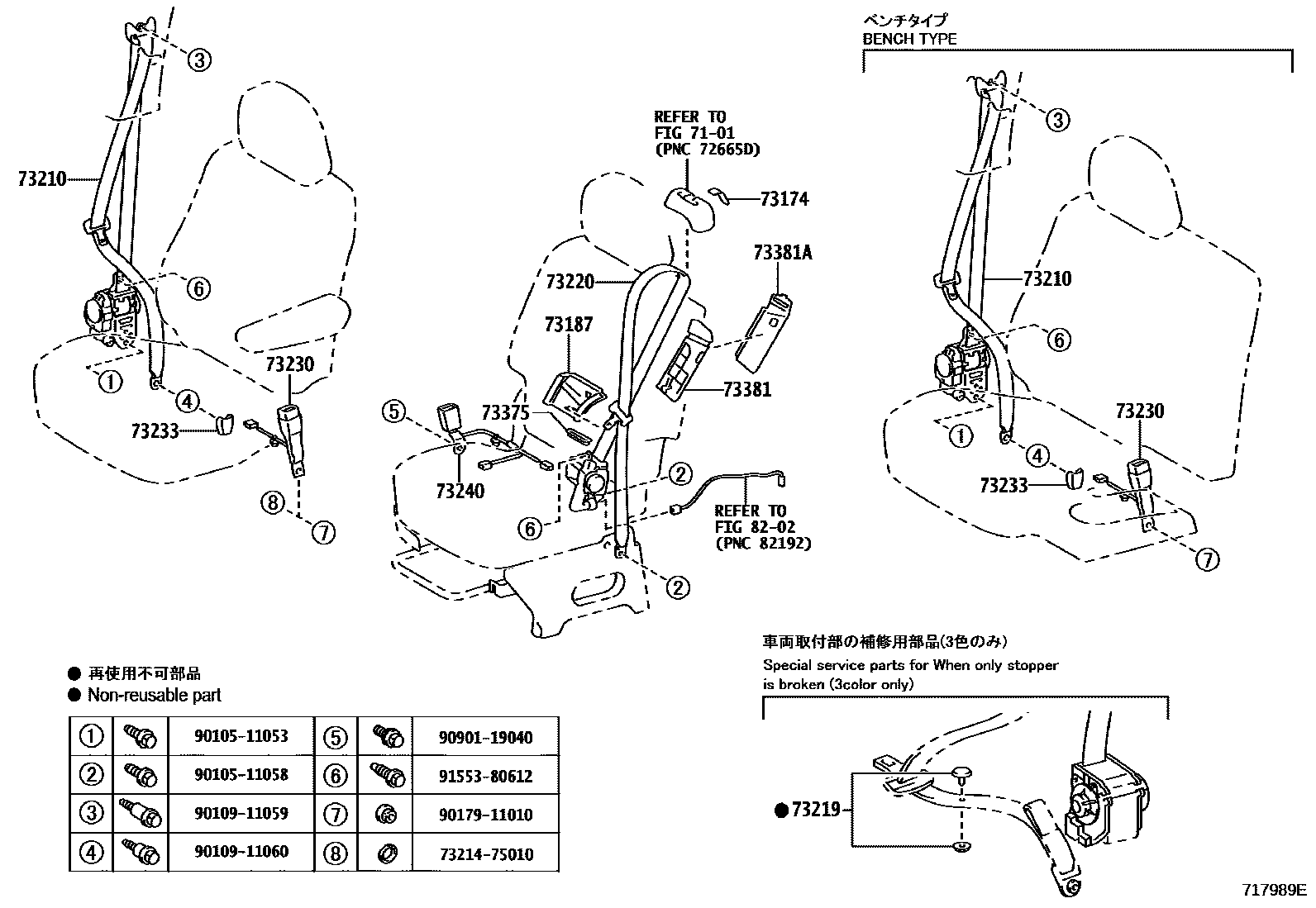

SEAT BELT & CHILD RESTRAINT SEAT

0001 1������� 0002 1������� ������� ��� 0003 1����������������� 0004 1������������ 0006 1

7101FRONT SEAT & SEAT TRACK

→ Go to FIG 71-01

73174COVER, FRONT SEAT BELT HOLE, LH

main73173-52020-A0iNCP14#..(F,Y)..CBU201207-201507

FROMAGE,TRIM0#

main73173-52020-C0iNCP145,NSP141..(G,X)..CBU; NCP145,NSP141..F..CBU; NCP145,NSP141..V,Y201507

BLACK,TRIM0#,4#; BLACK,TRIM2#,4#; BLACK,TRIM4#

main73173-52020-E0iNCP145,NSP141..F..CBU201712

PLUM,TRIM0#

73187GUIDE, FRONT SEAT SHOULDER BELT

main73187-52010iNCP14#,NSP140..CBU201207-201507

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-52850-B0iNCP14#..(F,Y)..CBU201207-201507

GREGE/LT.GRAY/FROMAGE,TRIM0#

main73210-52850-B1iNCP14#,NSP140..CBU201207-201507

BLACK/LT.GRAY/BLACK,TRIM4#

main73210-52850-C0iNCP145,NSP141..SPADE..F..CBU201507-201607

BLACK,TRIM40

main73210-52851-B0iNCP145,NSP141..F..CBU201607

GREGE/LT.GRAY/FROMAGE,TRIM0#

main73210-52851-B1iNCP145,NSP141..(G,X,Y)..CBU; NCP145,NSP141..F..CBU201607

BLACK/LT.GRAY/BLACK,TRIM4#; BLACK/LT.GRAY/BLACK,TRIM40

main73210-52851-C0iNCP145,NSP141..PORTE..F..CBU; NCP145,NSP141..SPADE..F..CBU201607

BLACK,TRIM2#,40,42; BLACK,TRIM2#,42

73219STOPPER, TONGUE PLATE

main73219-33010iNCP14#,NSP140..CBU201207-201507

main73219-33020iNCP145,NSP141..CBU201507

main73219-33030iNCP145,NSP141..CBU201507

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-52840-A0iNCP14#..(F,Y)..CBU201207-201210

GREGE/FROMAGE,TRIM0#

main73220-52840-C0iNCP14#,NSP140..CBU201207-201210

BLACK/BLACK,TRIM4#

main73220-52841-A0iNCP145,NSP141..(G,X)..CBU; NCP145,NSP141..F..CBU201507-201607

GREGE/FROMAGE,TRIM0#; GREGE/FROMAGE,TRIM00

main73220-52841-C0iNCP145,NSP141..(F,V,Y)..CBU; NCP145,NSP141..(G,X)..CBU201507-201607

BLACK/BLACK,TRIM00,4#; BLACK/BLACK,TRIM4#

main73220-52842-A0iNCP145,NSP141..F..CBU201607

GREGE/FROMAGE,TRIM0#

main73220-52842-C0iNCP145,NSP141..(G,X,Y)..CBU; NCP145,NSP141..F..CBU201607

BLACK/BLACK,TRIM2#,4#; BLACK/BLACK,TRIM4#

main73260-52160-B0iNSP141..F..CBU; NSP141..X..CBU201507

main73260-52160-B1iNCP145..X..CBU; NCP145..X..CBU;NSP141..(F,X)..CBU; NSP141..F..CBU; NSP141..X..CBU201507

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-52B30-A0iNCP145,NSP141..(G,X)..CBU; NCP145,NSP141..F..CBU201507-201607

FROMAGE,TRIM0#; FROMAGE,TRIM00

main73230-52B30-C0iNCP145,NSP141..(F,V,Y)..CBU; NCP145,NSP141..(G,X)..CBU201507-201607

BLACK,TRIM00,4#; BLACK,TRIM4#

main73230-52B31-A0iNCP145,NSP141..F..CBU201607

FROMAGE,TRIM0#

main73230-52B31-C0iNCP145,NSP141..(G,X,Y)..CBU; NCP145,NSP141..F..CBU201607

BLACK,TRIM2#,4#; BLACK,TRIM4#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C0iNCP14#,NSP140..(G,V,X)..CBU; NCP14#..(F,Y)..CBU201207-201507

BLACK,TRIM0#,4#; BLACK,TRIM4#

main73233-60020-C1iNCP145,NSP141..(G,X,Y)..CBU; NCP145,NSP141..F..CBU201610

BLACK,TRIM0#,2#,4#; BLACK,TRIM4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-52070-A0iNCP14#..(F,Y)..CBU201207-201507

FROMAGE,TRIM0#

main73240-52070-C0iNCP145,NSP141..(F,V,Y)..CBU; NCP145,NSP141..(G,X)..CBU201507-201607

BLACK,TRIM00,4#; BLACK,TRIM4#

main73240-52100-A0iNCP145,NSP141..F..CBU201607

FROMAGE,TRIM0#

main73240-52100-C0iNCP145,NSP141..(G,X,Y)..CBU; NCP145,NSP141..F..CBU201607

BLACK,TRIM2#,4#; BLACK,TRIM4#

main73230-D1230-A2iNSP141..F..CBU; NSP141..X..CBU201607

main73230-D1230-C0iNCP145..X..CBU; NSP141..F..CBU; NSP141..X..CBU201507

main73240-D1030-A0iNSP141..F..CBU201512

main73240-D1030-C0iNCP145..X..CBU;NSP141..(F,X)..CBU201607

73375COVER, REAR SEAT SHOULDER BELT, LH

main73375-46010-A1iNCP145,NSP141..F..CBU201507-201712

FROMAGE,TRIM0#

main73375-46010-C0iNCP145,NSP141..(G,X)..CBU; NCP145,NSP141..F..CBU; NCP145,NSP141..V,Y201507

BLACK,TRIM0#,4#; BLACK,TRIM2#,4#; BLACK,TRIM4#

main73375-46010-E3iNCP145,NSP141..F..CBU201712

PLUM,TRIM0#

73381HOLDER, REAR SEAT BELT

main73381-52021iNCP145,NSP141..CBU201507

73381AHOLDER, REAR SEAT BELT NO.2

main73381-52031iNCP14#,NSP140..CBU201207-201507

8202WIRING & CLAMP

→ Go to FIG 82-02

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010511053

main90105-11053

9010511058

main90105-11058

9010911059

main90109-11059

9010911060

main90109-11060

9017911010

main90179-11010

9090119040

main90901-19040

9155380612

main91553-80612

21 parts on this diagram · 5 diagrams in section
