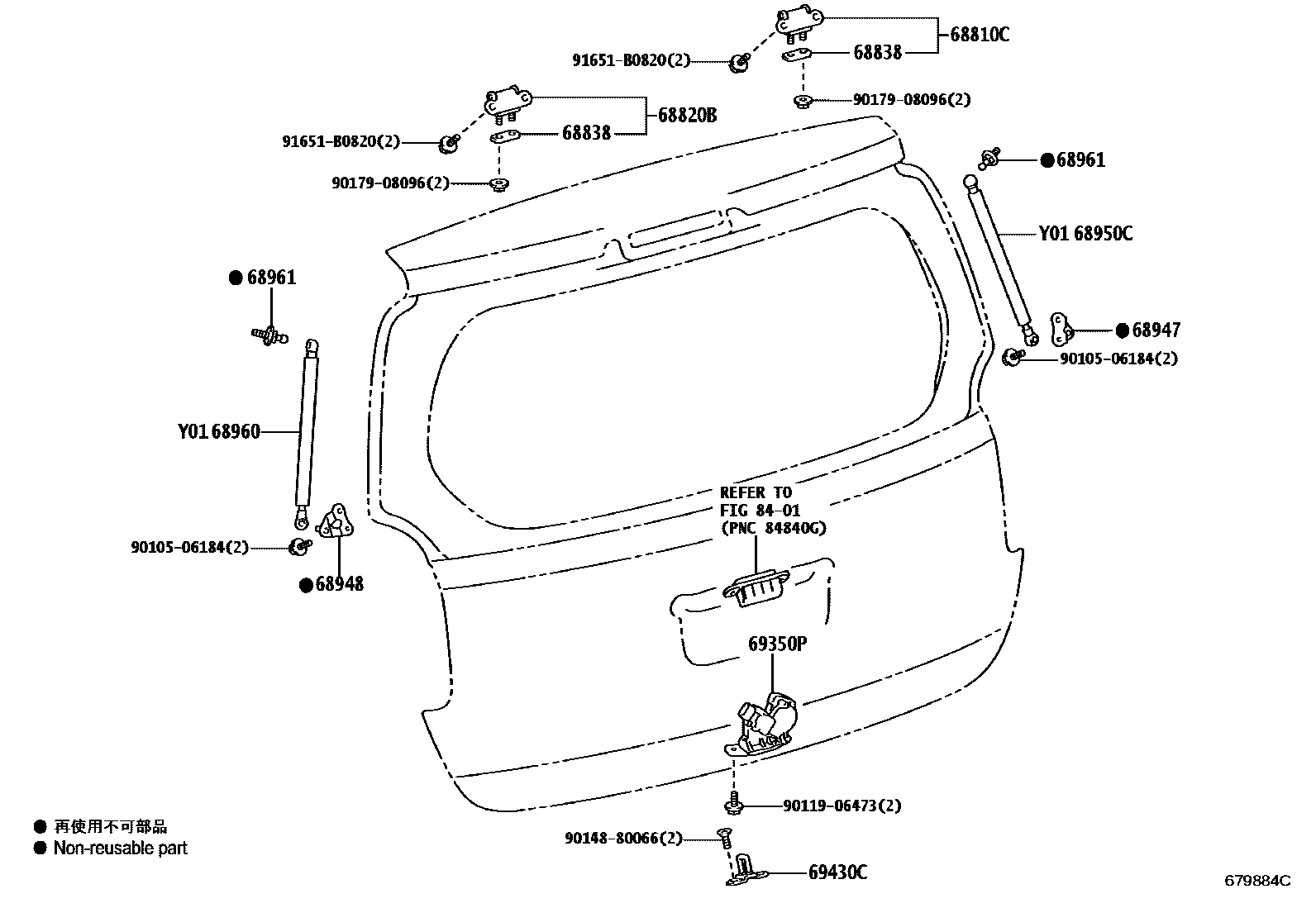

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-52100iNCP14#,NSP140..CBU201207-201507

68820BHINGE ASSY, BACK DOOR, LH

main68810-52100iNCP14#,NSP140..CBU201207-201507

68838PAD, BACK DOOR HINGE, NO.1

main68838-32010×2iNCP14#,NSP140..CBU201207-201507

main68838-52030×2iNCP14#,NSP140..CBU201207-201507

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-52030iNCP14#,NSP140..CBU201207-201309

main68947-52031iNCP14#,NSP140..CBU201310-201507

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-52030iNCP14#,NSP140..CBU201207-201309

main68948-52031iNCP14#,NSP140..CBU201310-201507

68950CSTAY ASSY, BACK DOOR, RH

main68950-52431iNCP14#,NSP140..CBU201207-201507

68960STAY ASSY, BACK DOOR, LH

main68960-52391iNCP14#,NSP140..CBU201207-201507

68961BOLT, BACK DOOR STAY

main68961-20140×2iNCP14#,NSP140..CBU201207-201507

main68961-52020×2iNCP145,NSP141..CBU201702

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-52350iNCP14#,NSP140..CBU201207-201507

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-52040iNCP14#,NSP140..CBU201207-201507

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506184

main90105-06184

9011906473

main90119-06473

9014880066

main90148-80066

9017908096

main90179-08096

91651B0820

main91651-B0820

16 parts on this diagram · 1 diagram in section
