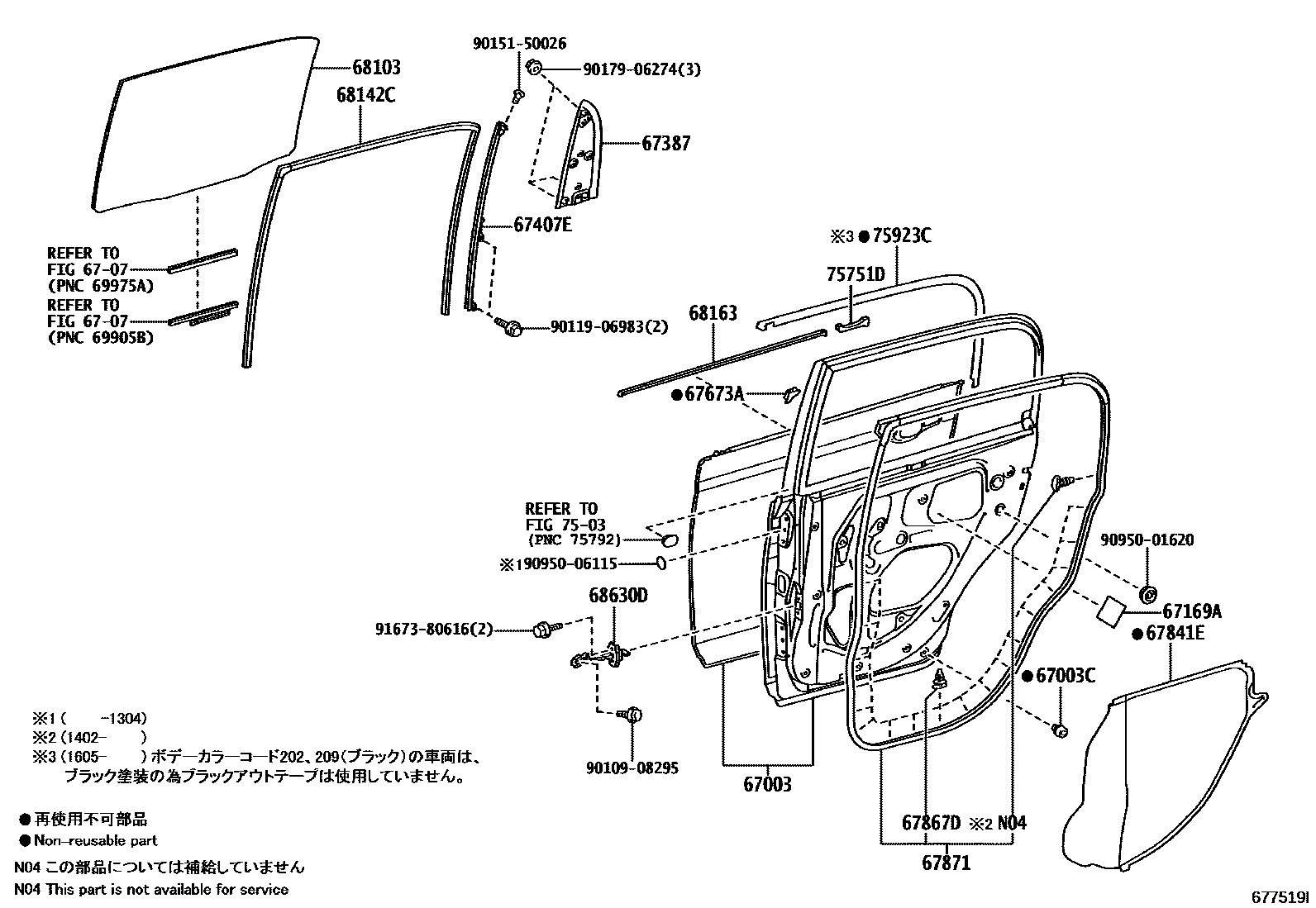

REAR DOOR PANEL & GLASS

0001 1������� 0002 1������

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-52480iNCP14#,NSP140..CBU201207-201209

main67003-52481iNCP14#,NSP140..CBU201209-201312

main67003-52482iNCP145,NSP141..CBU201507

67003CCUSHION, REAR DOOR PANEL

main90541-09143iNCP145,NSP141..CBU201507

6707REAR DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-07

67169ALINING, DOOR OUTSIDE PANEL REINFORCEMENT

main67169-44020iNCP14#,NSP140..CBU201207-201507

67387BRACKET, REAR DOOR INSIDE PANEL, NO.4

main67387-52020iNCP14#,NSP140..CBU201207-201507

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-52190iNCP14#,NSP140..CBU201207-201507

67673AGARNISH, REAR DOOR FRAME, RH

main67673-48010iNCP14#,NSP140..CBU201207-201507

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-52360iNCP14#,NSP140..CBU201207-201507

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150×17iNCP14#,NSP140..CBU201207-201507

67871WEATHERSTRIP, REAR DOOR, RH

main67871-52200iNCP14#,NSP140..CBU201207-201312

main67871-52201iNCP14#,NSP140..CBU201312-201402

main67871-52240iNCP14#,NSP140..CBU201402-201507

main67871-52241iNCP145,NSP141..CBU201511

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-52360iNCP14#,NSP140..CBU201207-201507

main68113-52390iNSP141..V201507-201606

main68113-52400iNCP145,NSP141..(F,G,X,Y)..CBU201507

68142CRUN, REAR DOOR GLASS, RH

main68142-52200iNCP14#,NSP140..CBU201207-201507

68163WEATHERSTRIP, REAR DOOR GLASS, OUTER

main68163-52010iNCP14#,NSP140..CBU201207-201507

68630DCHECK ASSY, REAR DOOR, RH

main68630-52140iNCP14#,NSP140..CBU201207-201507

7503SIDE MOULDING

→ Go to FIG 75-03

75751DMOULDING, REAR DOOR BELT, RH

main75721-52010iNCP14#,NSP140..CBU201207-201208

main75721-52011iNCP14#,NSP140..CBU201208-201507

75923CTAPE, BLACK OUT, NO.2 RH

main75923-52140iNCP14#,NSP140..(F,G,X,Y)..CBU201207-201208

main75923-52141iNCP14#,NSP140..(F,G,X,Y)..CBU201208-201507

9010908295

main90109-08295

9011906983

main90119-06983

9015150026

main90151-50026

9017906274

main90179-06274

9095001620

main90950-01620

9095006115

main90950-06115

9167380616

main91673-80616

24 parts on this diagram · 2 diagrams in section
