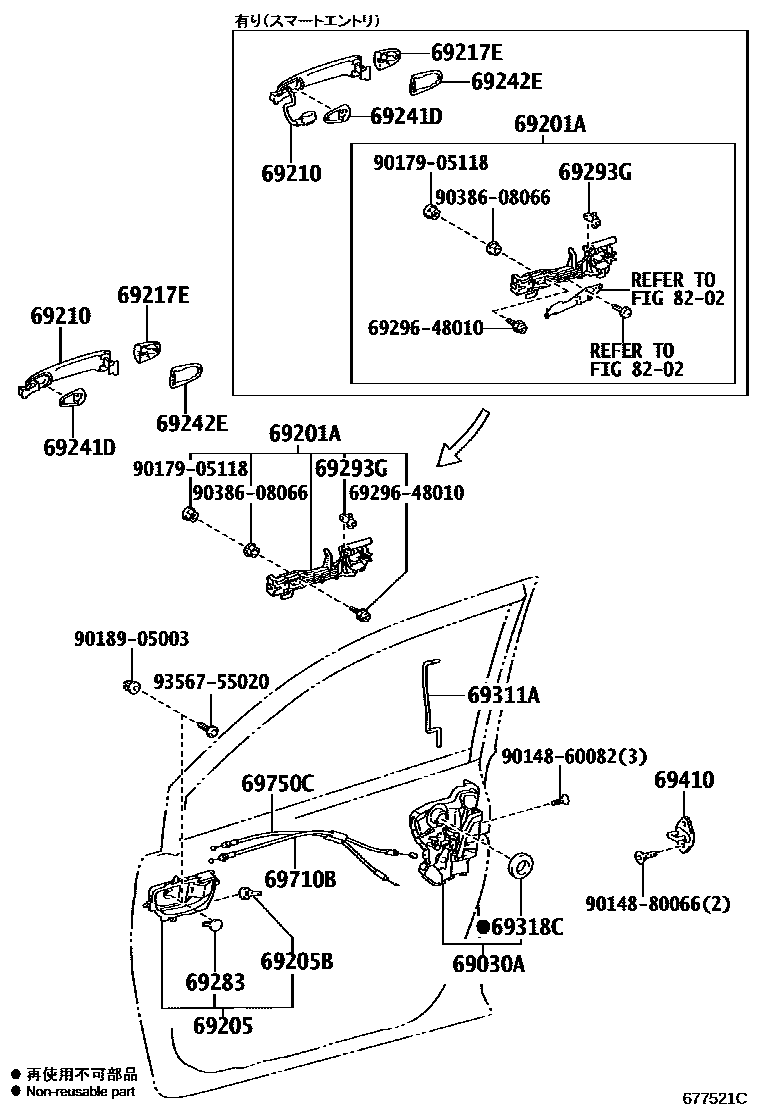

FRONT DOOR LOCK & HANDLE

0001 1��������� 0002 1����������

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-42210iNCP145,NSP141..CBU201507

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-30020iNCP14#,NSP140..CBU201207-201507

main69201-52160iNCP145,NSP141..CBU201712

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-52180-C0iNCP145,NSP141..F..CBU201907

BLACK,TRIM42

main69205-52180-E0iNCP14#,NSP140..(G,V,X)..CBU; NCP14#..(F,Y)..CBU201207-201507

PLUM,TRIM0#,4#; PLUM,TRIM4#

main69205-52170-C0iNCP145,NSP141..F..CBU; NCP145,NSP141..PORTE..F..CBU; NCP145,NSP141..SPADE..F..CBU201907

main69205-52170-E0iNCP145,NSP141..(G,X)..CBU; NCP145,NSP141..F..CBU; NCP145,NSP141..PORTE..F..CBU; NCP145,NSP141..SPADE..F..CBU; NCP145,NSP141..Y201907

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04027iNCP14#,NSP140..CBU201207-201507

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-52110-C0iNCP145,NSP141..F..CBU201907

BLACK,070 ,3P0 ,4V6 ,8W2

main69211-28070-P2iNSP141..PORTE..V; NSP141..SPADE..V201507-201606

SILVER ME.,070 ,1F7 ,209 ,3S7; SILVER ME.,070 ,1F7 ,209 ,6W2

main69210-52110-B1iNCP14#,NSP140..PORTE..(G,X,Y)..CBU; NCP14#,NSP140..SPADE..(G,X,Y)..CBU; NCP14#..PORTE..F..CBU; NCP14#..SPADE..F..CBU201207-201507

main69210-52120-B1iNCP145,NSP141..PORTE..(G,X,Y)..CBU; NCP145,NSP141..PORTE..F..CBU; NCP145,NSP141..SPADE..(G,X,Y)..CBU; NCP145,NSP141..SPADE..F..CBU201907

main69210-58010iNCP145,NSP141..CBU201607-201712

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-28010-C1iNCP145,NSP141..F..CBU201907

BLACK,070 ,3P0 ,4V6 ,8W2

main69217-28010-P2iNCP14#,NSP140..PORTE..CBU; NCP14#,NSP140..SPADE..CBU; NCP14#..PORTE..F..CBU; NCP14#..SPADE..F..CBU201207-201507

main69217-58010iNCP145,NSP141..(F,G,X,Y)..CBU201507-201607

main69250-30010-B2iNCP145,NSP141..PORTE..(G,X,Y)..CBU; NCP145,NSP141..PORTE..F..CBU; NCP145,NSP141..SPADE..(G,X,Y)..CBU; NCP145,NSP141..SPADE..F..CBU201607-201712

69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH

main69241-28060iNCP145,NSP141..CBU201507

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-60030iNCP14#,NSP140..CBU201207-201507

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-52010-C0iNCP145,NSP141..F..CBU201907

BLACK,TRIM42

main69283-52010-E0iNCP145,NSP141..F..CBU201907

PLUM,TRIM0#,40

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-12030iNCP145,NSP141..CBU201507

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-52220iNCP145,NSP141..CBU201507

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iNCP145,NSP141..CBU201507

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20110iNCP14#,NSP140..CBU201207-201507

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-52210iNCP14#,NSP140..CBU201207-201507

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-52140iNCP14#,NSP140..CBU201207-201507

8202WIRING & CLAMP

→ Go to FIG 82-02

6929648010SCREW, DOOR INSIDE HANDLE

main69296-48010

9014860082

main90148-60082

9014880066

main90148-80066

9017905118

main90179-05118

9018905003

main90189-05003

9038608066

main90386-08066

9356755020

main93567-55020

23 parts on this diagram · 2 diagrams in section
