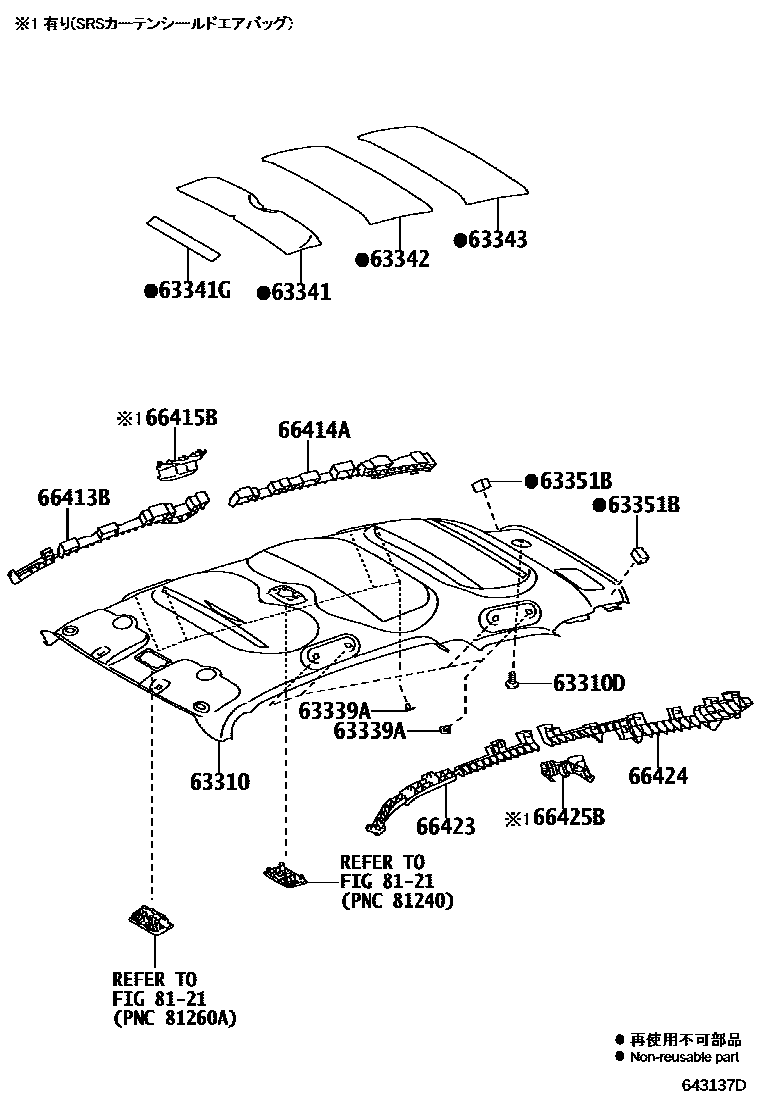

ROOF HEADLINING & SILENCER PAD

0001 1 0003 1��(�����)

63310HEADLINING ASSY, ROOF

main63310-52D80-B0iNCP14#,NSP140..(G,V,X)..CBU; NCP14#..(F,Y)..CBU201207-201208

LT.GRAY,TRIM0#,4#; LT.GRAY,TRIM4#

main63310-52D81-B0iNCP14#,NSP140..(G,V,X)..CBU; NCP14#..(F,Y)..CBU201208-201507

LT.GRAY,TRIM0#,4#; LT.GRAY,TRIM4#

main63310-52M00-B0iNCP145,NSP141..SPADE..F..CBU; NCP145,NSP141..Y; NSP141..G;NCP145..SPADE..G;NCP145..PORTE..(F,G);NSP141..PORTE..F..CBU201507-201607

LT.GRAY,TRIM0#,4#; LT.GRAY,TRIM0#,40; LT.GRAY,TRIM4#

main63310-52M00-B1iNCP145,NSP141..SPADE..F..CBU201507-201607

DK.GRAY,TRIM40

main63310-52M01-B0iNCP145,NSP141..F..CBU201607-201811

LT.GRAY,TRIM0#,4#

main63310-52M01-B1iNCP145,NSP141..F..CBU201811

DK.GRAY,TRIM2#,42

main63310-52M10-B0iNCP145,NSP141..X..CBU201507-201607

LT.GRAY,TRIM0#,4#

main63310-52M11-B0iNCP145,NSP141..X..CBU201607

LT.GRAY,TRIM4#

main63310-52M40-B0iNCP145,NSP141..PORTE..F..CBU201607-201712

main63310-52M40-B1iNCP145,NSP141..PORTE..F..CBU201712-201811

main63310-52M40-C0iNCP145,NSP141..SPADE..F..CBU201607-201712

main63310-52M40-C1iNCP145,NSP141..SPADE..F..CBU201712-201811

63310DCLIP, ROOF HEADLINING

main90467-05164-B0iNCP145,NSP141..SPADE..F..CBU201507-201607

LT.GRAY,TRIM0#,40

main90467-05164-C0iNCP145,NSP141..SPADE..F..CBU201507-201607

BLACK,TRIM40

main90467-05164-C7iNCP145,NSP141..PORTE..F..CBU; NCP145,NSP141..SPADE..F..CBU201811

BLACK,TRIM2#,40,42; BLACK,TRIM2#,42

63339ACOVER, ROOF HEADLINING SERVICE HOLE

main63339-52030-B0×4iNCP14#,NSP140..(V,X)..CBU; NCP14#..(F,Y)..CBU; NCP14#..G201207-201507

LT.GRAY,TRIM0#,4#; LT.GRAY,TRIM4#

63341PAD, ROOF SILENCER, NO.1

main63341-52330iNCP145,NSP141..CBU201507

63341GPAD, ROOF SILENCER

main63341-58040iNCP14#,NSP140..(F,V,X,Y)..CBU; NCP14#..G; NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU201207-201507

63342PAD, ROOF SILENCER, NO.2

main63342-52210iNCP145,NSP141..CBU201507-202012

63343PAD, ROOF SILENCER, NO.3

main63342-52210iNCP14#,NSP140..(F,V,X,Y)..CBU; NCP14#..G; NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU201207-201507

main63343-52130iNCP145,NSP141..(F,G,Y)..CBU201507-202012

63351BPAD, ROOF HEADLINING

main63351-52130×2iNCP14#,NSP140..CBU201207-201507

66413BSPACER, SIDE RAIL, FRONT RH

main66413-52260iNCP14#,NSP140..CBU201207-201507

66414ASPACER, SIDE RAIL, REAR RH

main66414-52370iNCP14#,NSP140..CBU201207-201507

66415BSPACER, SIDE RAIL, REAR NO.2 RH

main66415-52120iNCP145,NSP141..CBU; NCP145..X..CBU;NSP141..(F,X)..CBU201507

66423SPACER, SIDE RAIL, FRONT LH

main66423-52260iNCP145,NSP141..CBU201507

66424SPACER, SIDE RAIL, REAR LH

main66424-52360iNCP14#,NSP140..CBU201207-201507

66425BSPACER, SIDE RAIL, REAR NO.2 LH

main66425-52120iNCP14#,NSP140..CBU; NCP145..X..CBU;NCP141,NSP140..(F,X)..CBU201207-201507

8121INTERIOR LAMP

→ Go to FIG 81-21

15 parts on this diagram · 2 diagrams in section
