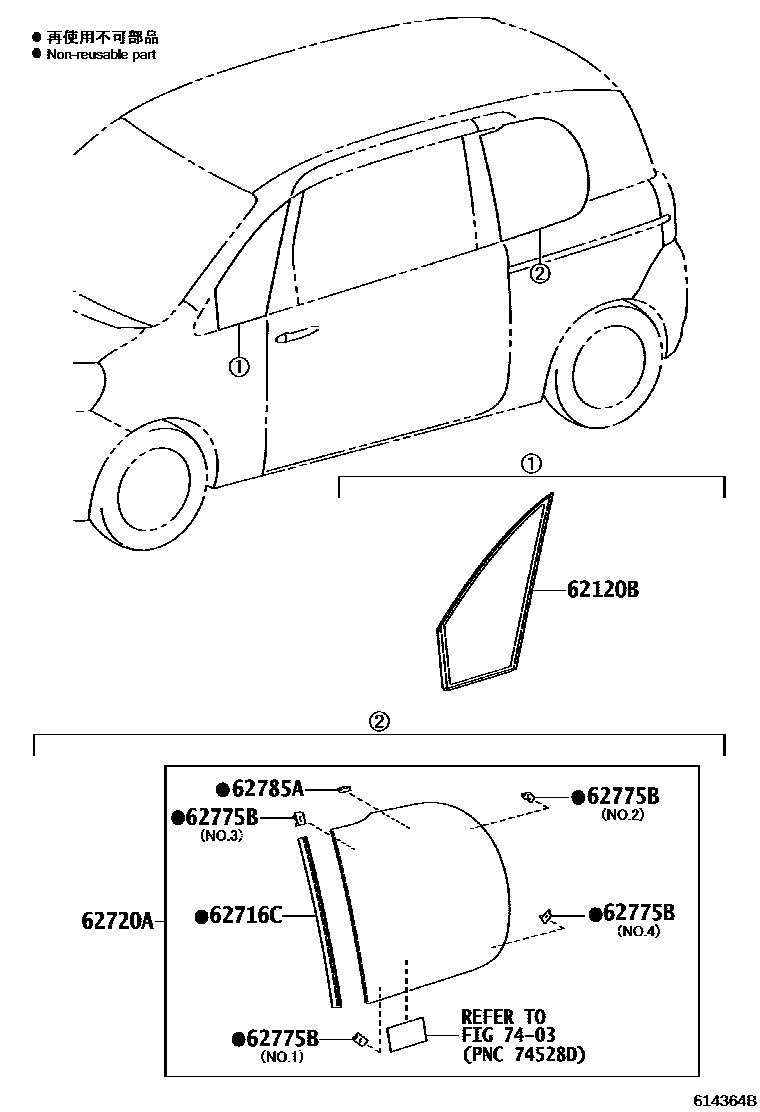

QUARTER WINDOW

62120BWINDOW ASSY, FRONT SIDE FIX, LH

main62120-52050iNCP14#,NSP140..(F,V,X,Y)..CBU201207-201507

main62120-52060iNCP14#..G201207-201507

main62120-52060iNCP14#..G201207-201507

main62120-52080iNCP145,NSP141..(F,V,X,Y)..CBU201507

main62120-52090iNCP145,NSP141..G201507

62716CDAM, QUARTER WINDOW GLASS ADHESIVE, LH

main62716-52050iNCP14#,NSP140..CBU201207-201507

62720AWINDOW ASSY, QUARTER, LH

main62720-52260iNCP14#,NSP140..CBU201207-201507

main62720-52280iNSP141..V201507-201606

main62720-52290iNCP145,NSP141..(F,G,X,Y)..CBU201507

62775BCLIP, QUARTER WINDOW, LH

main62775-52070iNCP14#,NSP140..CBU201207-201507

main62775-52080iNCP14#,NSP140..CBU201207-201507

main62775-52090iNCP14#,NSP140..CBU201207-201507

main62775-52100iNCP145,NSP141..CBU201207-201507

62785ASPACER, QUARTER WINDOW GLASS

main62785-16030iNCP145,NSP141..CBU201207-201507

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

6 parts on this diagram · 1 diagram in section
