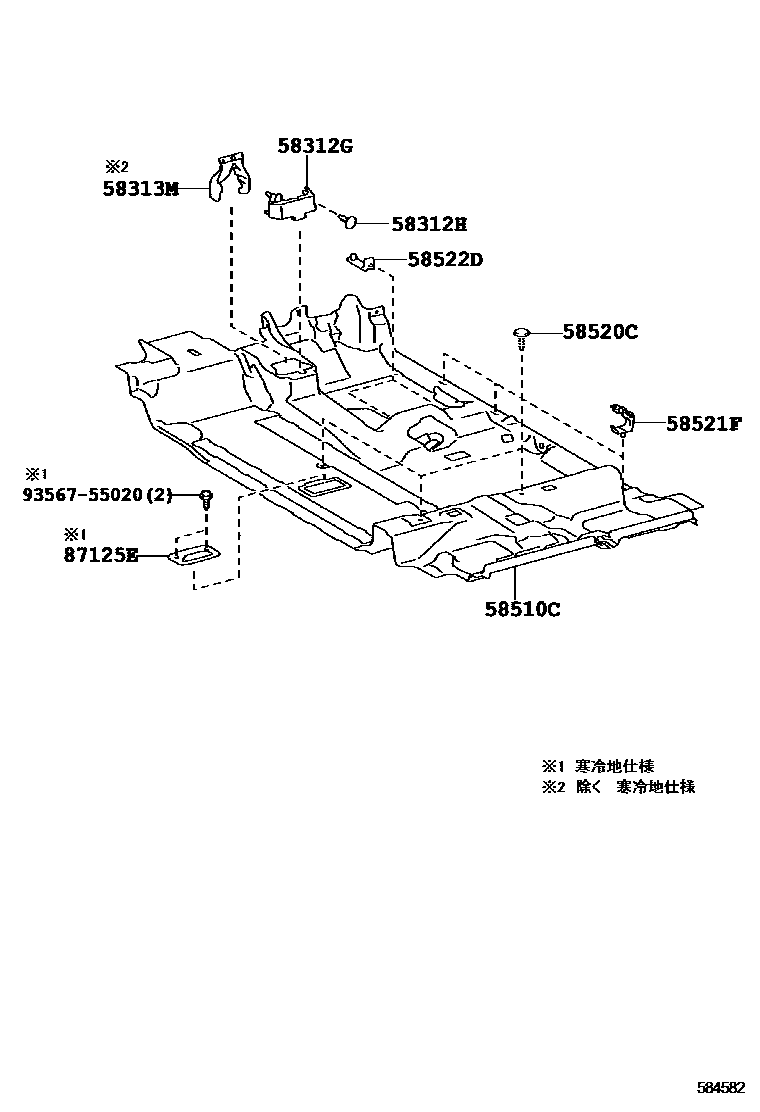

MAT & CARPET

0001 1��� ������ 0002 1��� ������ 0003 1��� ����� ����� 0004 1��� ����� �����

58312GBOARD, FLOOR, LWR

main58312-52020iNSP141..CBU201507

58312HCLIP, FLOOR BOARD

main90467-05161-B0iNSP141..CBU201507

DK.GRAY

58313MBOARD, FLOOR, LWR NO.2

main58313-52060iNCP145,NSP141..CBU201507

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-52L70-E0supersedes 58510-52L80-E0iNCP141..(F,Y)..CBU; NCP141..G201207-201507

main58510-52L90-E0iNCP145..X..CBU201207-201308

main58510-52L91-E0iNCP145..X..CBU201507

main58510-52M00-E0iNCP145..X..CBU201207-201308

main58510-52M01-E0iNCP145..X..CBU201607

main58510-52M10-E0iNCP141,NSP140..X..CBU201207-201507

main58510-52M20-E0iNCP141,NSP140..X..CBU201207-201507

main58510-5C740-E0supersedes 58510-5C791-E0iNCP145..(G,X)..CBU; NCP145..F,Y201207-201308

main58510-5C741-E0supersedes 58510-5C791-E0iNCP145..(G,X)..CBU; NCP145..F; NCP145..Y201507

main58510-5C800-E0supersedes 58510-5C810-E0iNCP141,NSP140..(V,X)..CBU201207-201507

main58510-5C820-E0iNCP141..F..CBU201207-201507

main58510-5C830-E0iNSP141..F..CBU201607

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-23×2iNCP145..(G,X,Y)..CBU; NCP145..F; NCP145..X..CBU; NSP141..(G,X,Y)..CBU; NSP141..F..CBU; NSP141..X..CBU201610

main90467-07049-C0×3iNCP141,NSP140..(G,V,X)..CBU; NCP141,NSP140..X..CBU; NCP141..(F,Y)..CBU; NCP141..F..CBU; NCP145..(G,X)..CBU; NCP145..F,Y; NCP145..X..CBU201207-201507

58521FHOOK, FLOOR CARPET

main58521-52050×3iNCP145,NSP141..CBU201507

58522DHOOK, FLOOR CARPET, NO.2

main58522-52030×2iNCP145,NSP141..CBU201507

87125EGRILLE, HEATER AIR OUTLET

main87125-28050-E2iNCP14#,NSP140..(G,V,X)..CBU; NCP14#,NSP140..X..CBU; NCP14#..(F,Y)..CBU; NCP141,NSP140..X..CBU; NCP141..F..CBU201207-201507

9356755020

main93567-55020

9 parts on this diagram · 4 diagrams in section
