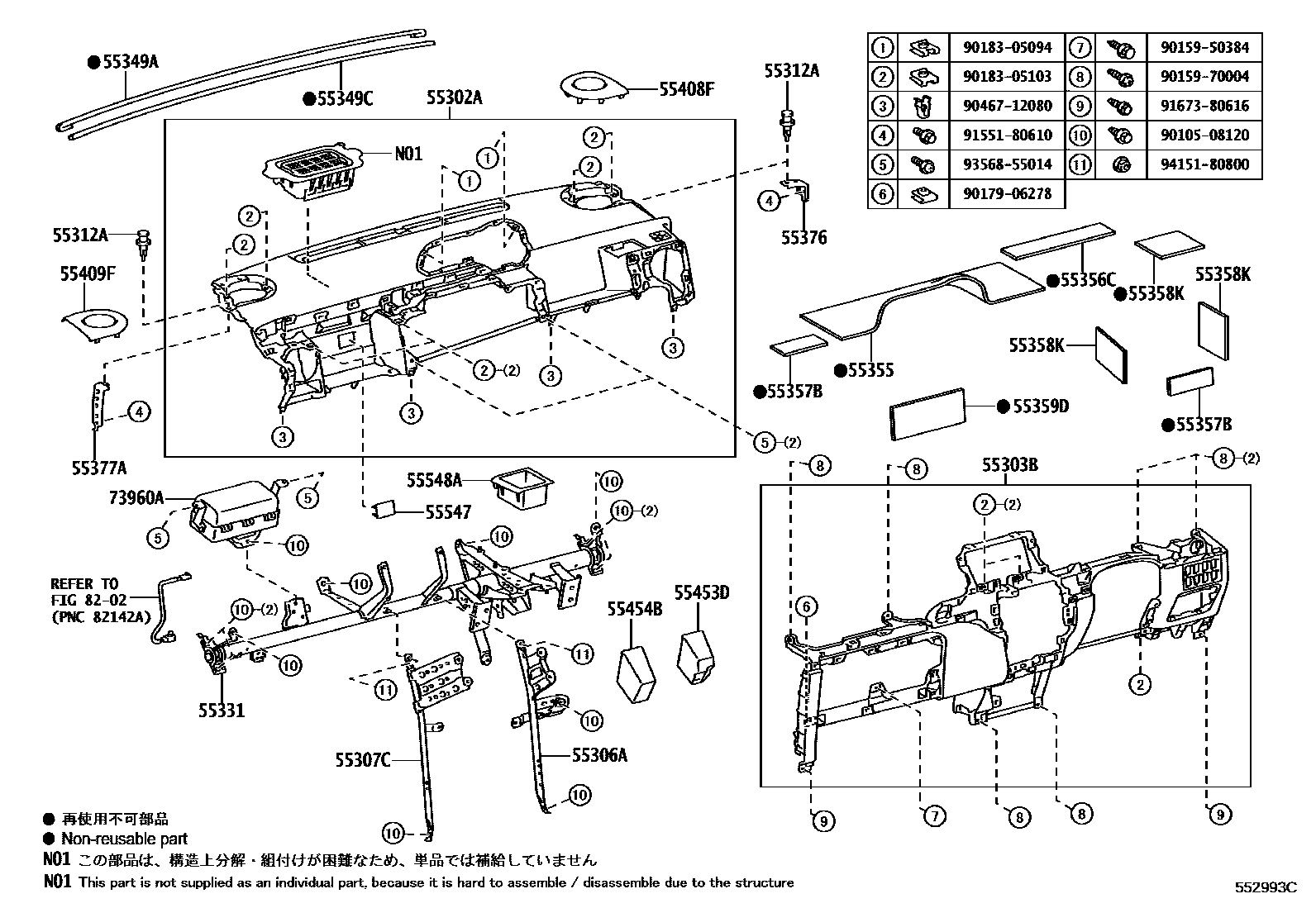

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1DRIVER SIDE 0006 1CENTER 0007 1PASSENGER SIDE 0008 1DRIVER SIDE 0009 1CENTER 0010 1PASSENGER SIDE

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-52180-C0iNCP145,NSP141..F..CBU201811

BLACK,TRIM2#,42

main55302-52180-E0iNCP145,NSP141..(G,X)..CBU; NCP145,NSP141..V,Y201507

PLUM,TRIM0#,4#; PLUM,TRIM4#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-52300-A0iNCP14#,NSP140..G,V; NCP14#,NSP140..X..CBU; NCP14#..(F,Y)..CBU201207-201305

FROMAGE,TRIM0#; FROMAGE,TRIM41; FROMAGE,TRIM41,43

main55303-52300-C0iNCP14#,NSP140..G,V; NCP14#,NSP140..X..CBU; NCP14#..(F,Y)..CBU201207-201305

BLACK,TRIM4#; BLACK,TRIM40; BLACK,TRIM40,42

main55303-52301-A0iNCP14#,NSP140..X..CBU; NCP14#..(F,Y)..CBU; NCP14#..G201305-201507

FROMAGE,TRIM0#; FROMAGE,TRIM41; FROMAGE,TRIM41,43

main55303-52301-C0iNCP14#,NSP140..(F,V,Y)..CBU; NCP14#,NSP140..X..CBU; NCP14#..G201305-201507

BLACK,TRIM4#; BLACK,TRIM40; BLACK,TRIM40,42

main55303-52302-A0iNCP145,NSP141..(G,X)..CBU; NCP145,NSP141..F..CBU201906

FROMAGE,TRIM0#; FROMAGE,TRIM41

main55303-52302-C0iNCP145,NSP141..(G,X)..CBU; NCP145,NSP141..F..CBU; NCP145,NSP141..Y201906

BLACK,TRIM2#,4#; BLACK,TRIM4#; BLACK,TRIM40

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-52310iNCP14#,NSP140..CBU201207-201507

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-52070iNCP14#,NSP140..CBU201207-201507

55312ACLIP, INSTRUMENT PANEL

main52161-16010×2iNCP14#,NSP140..CBU201207-201507

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-52700iNCP14#,NSP140..CBU201207-201507

main55330-52830iNCP145,NSP141..CBU201507-201607

main55330-52831iNCP145,NSP141..CBU201607-201712

main55330-52832iNCP145,NSP141..CBU201712

55349ACUSHION, INSTRUMENT PANEL

main55349-52210iNCP14#,NSP140..CBU201207-201504

main55349-52320iNCP14#,NSP140..CBU201505-201507

55349CCUSHION, INSTRUMENT PANEL

main55349-52220iNCP14#,NSP140..CBU201207-201504

main55349-52330iNCP14#,NSP140..CBU201505-201507

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-52220iNSP141..V201507

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-52210iNSP141..V201507

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-52180×2iNCP145,NSP141..CBU201507

55358KCUSHION, INSTRUMENT PANEL, NO.4

main55358-52150×3iNCP14#,NSP140..CBU201207-201507

55359DCUSHION, INSTRUMENT PANEL, NO.5

main55359-52120iNSP141..V201507

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-52110iNCP14#,NSP140..CBU201207-201507

55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2

main55377-52040iNCP14#,NSP140..CBU201207-201507

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55472-52040-C0iNCP145,NSP141..F..CBU201811

BLACK,TRIM2#,42

main55472-52040-E0iNCP14#,NSP140..(G,V,X)..CBU; NCP14#..(F,Y)..CBU201207-201507

PLUM,TRIM0#,4#; PLUM,TRIM4#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55473-52040-C0iNCP145,NSP141..F..CBU201811

BLACK,TRIM2#,42

main55473-52040-E0iNCP145,NSP141..(G,X)..CBU; NCP145,NSP141..V,Y201507

PLUM,TRIM0#,4#; PLUM,TRIM4#

55453DPAD, INSTRUMENT PANEL SAFETY, NO.1

main55453-52150iNCP145,NSP141..CBU201507

55454BPAD, INSTRUMENT PANEL SAFETY, NO.2

main55454-52140iNCP145,NSP141..CBU201507

55547COVER, REMOTE CONTROL MIRROR HOLE

main55547-28010-C0iNCP145,NSP141..F..CBU201811

BLACK,TRIM2#,42

main55547-28010-E6iNCP14#,NSP140..(G,V,X)..CBU; NCP14#..(F,Y)..CBU201207-201507

PLUM,TRIM0#,4#; PLUM,TRIM4#

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-52090-C0iNCP145,NSP141..F..CBU201811

BLACK,TRIM2#,42

main55548-52090-E0iNCP14#,NSP140..(G,V,X)..CBU; NCP14#..(F,Y)..CBU201207-201507

PLUM,TRIM0#,4#; PLUM,TRIM4#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-52200iNCP14#,NSP140..CBU201207-201507

main73960-52250iNCP145,NSP141..CBU201507

8202WIRING & CLAMP

→ Go to FIG 82-02

9010508120

main90105-08120

9015950384

main90159-50384

9015970004

main90159-70004

9017906278

main90179-06278

9018305094

main90183-05094

9018305103

main90183-05103

9046712080

main90467-12080

9155180610

main91551-80610

9167380616

main91673-80616

9356855014

main93568-55014

9415180800

main94151-80800

34 parts on this diagram · 10 diagrams in section
