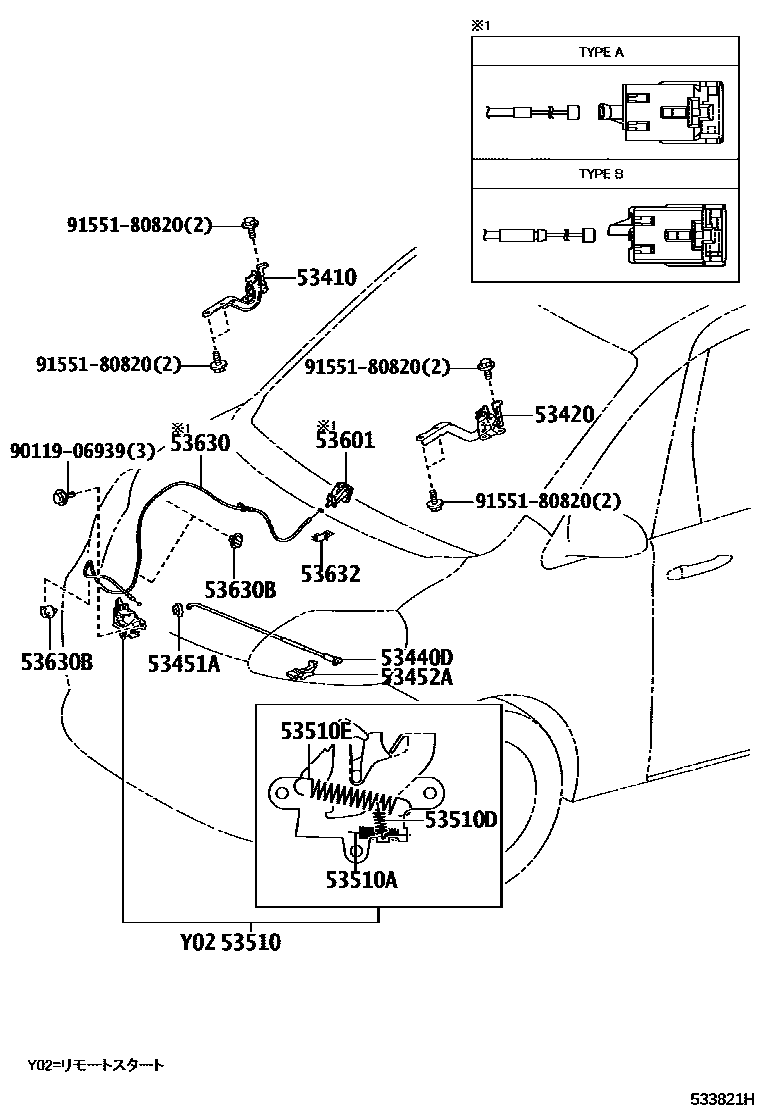

HOOD LOCK & HINGE

0001 1��(�������������) 0002 1��(�������������)

53410HINGE ASSY, HOOD, RH

main53410-52380iNCP14#,NSP140..CBU201207-201507

53420HINGE ASSY, HOOD, LH

main53420-52390iNCP145,NSP141..CBU201507

53440DSUPPORT ASSY, HOOD

main53440-52270iNCP145,NSP141..CBU201507

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15025iNCP145,NSP141..CBU201507

53452AHOLDER, HOOD STAY

main53452-52070iNCP14#,NSP140..CBU201207-201507

53510LOCK ASSY, HOOD

main53510-52680supersedes 53510-52690iNSP140..V;NCP14#..CBU; NSP140..X..CBU201207-201507

main53510-52690iNSP141..CBU201507

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iNCP14#,NSP140..CBU201207-201507

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iNCP145,NSP141..CBU201507

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-16077iNCP145,NSP141..CBU201507

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30100-E2iNCP145,NSP141..(G,X,Y)..CBU; NCP145,NSP141..F..CBU201811-202003

main53601-52010-E7iNCP145,NSP141..(G,X)..CBU; NCP145,NSP141..F..CBU; NCP145,NSP141..Y201507-201811

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-52180iNCP14#,NSP140..CBU201207-201507

main53630-52181iNCP145,NSP141..CBU201811-201902

main53630-52182iNCP145,NSP141..CBU201903-202003

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005×3iNCP14#,NSP140..CBU201207-201507

53632HOLDER, HOOD LOCK CONTROL CABLE

main53632-10010iNCP145,NSP141..CBU201707-201709

9011906939

main90119-06939

9155180820

main91551-80820

15 parts on this diagram · 2 diagrams in section
