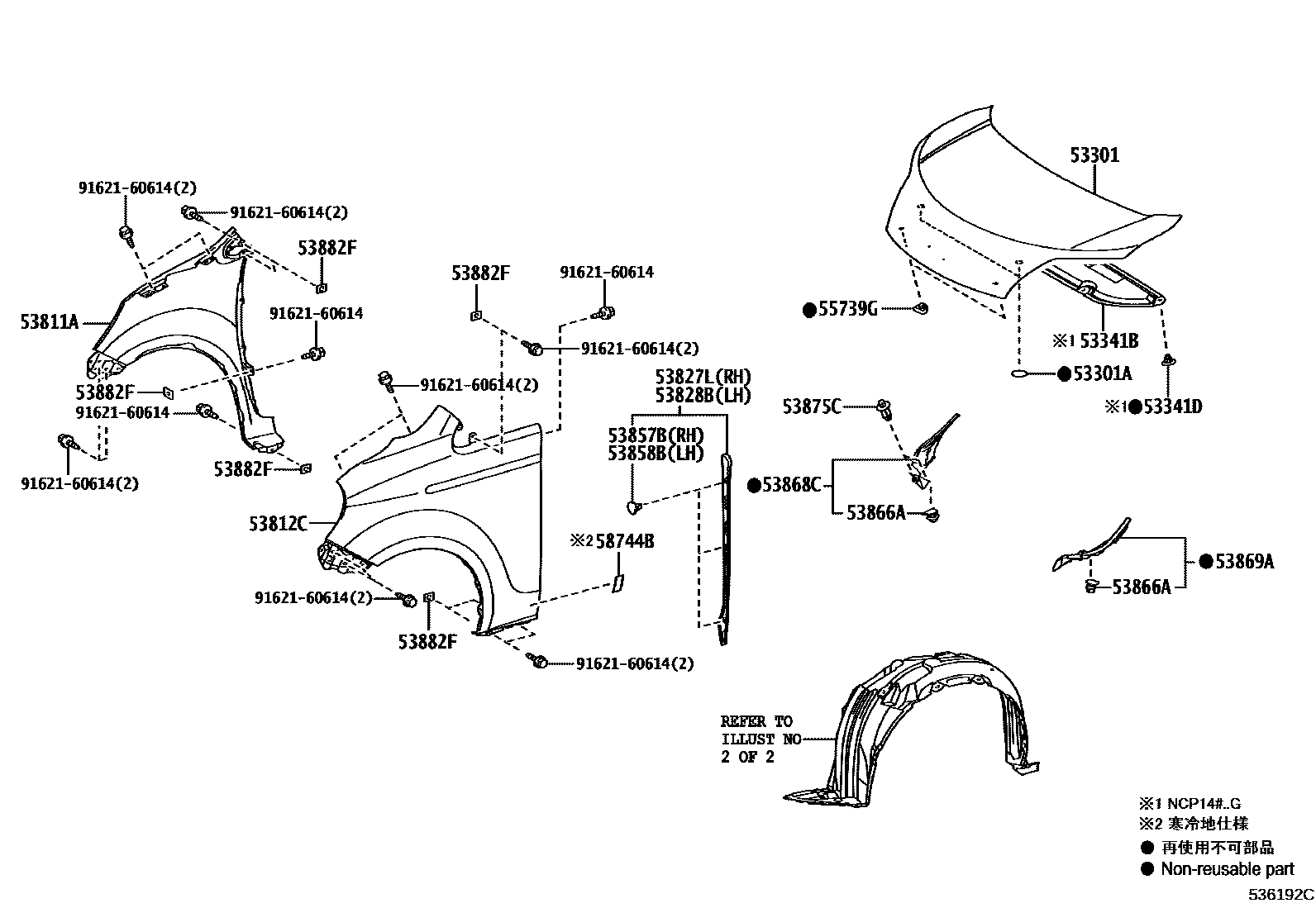

HOOD & FRONT FENDER

0001 1PORTE 0003 1PORTE 0004 1SPADE 0006 1SPADE 0007 1 0008 1

53301HOOD SUB-ASSY

main53301-52350iNCP145,NSP141..PORTE..CBU201207-201507

main53301-52360iNCP145,NSP141..SPADE..CBU201207-201507

53301APLUG, HOLE(FOR HOOD)

main90950-06124iNCP14#,NSP140..CBU201207-201507

53341BINSULATOR, HOOD

main53341-52220iNCP14#..G201207-201312

sub53341-52221

main53341-52221iNCP14#..G201401-201507

53341DCLIP(FOR HOOD INSULATER)

main90467-09050iNCP14#..G201207-201507

53811APANEL, FRONT FENDER, RH

main53811-52430iNCP14#,NSP140..PORTE..CBU201207-201507

main53811-52450iNCP14#,NSP140..SPADE..CBU201207-201507

53812CPANEL, FRONT FENDER, LH

main53812-52420iNCP145,NSP141..PORTE..CBU201207-201507

main53812-52440iNCP14#,NSP140..SPADE..CBU201207-201507

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-52180iNCP14#..CBU201207-201507

main53827-52180iNCP145,NSP141..CBU201507

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-52190iNCP14#,NSP140..CBU201207-201507

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iNCP14#..CBU201207-201507

main53857-47011iNCP145,NSP141..CBU201507

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main90467-10162iNCP14#,NSP140..CBU201207-201507

53866ACLIP(FOR FRONT FENDER TO COWL SIDE SEAL)

main55799-74010iNCP14#,NSP140..CBU201207-201507

53868CSEAL, FRONT FENDER TO COWL SIDE, NO.2 RH

main53868-52060iNCP14#,NSP140..CBU201207-201507

53869ASEAL, FRONT FENDER TO COWL SIDE, NO.2 LH

main53869-52090iNCP145,NSP141..CBU201207-201507

53875CCLIP, FRONT FENDER LINER

main90467-07076-C0iNCP14#,NSP140..CBU201207-201702

BLACK

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-C7iNCP145,NSP141..CBU201703

BLACK

sub90467-07041

sub90467-07076

sub90467-A0016

53882FSEAL, FRONT FENDER

main53882-16030iNCP14#,NSP140..CBU201207-201507

55739GSTOPPER, HOOD

main55738-52050iNCP14#,NSP140..PORTE..CBU201207-201507

58744BPROTECTER, FRONT FENDER PANEL, LH

9162160614

main91621-60614

18 parts on this diagram · 6 diagrams in section
