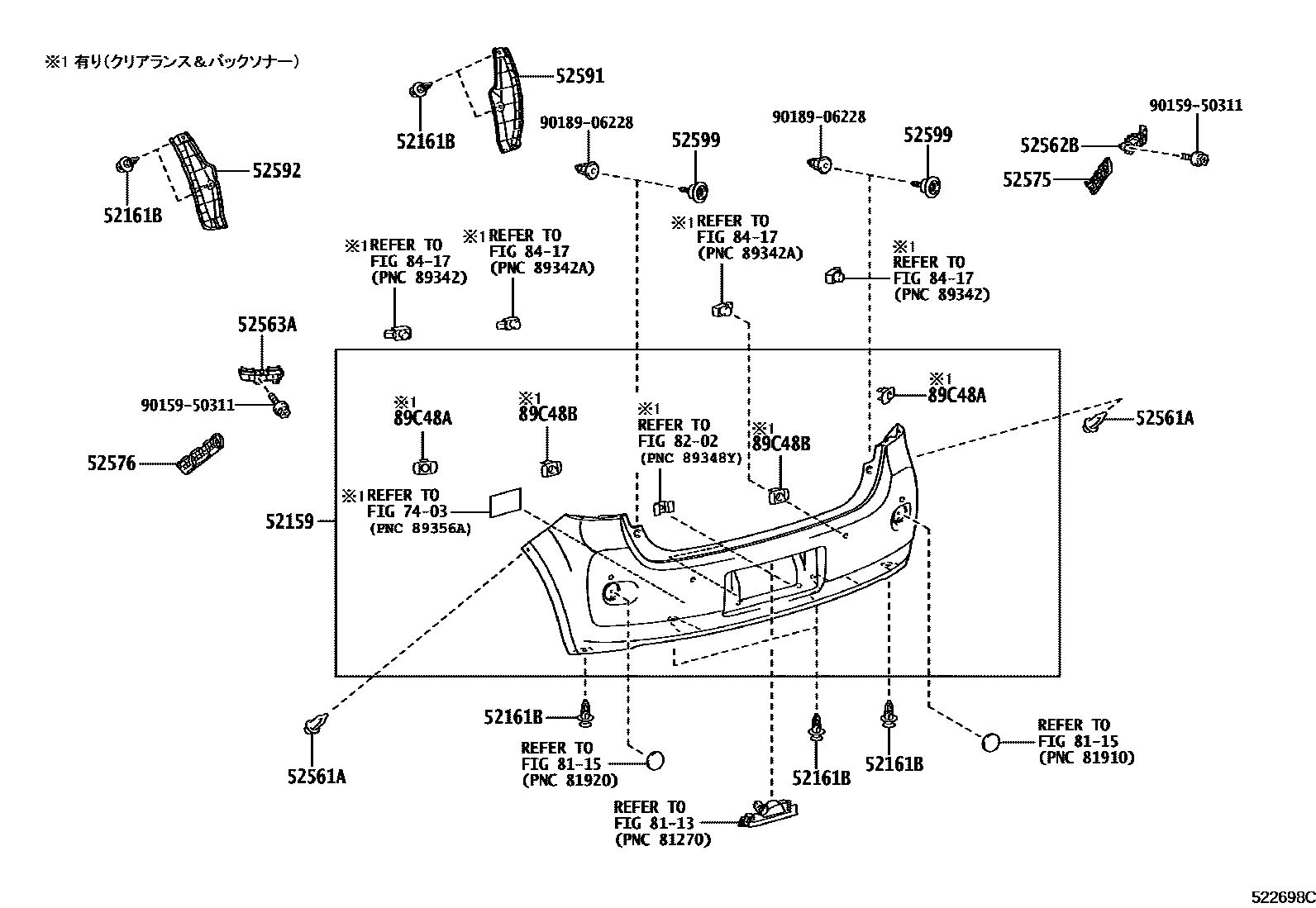

REAR BUMPER & BUMPER STAY
52159COVER, REAR BUMPER
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK MC.,209
BLACK,202
BLACKISH AGEHA GF.,221
SUPER RED 5,3P0
DEEP RED M.M.,3R9
DK. BROWN M.M.,4U3
BRONZE M.M.,4T3
SPICY KHAKI PEARL CS.,5B8
YELLOW M.M.,588
CITRUS M.M.,6W2
LT.BLUE M.M.,8S1
BLUE ME.,8T7
DK.VIOLET M.M.,9AF
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK MC.,209
BLACKISH AGEHA GF.,221
SUPER RED 5,3P0
CHERRY PEARL CS.,3S7
DK. BROWN M.M.,4U3
CREAM BEIGE,4V9
CITRUS ORANGE M.M.,4V7
BRONZE M.M.,4T3
SUPER BRIGHT YELLOW,576
AIR GREEN M.M.,6W1
AQUA BLUE ME.,2TW ,783
LT.BLUE M.M.,8S1
BLUE ME.,8T7
WHITE PEARL CS.,070
SILVER ME.,1F7
WHITE PEARL CS.,070
SILVER ME.,1F7
main52159-52994-E5supersedes 52159-52810-E4iNCP145,NSP141..PORTE..(G,X,Y)..CBU; NCP145,NSP141..PORTE..F..CBU201907
main52159-52994-J3supersedes 52159-52810-J2iNCP145,NSP141..PORTE..(G,X,Y)..CBU; NCP145,NSP141..PORTE..F..CBU201907
52161BPIECE, REAR BUMPER
52561ACLIP(FOR REAR BUMPER RETAINER)
DK.GRAY
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
52599STOPPER, REAR BUMPER, UPPER
7403CAUTION PLATE (EXTERIOR & INTERIOR)
8113REAR LICENSE PLATE LAMP
8115REFLEX REFLECTOR
8202WIRING & CLAMP
8417CLEARANCE & BACK SONAR
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
9015950311
main90159-50311
9018906228
main90189-06228
19 parts on this diagram · 2 diagrams in section
