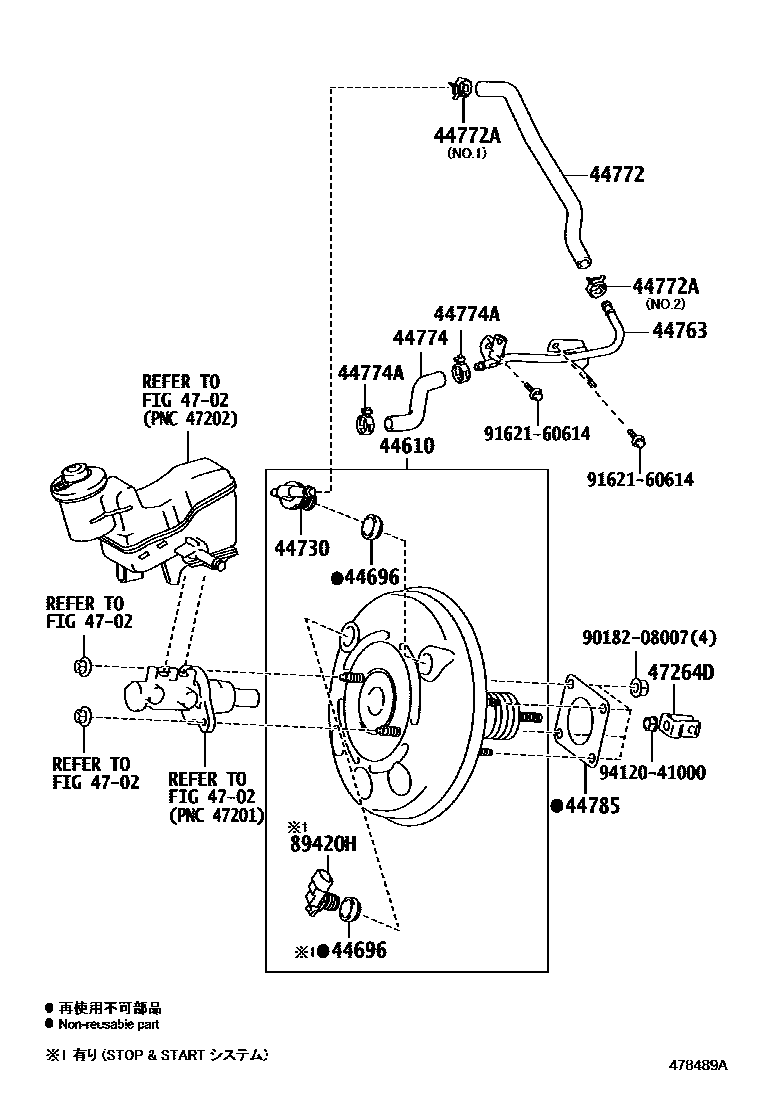

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

44610BOOSTER ASSY, BRAKE

main44610-52F00iNCP145..CBU201207-201507

main44610-52F50iNCP145..CBU201712

main44610-52G90iNSP141..CBU201507

main44610-52760supersedes 44610-52770iNSP140..V;NCP141..CBU; NSP140..X..CBU201207-201507

main44610-52770supersedes 44610-52760iNSP140..V;NCP141..CBU; NSP140..X..CBU201207-201507

44696GROMMET, CHECK VALVE

main90480-24439iNCP145..CBU; NSP141..CBU201507

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050×2iNSP141..CBU201507-201510

main44730-20170iNCP145..CBU201507

main44730-52010iNSP141..CBU201711

44763TUBE, BOOSTER VACUUM

main44763-52030iNCP14#..CBU201207-201507

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-52120iNCP14#..CBU201207-201507

main44772-52220iNSP141..CBU201507

main44772-52230iNSP141..CBU201507

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014iNCP14#..CBU201207-201209

main96133-41500iNCP14#..CBU201207-201209

44774HOSE, UNION TO CONNECTOR TUBE

main44774-52070iNCP145..CBU201507

main44774-52170iNSP141..CBU201507

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014×2iNSP141..CBU201507

main96133-41500×2iNCP14#..CBU201207-201501

main96136-41801×2iNCP14#..CBU201502-201507

44785GASKET, BRAKE BOOSTER

main44785-16020iNCP14#,NSP140..CBU201207-201507

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-52040iNCP14#,NSP140..CBU201207-201507

89420HSENSOR ASSY, VACUUM

main89421-52020iNSP141..CBU201507

9018208007

main90182-08007

9162160614

main91621-60614

9412041000

main94120-41000

15 parts on this diagram · 4 diagrams in section
