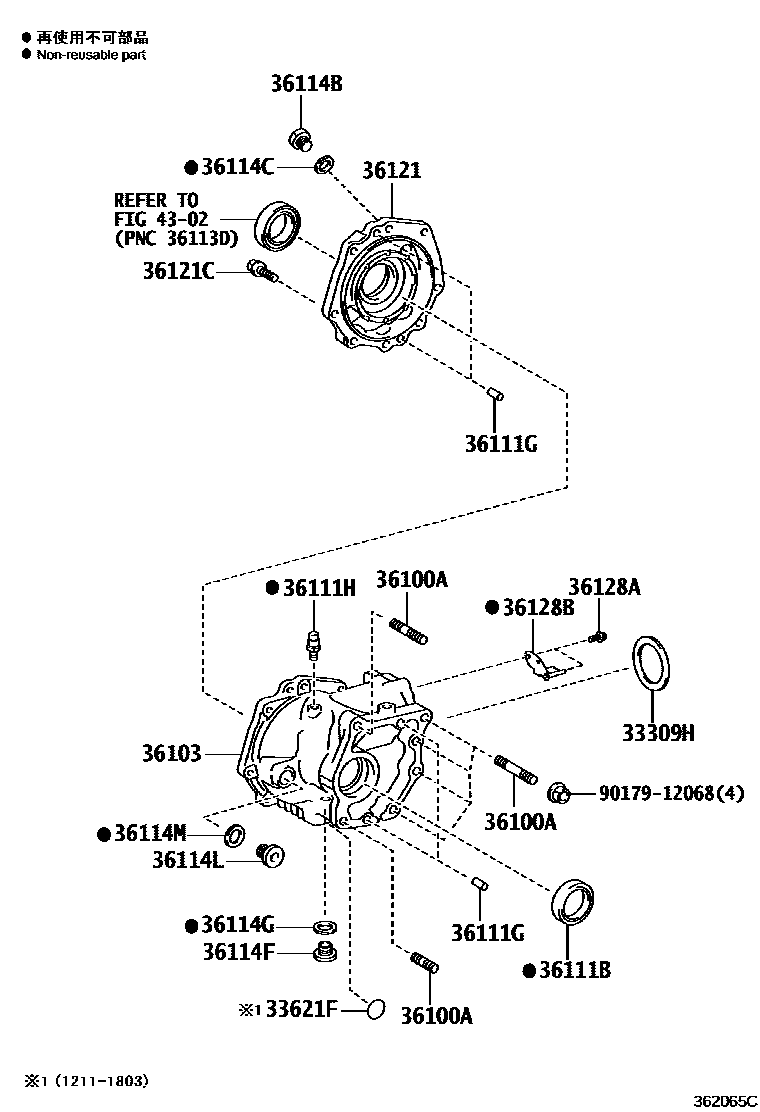

TRANSFER CASE & EXTENSION HOUSING
33309HWASHER, TRANSFER OUTPUT SHAFT
33621FLABEL, TRANSAXLE OIL INFORMATION
36100ABOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
36103CASE SUB-ASSY, TRANSFER
36111BSEAL, OIL (FOR TRANSFER CASE)
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
36111HPLUG, BREATHER (FOR TRANSFER CASE)
36114BPLUG, NO.1 (FOR TRANSFER CASE)
36114CGASKET, NO.1 (FOR TRANSFER CASE)
36114FPLUG (FOR TRANSFER DRAIN)
36114GGASKET (FOR TRANSFER DRAIN PLUG)
36114LPLUG, FILLER(FOR TRANSFER)
36114MGASKET (FOR TRANSFER FILLER PLUG)
36121COVER, TRANSFER CASE, NO.1
36121CBOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVER)
36128ABOLT (FOR BREATHER OIL DEFLECTOR)
36128BDEFLECTOR, BREATHER OIL
4302FRONT DRIVE SHAFT
9017912068
main90179-12068
19 parts on this diagram · 1 diagram in section
