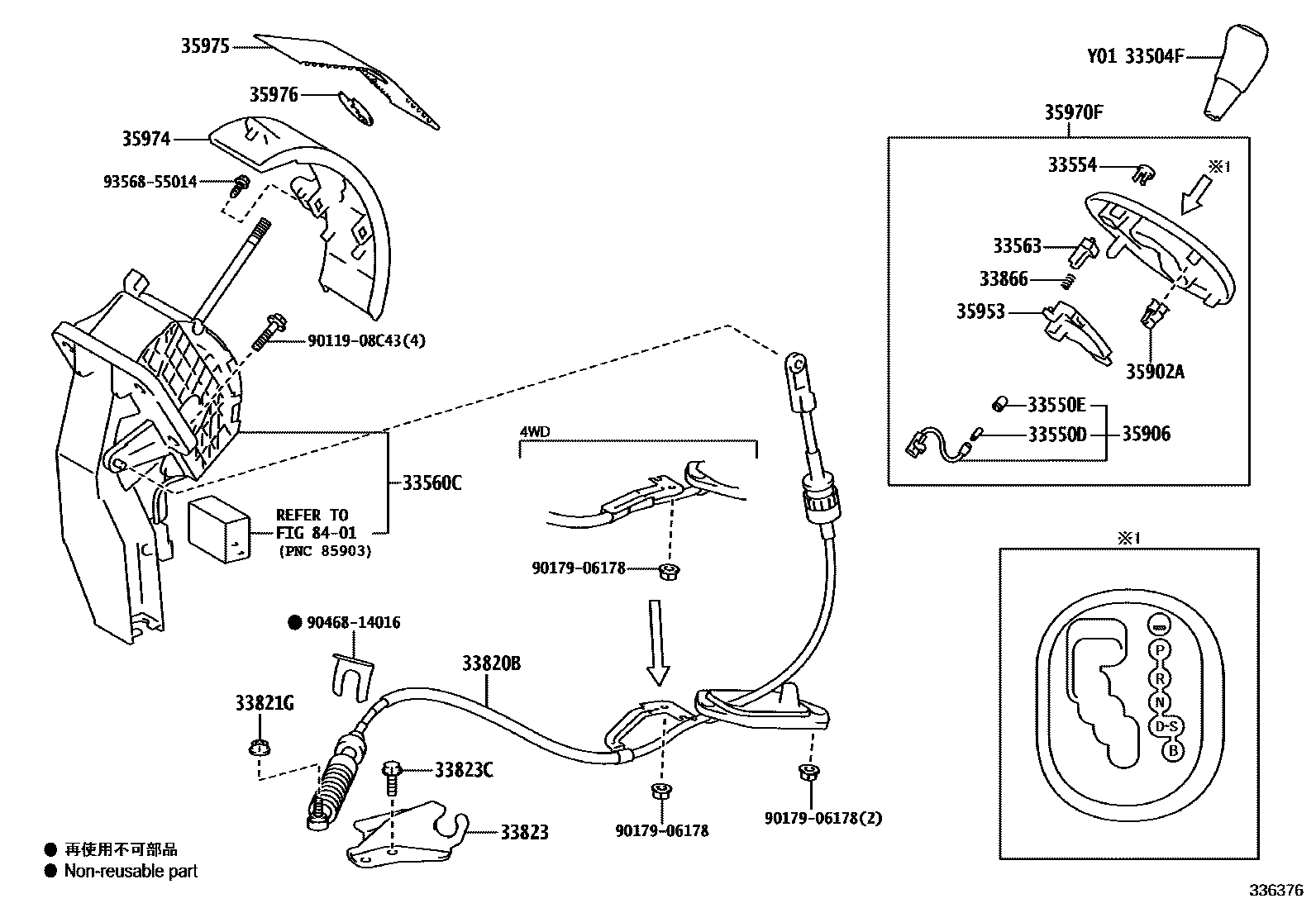

SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK,TRIM40
BLACK,TRIM4#
BLACK,TRIM2#,4#
BLACK,TRIM44
PLUM,TRIM0#,41
PLUM,TRIM0#,4#
main33504-46010-E1iNCP141..Y;NCP145..SPADE..Y;NCP145..PORTE..(F,Y);NCP141..PORTE..F..CBU201207-201507
PLUM,TRIM4#
PLUM,TRIM0#,40,42,44
PLUM,TRIM0#,40,44
PLUM,TRIM0#
BLACK,TRIM40
PLUM,TRIM0#,41
PLUM,TRIM4#
33550DBULB, POSITION INDICATOR LAMP
33550ECAP, POSITION INDICATOR LAMP
33554CAP, SHIFT LEVER
BLACK,TRIM4#
BLACK,TRIM40
PLUM,TRIM0#,41
PLUM,TRIM0#
33560CLEVER ASSY, SHIFT, LOWER
33563BUTTON, SHIFT LOCK RELEASE
33820BCABLE ASSY, TRANSMISSION CONTROL
33821GNUT (FOR TRANSMISSION CONTROL CABLE)
33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
33866SPRING, SHIFT LOCK RELEASE
35902ACLIP, COVER SUB-ASSY, POSITION INDICATOR HOUSING
35906WIRE SUB-ASSY, INDICATOR LAMP
35953GUIDE, POSITION INDICATOR LIGHT
35970FHOUSING ASSY, POSITION INDICATOR
BLACK,TRIM40
BLACK,TRIM4#
PLUM,TRIM0#
PLUM,TRIM0#,41
35974HOUSING, POSITION INDICATOR, LOWER
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
8401
9011908C43
main90119-08C43
9017906178
main90179-06178
9046814016
main90468-14016
9356855014
main93568-55014
23 parts on this diagram · 4 diagrams in section
