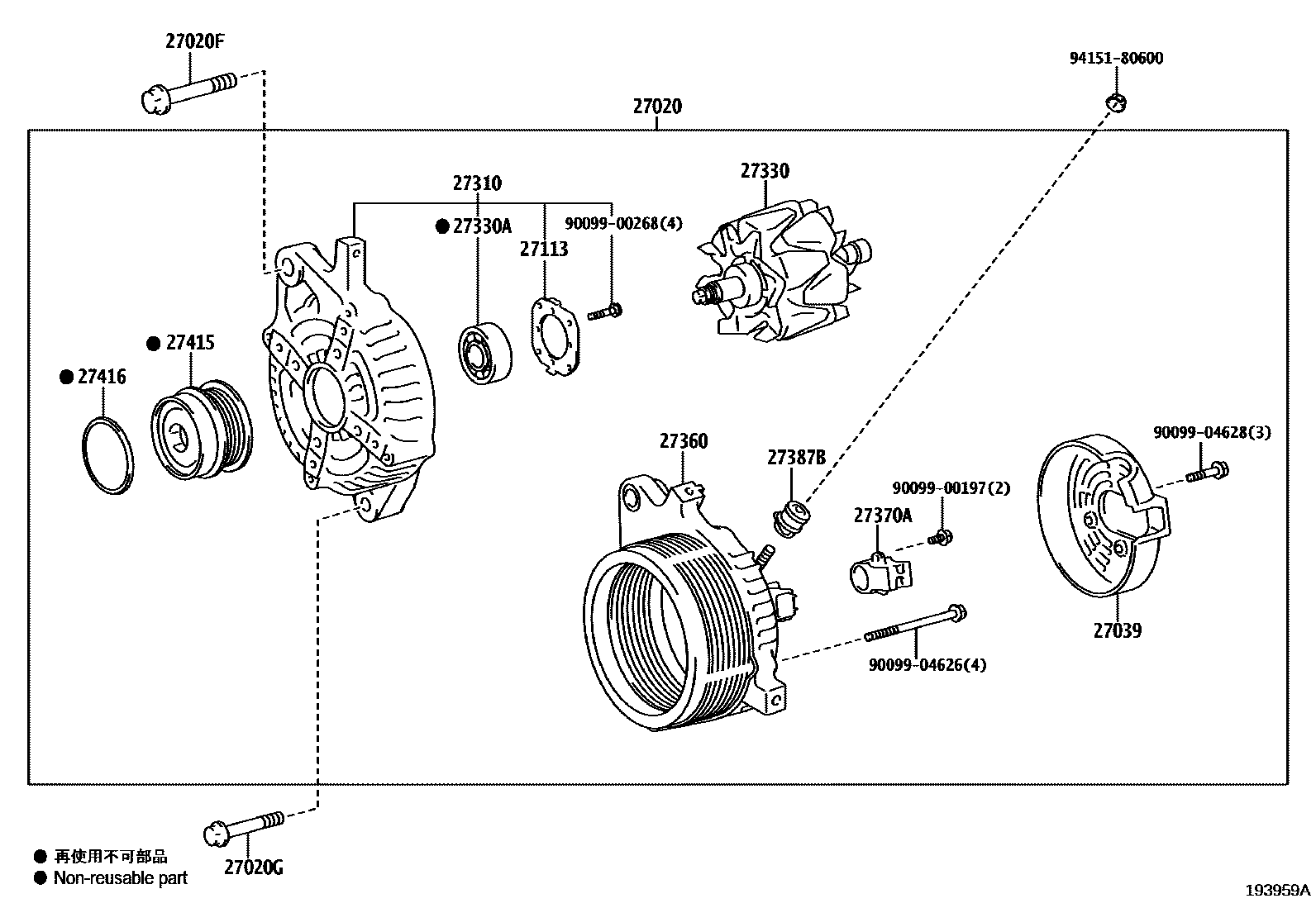

ALTERNATOR
27020FBOLT, NO.1(FOR ALTERNATOR)
27020GBOLT, NO.2(FOR ALTERNATOR)
27039COVER, ALTERNATOR REAR END
27113PLATE, BEARING RETAINER, ALTERNATOR
27330ROTOR ASSY, ALTERNATOR
27330ABEARING(FOR ALTERNATOR ROTOR)
27360COIL ASSY, ALTERNATOR
27370AHOLDER ASSY, ALTERNATOR BRUSH
27387BINSULATOR, ALTERNATOR TERMINAL
27416CAP, ALTERNATOR PULLEY
9009900197
main90099-00197
9009900268
main90099-00268
9009904626
main90099-04626
9009904628
main90099-04628
9415180600
main94151-80600
18 parts on this diagram · 4 diagrams in section
