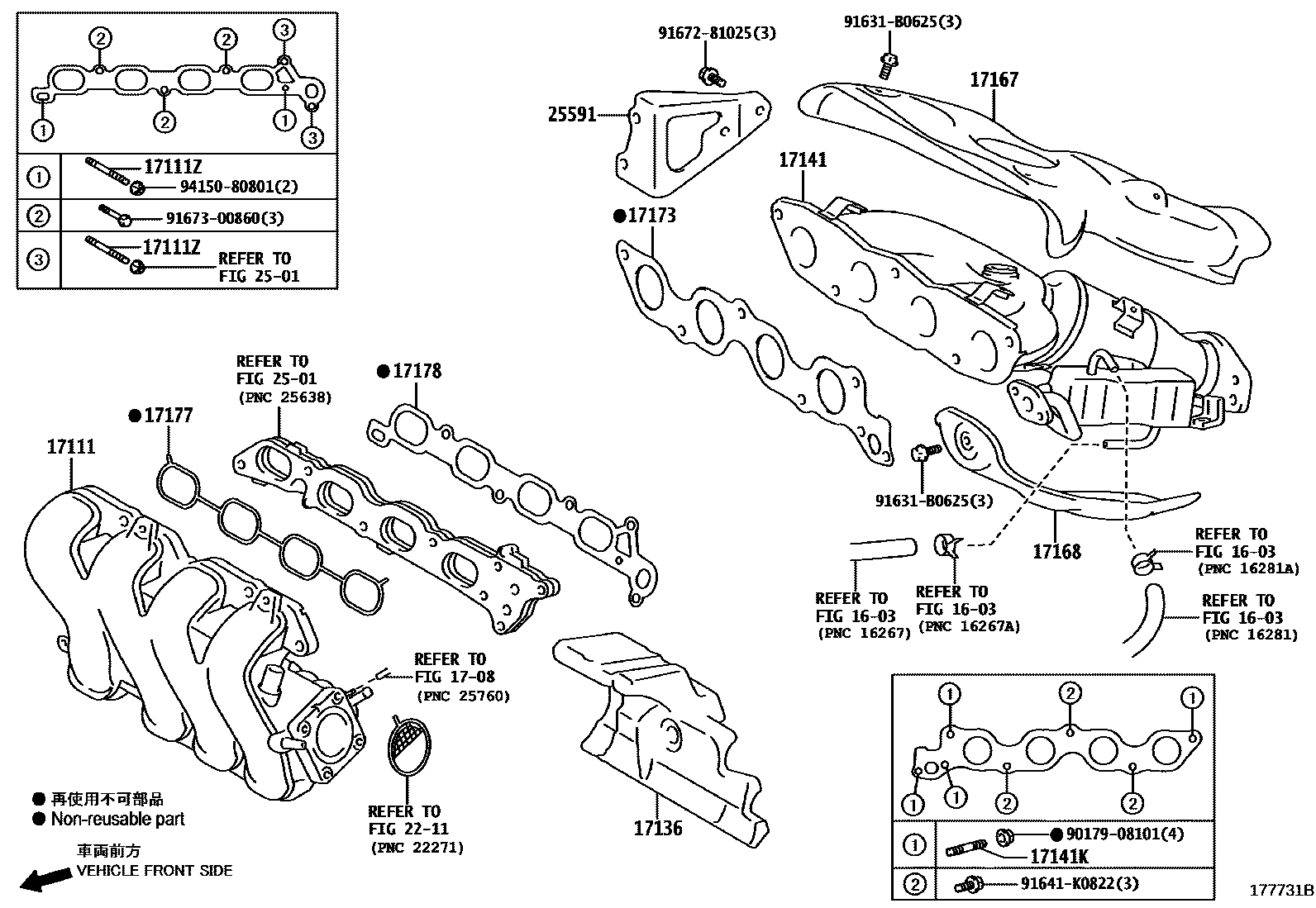

MANIFOLD
1603
1708
17111MANIFOLD, INTAKE
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17136INSULATOR, INTAKE MANIFOLD, NO.2
17141MANIFOLD, EXHAUST
17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2
2211
2501
25591BRACKET, MANIFOLD SUPPORT
9017908101
main90179-08101
91631B0625
main91631-B0625
91641K0822
main91641-K0822
9167281025
main91672-81025
9167300860
main91673-00860
9415080801
main94150-80801
21 parts on this diagram · 4 diagrams in section
