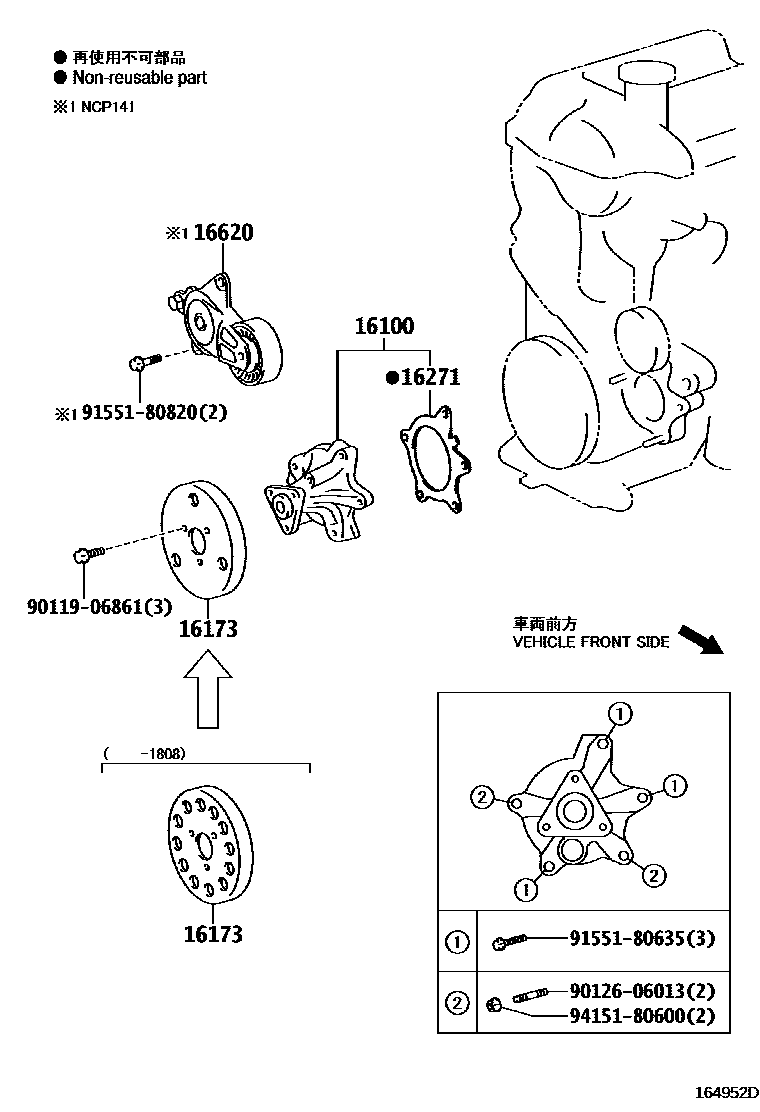

WATER PUMP

0001 1 0002 1 0003 1

16100PUMP ASSY, ENGINE WATER

main16100-29157i1NZFE..NCP14#..CBU201207-201507

main16100-29158i1NZFE..NCP145..CBU201812

main16100-80004i1NRFE..NSP140..CBU201207-201308

main16100-80010i1NRFE..NSP140..CBU201308-201507

main16100-80013i2NRFKE..NSP141..CBU201507

16173PULLEY, WATER PUMP

main16173-21020i1NZFE..NCP14#..CBU201207-201507

main16173-21021i1NZFE..NCP145..CBU201808

16271GASKET, WATER PUMP

main16271-0Y030i2NRFKE..NSP141..CBU201507

main16271-21021i1NZFE..NCP14#..CBU201207-201507

main16271-47031i1NRFE..NSP140..CBU201207-201507

16620TENSIONER ASSY, V-RIBBED BELT

main16620-21010i1NZFE..NCP141..CBU201207-201507

main16620-47030i1NRFE..NSP140..CBU201207-201507

main16620-47031i2NRFKE..NSP141..CBU202007

9011906861

main90119-06861

9012606013

main90126-06013

9155180635

main91551-80635

9155180820

main91551-80820

9415180600

main94151-80600

9 parts on this diagram · 3 diagrams in section
