ENGINE OVERHAUL GASKET KIT

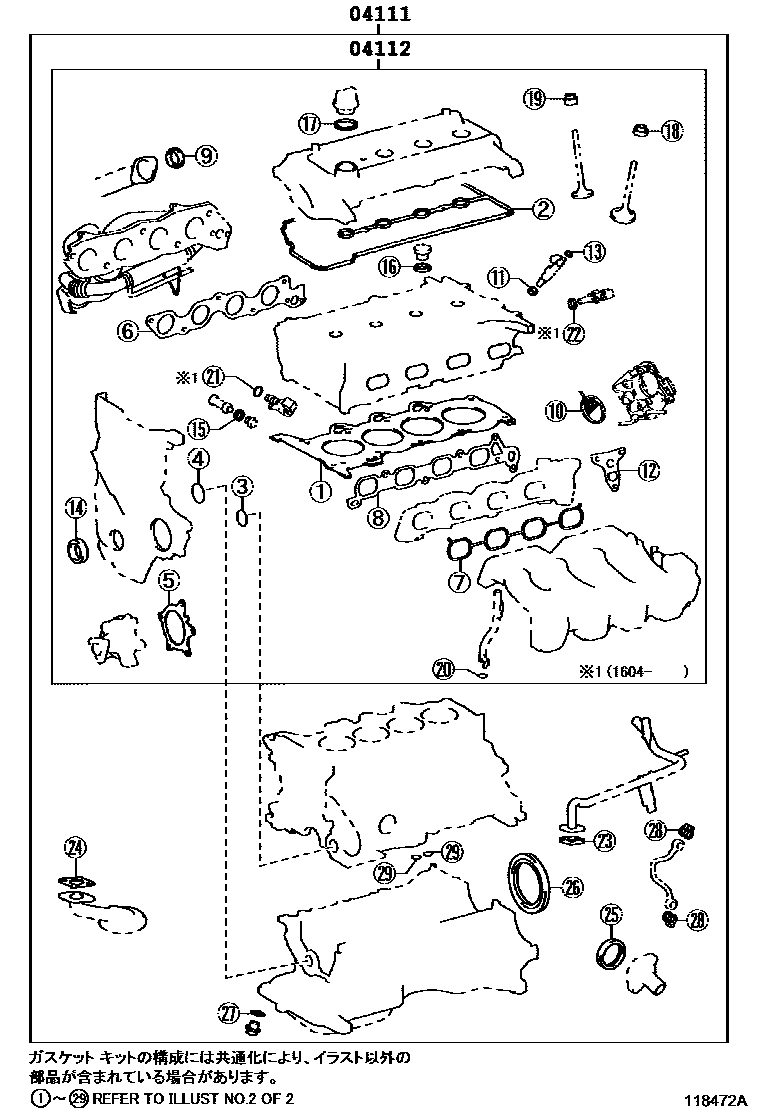

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-21247i201207-201311
main04111-21248i201311-201507
main04111-21249i201604
main04111-47260i201507-201806
main04111-47261i201806-202002
main04111-47262i202002
main04111-47123supersedes 04111-47240i201207-201303
main04111-47124supersedes 04111-47240i201303-201311
main04111-47133supersedes 04111-47230i201207-201303
main04111-47134supersedes 04111-47230i201303-201311
main04111-47230supersedes 04111-47240i201311-201507
main04111-47240supersedes 04111-47230i201311-201507
04112GASKET KIT, ENGINE VALVE GRIND
main04112-21245i201207-201311
main04112-21246i201507-201604
main04112-21247i201604
main04112-47083i201207-201311
main04112-47150i201311-201507
main04112-47170i201507-201806
main04112-47171i201806-202002
main04112-47172i202002

2 parts on this diagram · 6 diagrams in section
