SHORT BLOCK ASSEMBLY

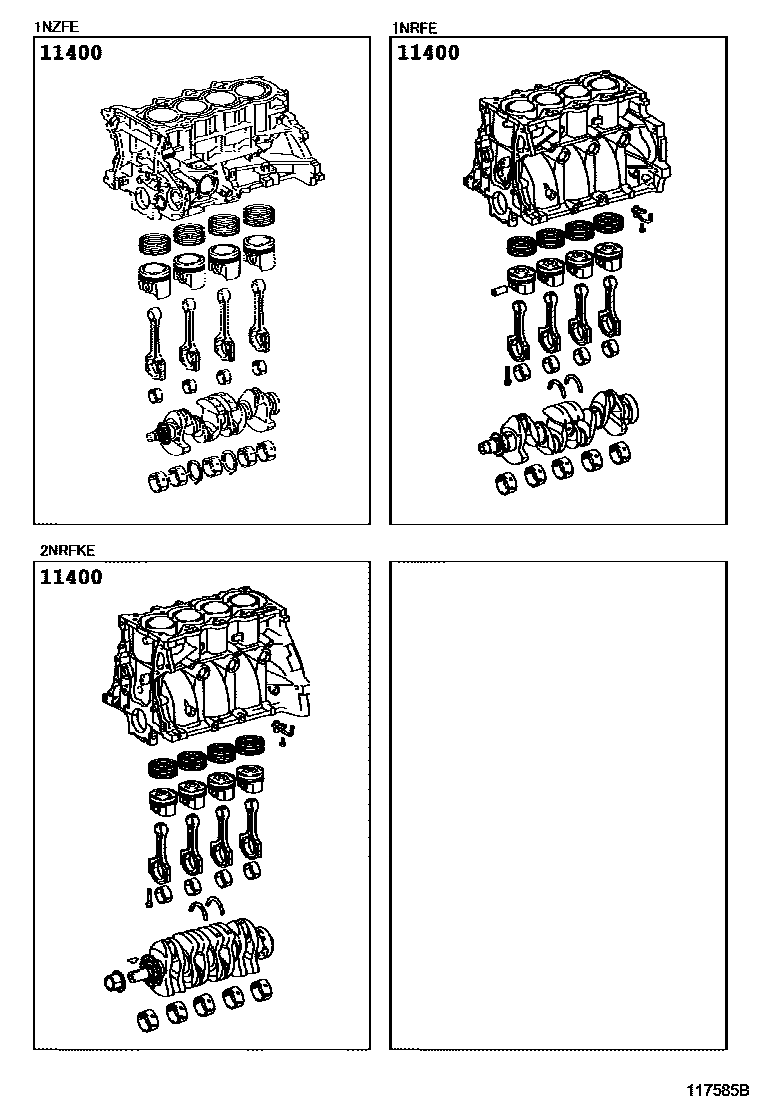

Parts diagram

11400BLOCK ASSY, SHORT

main11400-21193i201507

main11400-47090i201207-201301

main11400-47091i201301-201305

main11400-47140i201305-201507

main11400-47210i201507

main11400-21451supersedes 11400-21441i201207-201507

1 parts on this diagram · 1 diagram in section
