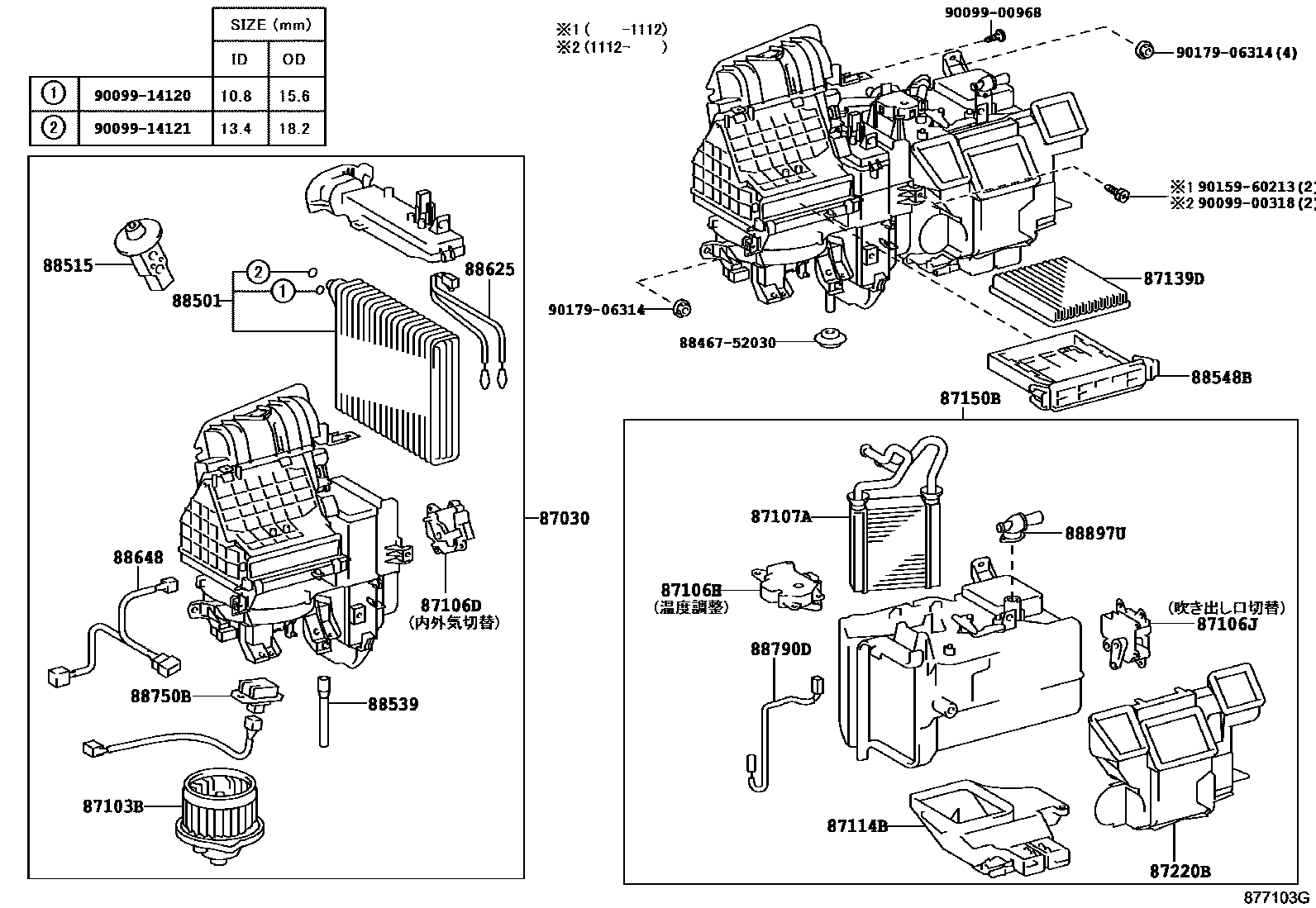

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1������� 0002 1�������&�������� 0003 1��������� 0004 1���������&��������

87030BLOWER ASSY, AIR CONDITIONER

main87030-52011supersedes 87030-52431iNNP10,15; NNP11200407-200706

main87030-52041supersedes 87030-52011iNNP10,15; NNP11200407-200706

main87030-52042supersedes 87030-52012iNNP10,15201109

main87030-52381supersedes 87030-52431iNNP10; NNP11200407-200706

main87030-52382supersedes 87030-52432iNNP10; NNP11; NNP15201109

main87030-52431iNNP10; NNP15200610-200706

main87030-52432iNNP10; NNP11; NNP15201109

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-52110iNNP10,15; NNP11200507-200706

main87103-52111iNNP10,15201012

main87103-52050iNNP10200906

main87103-52070supersedes 87103-52050iNNP1#; NNP10; NNP11200407-200706

87106DSERVO SUB-ASSY, DAMPER, NO.1

main87106-52030iNNP10; NNP10,15; NNP11200407-200706

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-52010iNNP10; NNP11200407-200706

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-52070iNNP10; NNP11200407-200706

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-52010iNNP1#200706

87114BCOVER, HEATER

main87114-52010iNNP10; NNP15200610-200706

main87114-52020iNNP1#; NNP10; NNP15200706-201111

main87114-52021supersedes 87114-52011iNNP1#; NNP10; NNP15201112

87139DELEMENT, AIR REFINER

main87139-12010iNNP1#200407-200706

87150BRADIATOR ASSY, HEATER

main87150-52010supersedes 87150-52250iNNP10,15; NNP11200407-200706

main87150-52030supersedes 87150-52010iNNP10,15; NNP11200407-200706

main87150-52240supersedes 87150-52250iNNP10; NNP11; NNP15200706

main87150-52250iNNP10; NNP11; NNP15200706

87220BDUCT ASSY, AIR

main87220-52010iNNP1#200407-200706

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-52070iNNP1#200407-200706

88515VALVE, COOLER EXPANSION

main88515-52040iNNP1#200407-200706

main88515-52080iNNP1#201109

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-52010iNNP1#200407-200706

88548BCASE, AIR FILTER

main88548-52010iNNP1#200407-200706

88625THERMISTOR, COOLER, NO.1

main88625-52090supersedes 88625-52050iNNP10,15; NNP11200407-200706

main88625-52050iNNP10; NNP15200610-200706

88648WIRING, COOLER, NO.1

main88648-52020×2supersedes 88648-52260iNNP10; NNP11200407-200507

main88648-52050supersedes 88648-52020iNNP10; NNP15200610-200706

main88648-52240supersedes 88648-52260iNNP10,15; NNP11200507-200706

main88648-52260iNNP10; NNP11; NNP15200901

88750BTRANSISTOR ASSY, BLOWER RESISTOR

main88750-52010iNNP10; NNP11200407-200706

main88750-52020iNNP10; NNP11; NNP15200901

88790DTHERMISTOR ASSY

main88790-52010iNNP10; NNP11200407-200706

88897UPIPE, ASPIRATOR

main88897-12210iNNP10; NNP11200407-200706

8846752030CUSHION, COOLER CONDENSER, NO.1

main88467-52030

9009900318

main90099-00318

9009900968

main90099-00968

9009914120

main90099-14120

9009914121

main90099-14121

9015960213

main90159-60213

9017906314

main90179-06314

26 parts on this diagram · 4 diagrams in section
