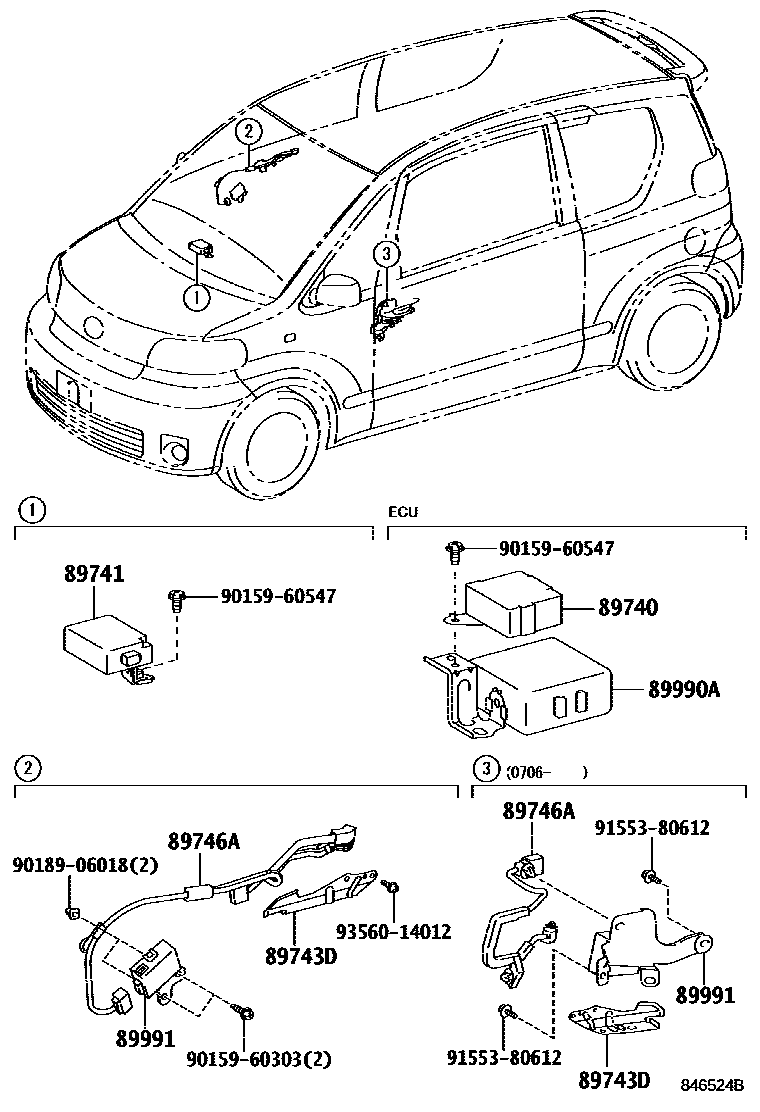

WIRELESS DOOR LOCK

89740COMPUTER ASSY, DOOR CONTROL W/RECEIVER

main89740-52030iNNP10,15; NNP11200407-200706

89741RECEIVER, DOOR CONTROL

main89741-52130iNNP10,15; NNP11200407-200706

89743DBRACKET, ELECTRICAL KEY WIRE HARNESS

main89743-68010iNNP10,15; NNP11200407-200706

89746AHARNESS, ELECTRICAL KEY WIRE

main89746-52020iNNP10,15; NNP11200407-200706

main89746-52160iNNP10,15; NNP11200706

89990ACOMPUTER ASSY, SMART KEY

main89990-52020iNNP10,15; NNP11200407-200706

main89990-52200iNNP10,15; NNP11200706

89991OSCILLATOR, DOOR ELECTRICAL KEY

main89991-52020iNNP10,15; NNP11200407-200706

main89991-52040iNNP10,15; NNP11200706

9015960303

main90159-60303

9015960547

main90159-60547

9018906018

main90189-06018

9155380612

main91553-80612

9356014012

main93560-14012

11 parts on this diagram · 1 diagram in section
