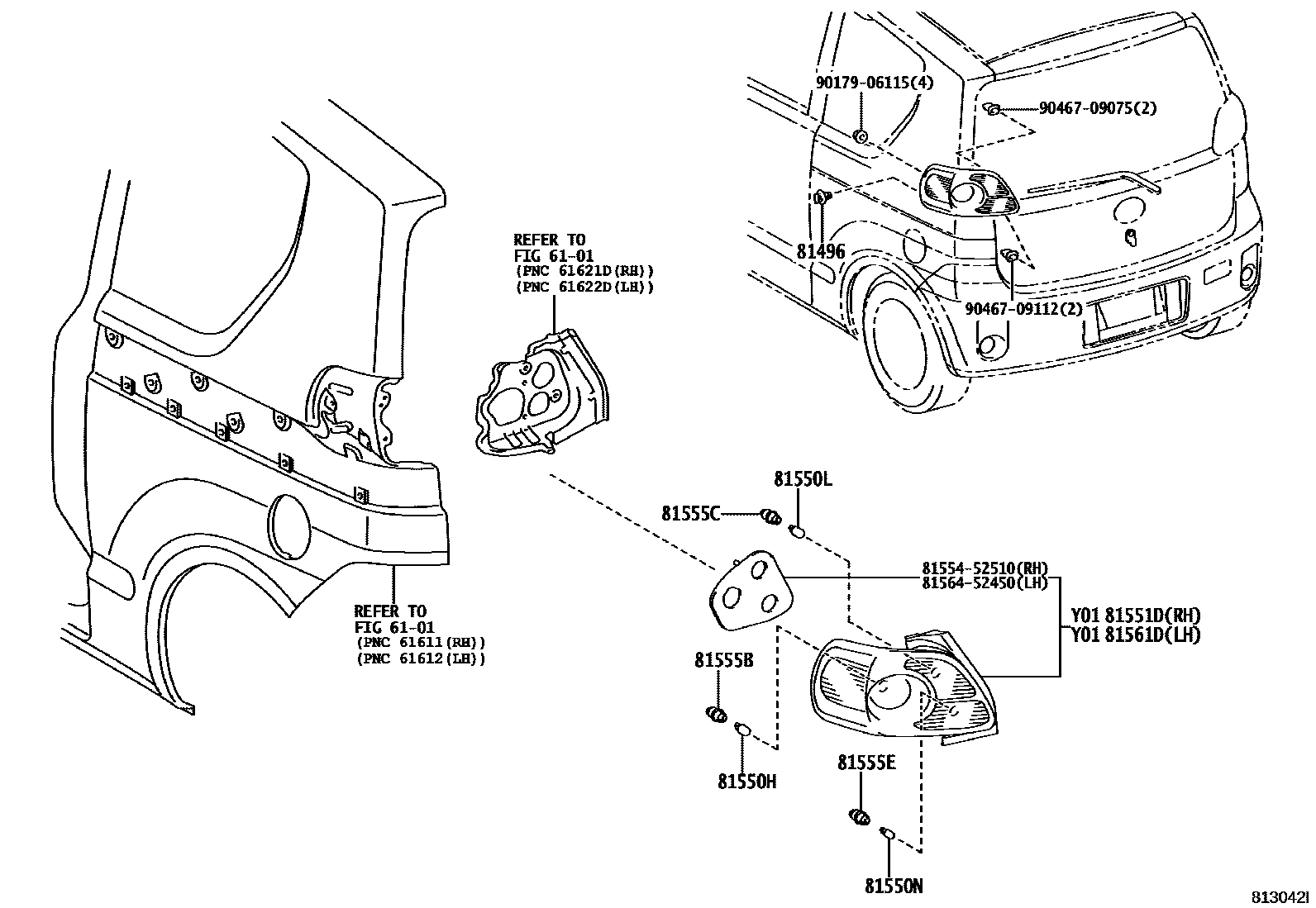

REAR COMBINATION LAMP

6101SIDE MEMBER

→ Go to FIG 61-01

81496GUIDE, REAR COMBINATION LAMP

main81496-60010×2iNNP1#200407-200706

81550HBULB, TAIL & STOP LAMP

main90981-13044×2iNNP1#200407-200706

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011×2iNNP1#200407-200706

81550NBULB, BACK UP LAMP

main90981-11059×2iNNP1#200407-200706

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-52510iNNP1#200407-200706

main81551-52740iNNP1#200706

81555BSOCKET PLUG, NO.1

main81555-13510×2iNNP1#200407-200706

81555CSOCKET PLUG, NO.2

main81555-60700×2iNNP1#200407-200706

81555ESOCKET PLUG, NO.3

main81565-60620×2iNNP1#200407-200706

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-52450iNNP1#200407-200706

main81561-52650iNNP1#200706

8155452510GASKET, REAR COMBINATION LAMP BODY, RH

main81554-52510

8156452450GASKET, REAR COMBINATION LAMP BODY, LH

main81564-52450

9017906115

main90179-06115

9046709075

main90467-09075

9046709112

main90467-09112

15 parts on this diagram · 1 diagram in section
