FOG LAMP

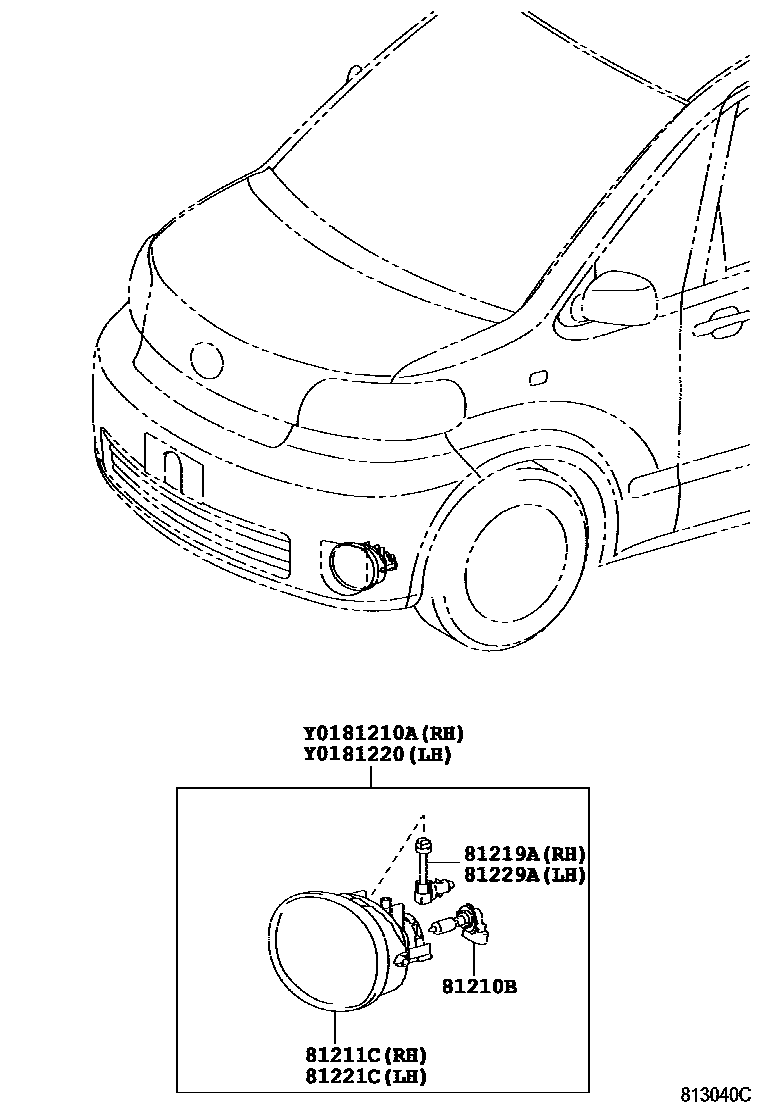

Parts diagram

81210ALAMP ASSY, FOG, RH

main81210-42050i200407-200706

main81210-52100i201008-201206

81210BBULB, FOG LAMP

main90981-13047×2i200407-200706

81211CLAMP UNIT, FOG LAMP, RH

main81211-42050i200407-200706

81219ABRACKET, FOG LAMP, RH

main81218-42050i200407-200706

main81218-52100i201008-201206

81220LAMP ASSY, FOG, LH

main81220-42050i200407-200706

main81220-52110i201008-201206

81221CLAMP UNIT, FOG LAMP, LH

main81221-42050i200407-200706

81229ABRACKET, FOG LAMP, LH

main81228-42050i200407-200706

main81228-52110i201008-201206

7 parts on this diagram · 1 diagram in section
