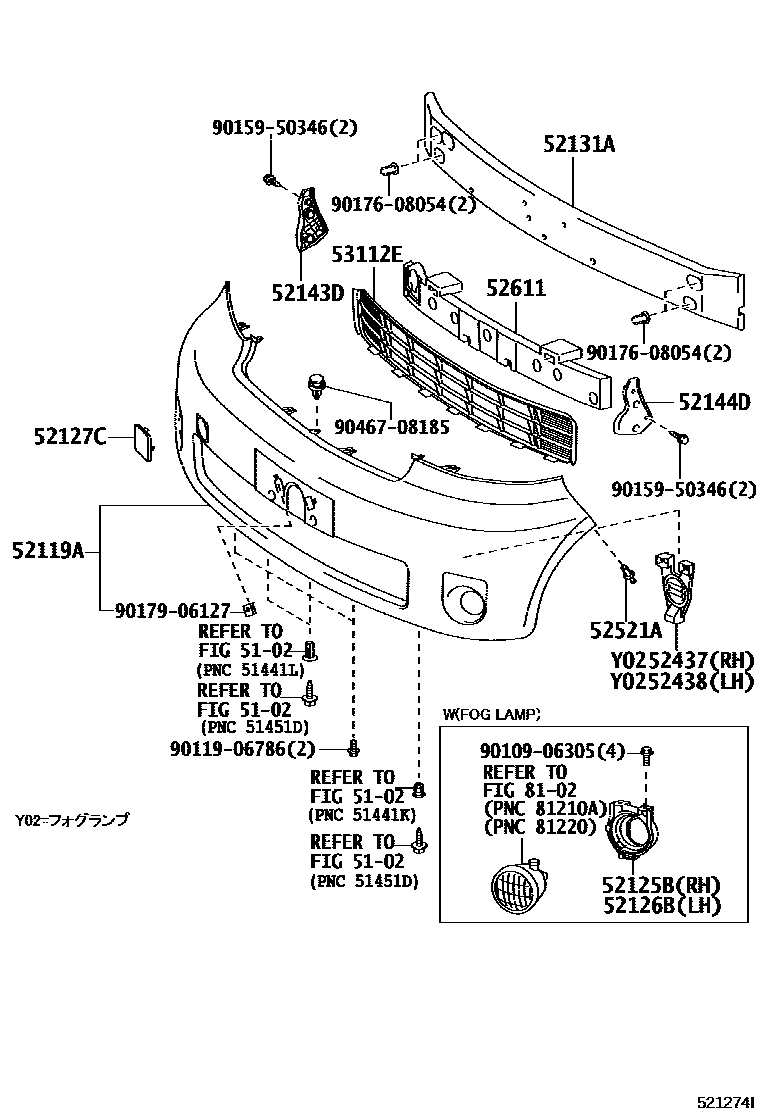

FRONT BUMPER & BUMPER STAY

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

52119ACOVER, FRONT BUMPER

main52119-52390-A0iNNP1#200706-201206

WHITE PEARL CS.,064

main52119-52390-B0iNNP1#200407-200706

SILVER M.M.,1E7

main52119-52390-B1iNNP1#200512-200706

GRAY ME.,1G2

main52119-52390-C0iNNP1#200407-200706

BLACK MC.,209

main52119-52390-D0iNNP1#200706-201206

SUPER RED 5,3P0

main52119-52390-D1iNNP1#200906-201206

MAROON BROWN MICA,3S3

main52119-52390-E0iNNP1#200706-201206

BEIGE ME.,4T8

main52119-52390-F0iNNP1#200706-201008

LT.YELLOW,597

main52119-52390-G0iNNP10,15; NNP11200610-200706

main52119-52390-H0iNNP1#200407-200706

AQUA M.M.,774

main52119-52390-J0iNNP1#200407-200706

BLUE MC.,8M6

main52119-52390-K0iNNP10,11200407-200706

LAVENDER M.M.,949

main52119-52390-K1iNNP1#201008-201206

LT.PURPLE M.M.,9AE

52125BEXTENSION, FRONT BUMPER REINFORCEMENT, RH

main52125-52020iNNP10200407-200512

52126BEXTENSION, FRONT BUMPER REINFORCEMENT, LH

main52126-52020iNNP10,15; NNP11; NNP15200706

52127CCOVER, FRONT BUMPER HOLE

main52127-52210-A0iNNP1#200706-201206

WHITE PEARL CS.,064

main52127-52210-B0iNNP1#200706-201206

SILVER M.M.,1E7

main52127-52210-B1iNNP1#200512-200706

GRAY ME.,1G2

main52127-52210-C0iNNP1#200706-201206

BLACK MC.,209

main52127-52210-D0iNNP1#200706-201206

SUPER RED 5,3P0

main52127-52210-D1iNNP1#200906-201206

MAROON BROWN MICA,3S3

main52127-52210-E0iNNP1#200706-201206

BEIGE ME.,4T8

main52127-52210-F0iNNP1#200706-201008

LT.YELLOW,597

main52127-52210-G0iNNP10,15; NNP11200610-200706

main52127-52210-H0iNNP1#200407-200706

AQUA M.M.,774

main52127-52210-J0iNNP1#200407-200706

BLUE MC.,8M6

main52127-52210-K0iNNP10,11200407-200706

LAVENDER M.M.,949

main52127-52210-K1iNNP1#201008-201206

LT.PURPLE M.M.,9AE

52131AREINFORCEMENT, FRONT BUMPER

main52131-52241iNNP1#200407-200706

52143DBRACKET, FRONT BUMPER SIDE, RH

main52143-52150iNNP1#200407-200706

52144DBRACKET, FRONT BUMPER SIDE, LH

main52144-52140iNNP1#200407-200706

52437COVER, FRONT BUMPER GUARD, RH

main52437-52060iNNP10,15200407-200706

52438COVER, FRONT BUMPER GUARD, LH

main52438-52060iNNP10,15200407-200706

52521ACLIP(FOR FRONT BUMPER RETAINER)

main90467-05063-B5×2iNNP1#201104-201206

DK.GRAY

main90467-05090-B1×2iNNP1#200706-201103

DK.GRAY

52611ABSORBER, FRONT BUMPER ENERGY

main52611-52040iNNP1#200407-200706

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-52150iNNP1#200407-200706

8102FOG LAMP

→ Go to FIG 81-02

9010906305

main90109-06305

9011906786

main90119-06786

9015950346

main90159-50346

9017608054

main90176-08054

9017906127

main90179-06127

9046708185

main90467-08185

20 parts on this diagram · 1 diagram in section
