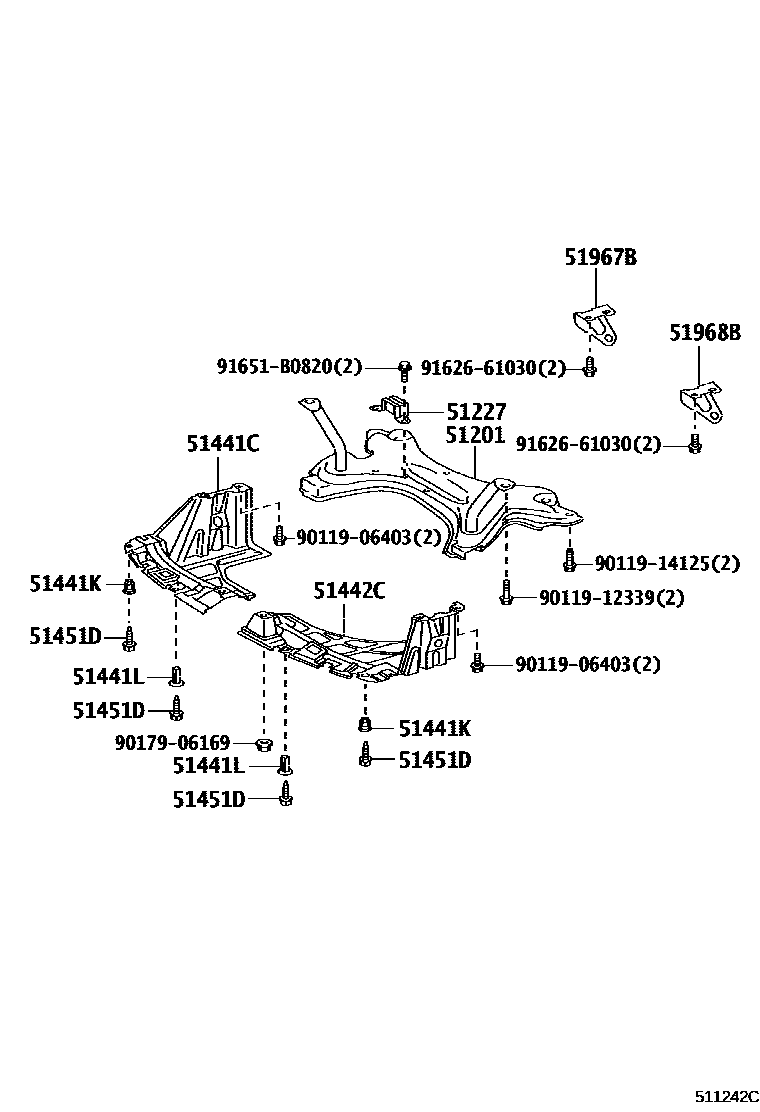

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-52014iNNP10,11200407-200706

main51201-52051iNNP15200601-200706

51227WEIGHT, FRONT SUSPENSION MEMBER DAMPER

main51227-46010iNNP10,11200407-200706

51441CCOVER, ENGINE UNDER, RH

main51441-52010iNNP1#200407-200706

51441KGROMMET(FOR ENGINE UNDER COVER)

main90189-06076×2iNNP1#200407-200706

51441LGROMMET, NO.2(FOR ENGINE UNDER COVER)

main90189-06177×2iNNP1#200407-200706

51442CCOVER, ENGINE UNDER, LH

main51442-52010iNNP1#200407-200706

51451DSCREW, NO.1

main90159-60383×4iNNP1#200407-200706

51967BHOOK, TRANSPORT, REAR RH

main51967-48010iNNP10,11200407-200706

51968BHOOK, TRANSPORT, REAR LH

main51967-48010iNNP10,11200407-200706

9011906403

main90119-06403

9011912339

main90119-12339

9011914125

main90119-14125

9017906169

main90179-06169

9162661030

main91626-61030

91651B0820

main91651-B0820

15 parts on this diagram · 2 diagrams in section
