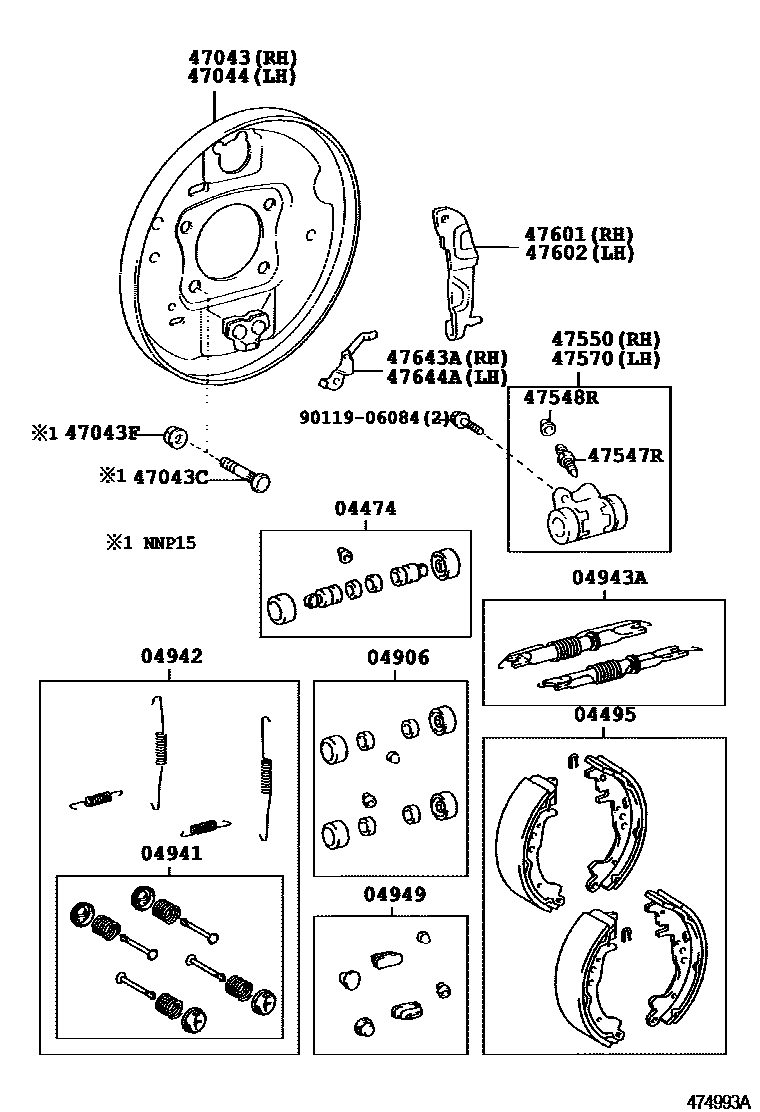

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-52020×2iNNP1#200407-200706

04495SHOE KIT, REAR BRAKE

main04495-52040iNNP1#200407-200706

04906CUP KIT, REAR WHEEL CYLINDER

main04906-10021iNNP1#200407-200706

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-12010iNNP1#200407-200502

main04941-46010iNNP1#200502-200706

04942SPRING KIT, REAR BRAKE

main04942-12010iNNP1#200407-200502

main04942-46010iNNP1#200706

04943ASTRUT KIT, REAR BRAKE

main04943-12010iNNP1#200706

04949PLUG KIT, REAR BRAKE

main04949-12010iNNP1#200407-200706

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-52010iNNP10,11200706

main47043-52030iNNP15200601-200706

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-22020×8iNNP15200601-200706

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main94184-01001×8iNNP15200706

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-52010iNNP10,11200407-200706

main47044-52030iNNP15200601-200706

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010×2iNNP1#200706-201206

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iNNP1#200407-200706

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-20211iNNP1#200407-200706

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-20101iNNP1#200706

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-47010iNNP1#200407-200512

main47601-52100iNNP1#200512-200706

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-47010iNNP1#200407-200512

main47602-52100iNNP1#200512-200706

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-47010iNNP1#200407-200706

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-47010iNNP1#200407-200706

9011906084

main90119-06084

20 parts on this diagram · 1 diagram in section
