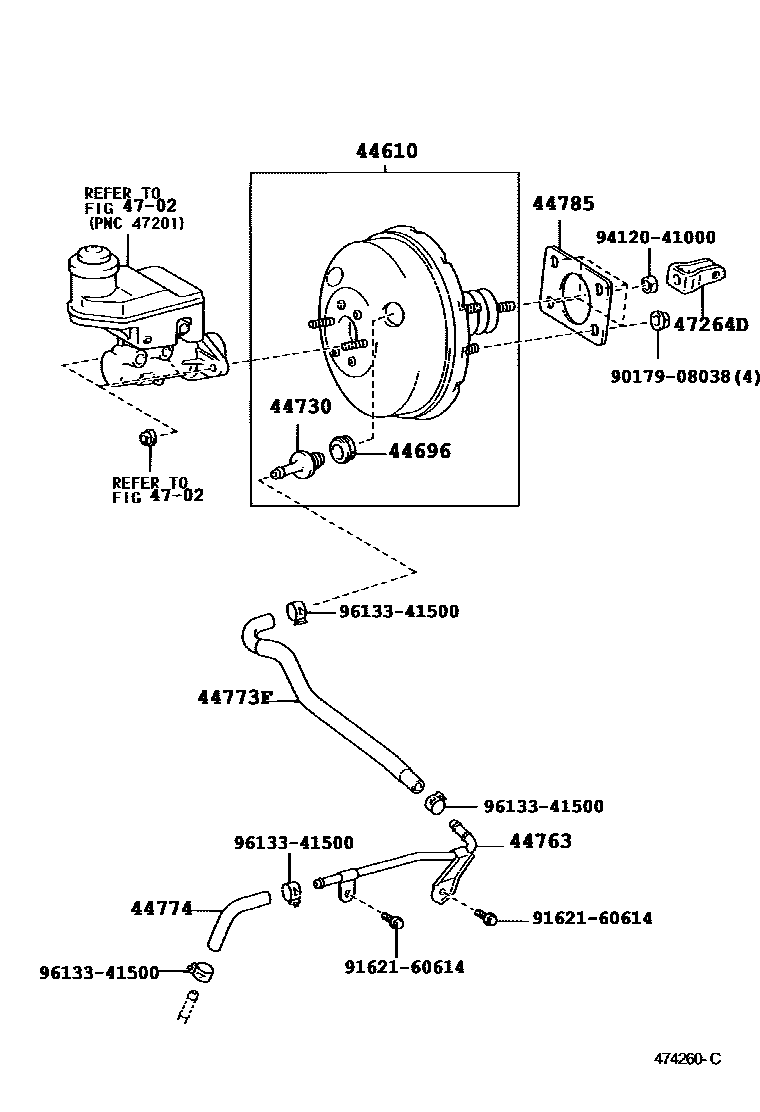

BRAKE BOOSTER & VACUUM TUBE

44610BOOSTER ASSY, BRAKE

main44610-52210iNNP1#200407-200410

main44610-52211iNNP1#200411-200602

main44610-52212iNNP1#200603-200706

44696GROMMET, CHECK VALVE

main90480-24439iNNP1#200407-200706

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20080iNNP1#200407-200706

44763TUBE, BOOSTER VACUUM

main44763-52010iNNP1#200407-200706

44773FHOSE, UNION TO CHECK VALVE

main44773-52080iNNP1#200407-200706

44774HOSE, UNION TO CONNECTOR TUBE

main95446-09130iNNP1#200407-200706

44785GASKET, BRAKE BOOSTER

main44785-16020iNNP1#200407-200706

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-52040iNNP1#200407-200706

9017908038

main90179-08038

9162160614

main91621-60614

9412041000

main94120-41000

9613341500

main96133-41500

13 parts on this diagram · 1 diagram in section
