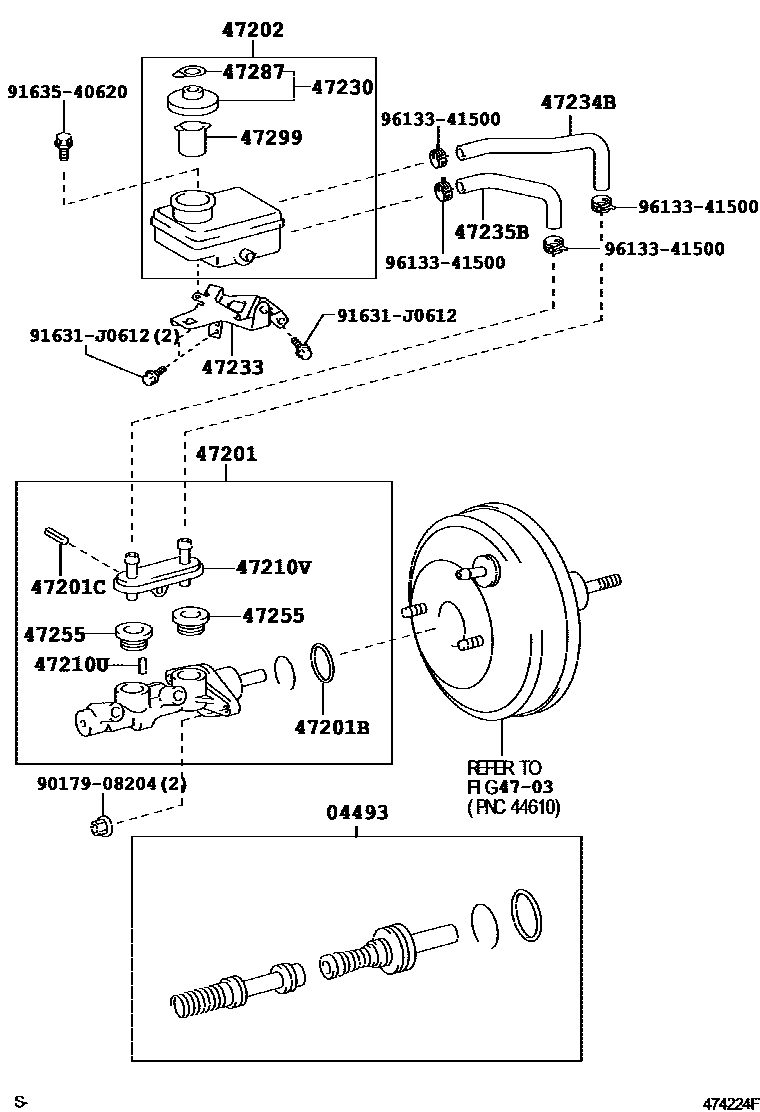

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-46010iNNP1#200407-200706

main04493-52050iNNP11200706

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-46040iNNP1#200411-200706

main47201-46020iNNP11200706

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iNNP1#200407-200706

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15804iNNP1#200407-200706

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-52090iNNP1#200407-200410

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90029-14204iNNP1#200407-200706

47210VUNION(FOR BRAKE MASTER CYLINDER)

main90029-40407iNNP1#200407-200706

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-28240iNNP1#200407-200706

47233BRACKET, RESERVOIR

main47233-52030iNNP1#200407-200706

47234BTUBE, RESERVOIR, NO.1

main47234-52020iNNP1#200411-200706

main47234-52040iNNP11200706

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-52020iNNP1#200706

main47235-52040iNNP11200411-200706

47255GROMMET, MASTER CYLINDER RESERVOIR

main31417-35010×2iNNP1#200407-200706

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iNNP1#200407-200706

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-24010iNNP1#200407-200706

9017908204

main90179-08204

91631J0612

main91631-J0612

9163540620

main91635-40620

9613341500

main96133-41500

19 parts on this diagram · 1 diagram in section
