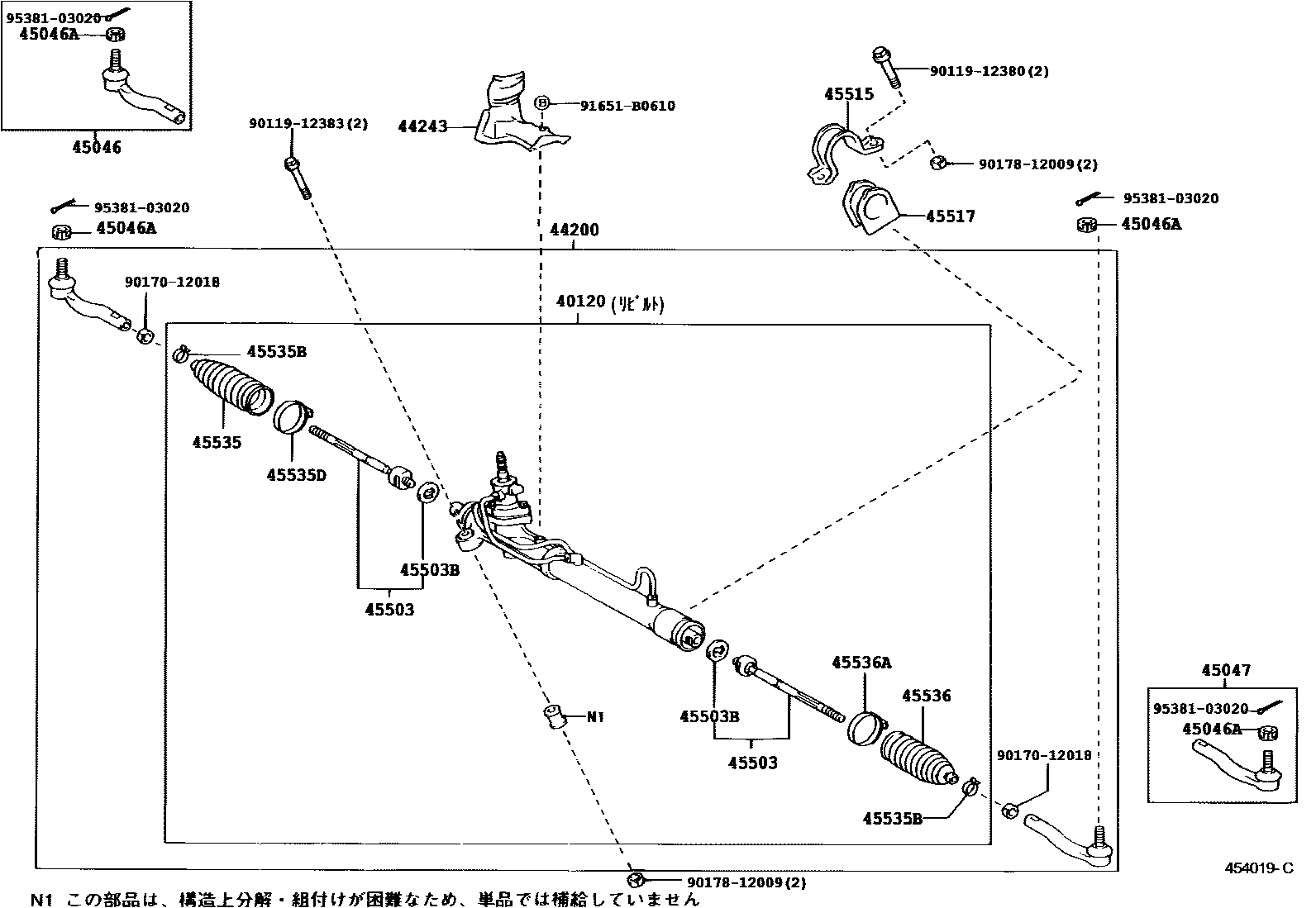

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-46070iNNP10,11200706

main40120-46090iNNP10200407-200706

main40120-46100supersedes 40120-46080iNNP15200706

44200LINK ASSY, POWER STEERING

main44200-46100iNNP10,11200706

main44200-46120iNNP10200407-200706

main44200-46130supersedes 44200-46110iNNP15200601-200706

44243INSULATOR, POWER STEERING RACK HOUSING HEAT

main44243-52032iNNP10,11200706

45046END SUB-ASSY, TIE ROD, RH

main45046-59026iNNP10,11200407-200706

main45047-59026iNNP15200601-200706

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iNNP1#200706

45047END SUB-ASSY, TIE ROD, LH

main45046-59026iNNP15200706

main45047-59026iNNP10,11200706

45503END SUB-ASSY, STEERING RACK

main45503-52010×2iNNP15200601-200706

main45503-59045×2iNNP10,11200407-200706

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-14010×2iNNP10,11200407-200706

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-52010iNNP10,11200407-200706

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-52010iNNP10,11200706

45535BOOT, STEERING RACK, NO.1

main45535-52010iNNP15200706

main45535-52040iNNP10,11200407-200706

45535BCLIP(FOR STEERING RACK BOOT)

main90466-17002×2iNNP10,11200706

main90467-17021×2iNNP15200601-200706

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-55016iNNP10,11200706

main90460-58008iNNP15200601-200706

45536BOOT, STEERING RACK, NO.2

main45535-52010iNNP15200601-200706

main45535-52040iNNP10,11200706

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-55016iNNP10,11200706

main90460-58008iNNP15200601-200706

9011912380

main90119-12380

9011912383

main90119-12383

9017012018

main90170-12018

9017812009

main90178-12009

91651B0610

main91651-B0610

9538103020

main95381-03020

21 parts on this diagram · 3 diagrams in section
