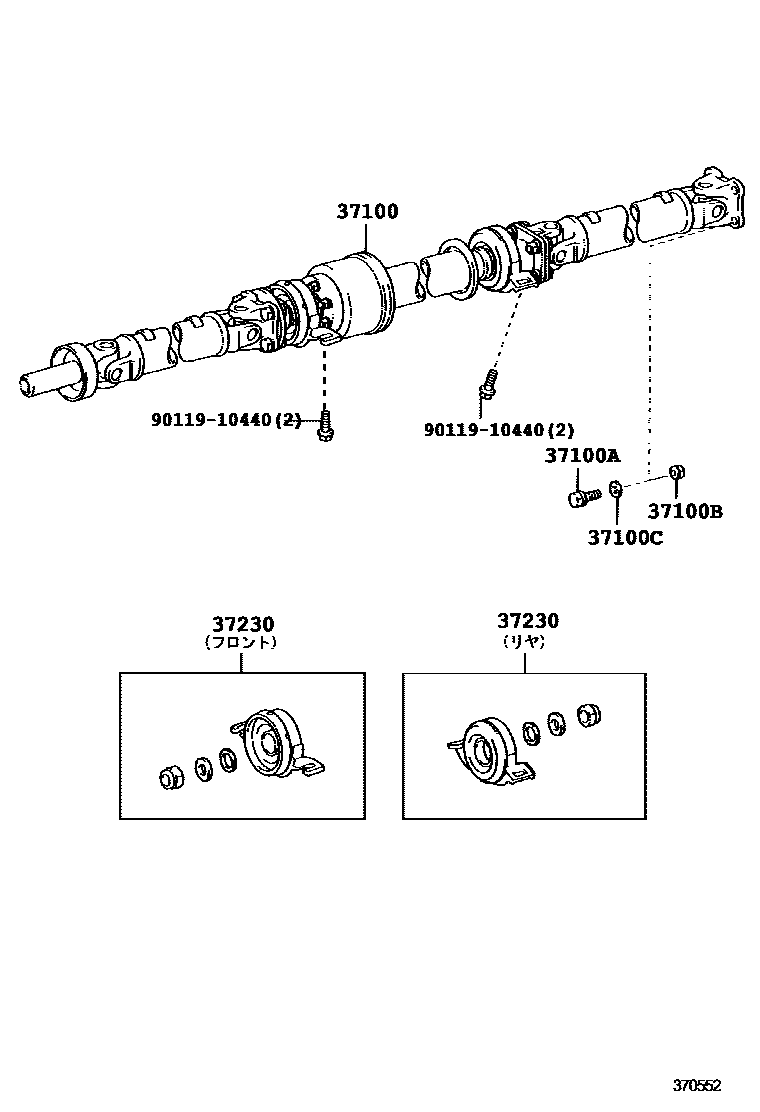

PROPELLER SHAFT & UNIVERSAL JOINT

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-52100iNNP15200601-200706

37100ABOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90105-08244iNNP15200601-200706

37100BNUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90179-08197iNNP15200601-200706

37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main94512-00800iNNP15200601-200706

37230BEARING ASSY, CENTER SUPPORT, NO.1

main37230-59025iNNP15200601-200706

main37230-59035iNNP15200601-200706

9011910440

main90119-10440

6 parts on this diagram · 1 diagram in section
