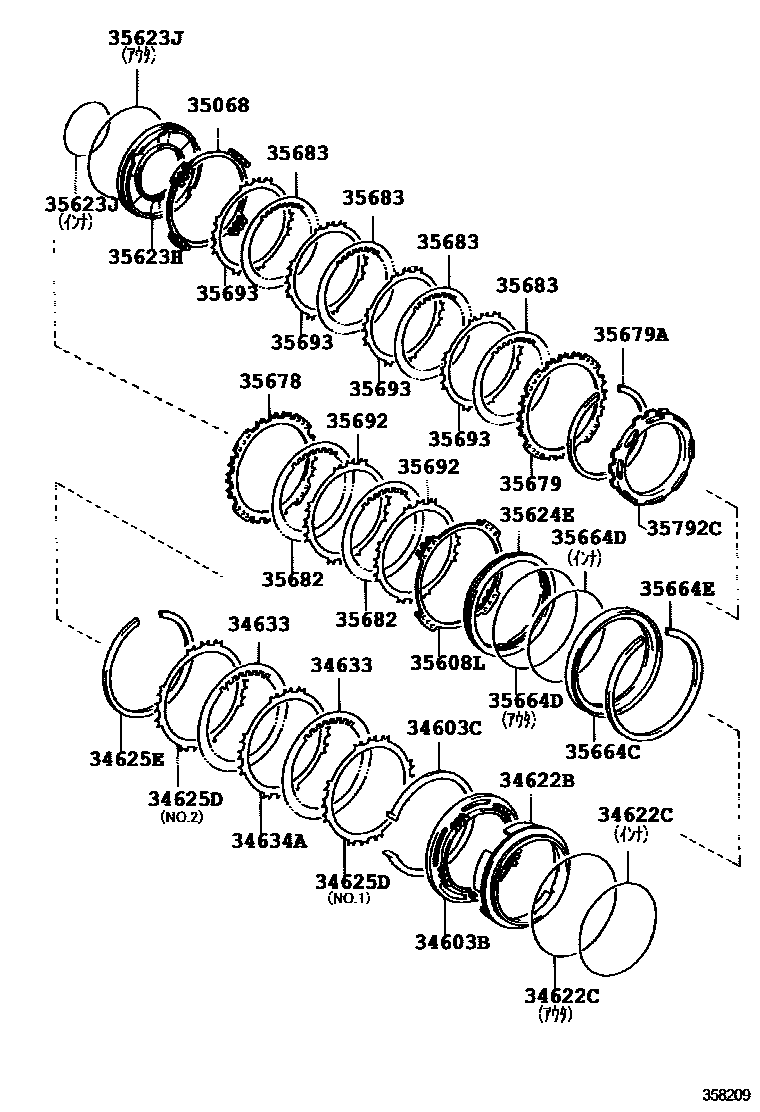

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1U441E 0002 1U340E,U340F

34603BSPRING SUB-ASSY, OVERDRIVE BRAKE RETURN

main34603-52010iNNP10200407-200706

main34603-52020iNNP11,15200407-200706

34603CRING, HOLE SNAP(FOR OVERDRIVE BRAKE RETURN SPRING)

main90520-99047iNNP10200407-200706

main90520-99055iNNP11,15200706

34622BPISTON, 2ND COAST & OVERDRIVE BRAKE

main34622-52010iNNP10200706

main34622-52021iNNP11,15200407-200706

34622CRING, O(FOR 2ND COAST & OVERDRIVE)

main90301-99113iNNP10200706

main90301-99115iNNP10200706

main90301-99121iNNP11,15200407-200706

main90301-99122iNNP11,15200706

34625DFLANGE, 2ND COAST & OVERDRIVE BRAKE

main34625-52010iNNP10200706

main34625-52020iNNP10200407-200706

main34625-52030iNNP10200407-200706

main34625-52040iNNP10200706

main34625-52050iNNP10200706

main34625-52071iNNP11,15200706

main34625-52081iNNP11,15200407-200706

main34625-52091iNNP11,15200706

main34625-52100iNNP10200407-200706

main34625-52110iNNP11,15200407-200706

34625ERING, HOLE SNAP(FOR 2ND COAST & OVERDRIVE BRAKE FLANGE)

main90520-99046iNNP10200706

main90520-99050iNNP11,15200706

34633DISC, 2ND COAST & OVERDRIVE BRAKE

main34633-52020×2iNNP11,15200407-200706

main34633-52030×2iNNP10200407-200706

34634APLATE, 2ND COAST & OVERDRIVE BRAKE

main34634-52010iNNP10200407-200706

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-52020iNNP10200407-200706

main35068-52030iNNP11,15200407-200706

35608LSPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-52010iNNP10200407-200706

main35608-52020iNNP11,15200706

35623HPISTON, 1ST & REVERSE BRAKE

main35623-52020iNNP10200407-200706

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-97001iNNP10200706-201107

main90301-97002iNNP10201107

main90301-99113iNNP10200407-200706

main90301-99195iNNP10201107

35624EPISTON, 2ND BRAKE

main35624-52010iNNP10200407-200706

main35624-52020iNNP11,15200407-200706

35664CCYLINDER, 2ND BRAKE

main35664-52010iNNP10200407-200706

main35664-52020iNNP11,15200706

35664DRING, O(FOR 2ND BRAKE CYLINDER)

main90301-99114iNNP10200407-200706

main90301-99116iNNP10200706

main90301-99118iNNP11,15200407-200706

main90301-99119iNNP11,15200407-200706

35664ERING, HOLE SNAP(FOR 2ND BRAKE CYLINDER)

main90520-99046iNNP10200407-200706

main90520-99050iNNP11,15200407-200706

35678FLANGE, BRAKE(FOR 2ND BRAKE)

main35678-52010iNNP10200706

main35678-52020iNNP11,15200706

main35678-52030iNNP11,15200407-200706

main35678-52040iNNP11,15200706

main35678-52050iNNP11,15200706

35679FLANGE, BRAKE(FOR 1ST & REVERSE)

main35679-52010iNNP10200407-200706

main35679-52020iNNP11,15200407-200706

main35679-52030iNNP11,15200407-200706

main35679-52040iNNP11,15200706

main35679-52050iNNP11,15200407-200706

35679ARING, HOLE SNAP(FOR BRAKE FLANGE)

main90520-99042iNNP10200407-200706

main90520-99054iNNP11,15200407-200706

35682DISC, BRAKE(FOR 2ND BRAKE)

main35682-52010×2iNNP10200706

main35682-52020×3iNNP11,15200706

35683DISC, BRAKE(FOR 1ST & REVERSE)

main35683-52020×4iNNP10200407-200607

main35683-52040×4iNNP11200407-200508

main35683-52050×4iNNP11,15200706

main35683-52070×4iNNP10200706

35692PLATE, BRAKE(FOR 2ND BRAKE)

main35692-52010×2iNNP10200407-200706

35693PLATE, BRAKE (FOR 1ST & REVERSE)

main35693-52020×4iNNP10200407-200706

main35693-52040×4iNNP11,15200407-200706

35792CCLUTCH, 1 WAY, NO.2

main35792-52010iNNP10200407-200706

main35792-52021iNNP11,15200407-200706

main35792-52030iNNP10201110

24 parts on this diagram · 2 diagrams in section
