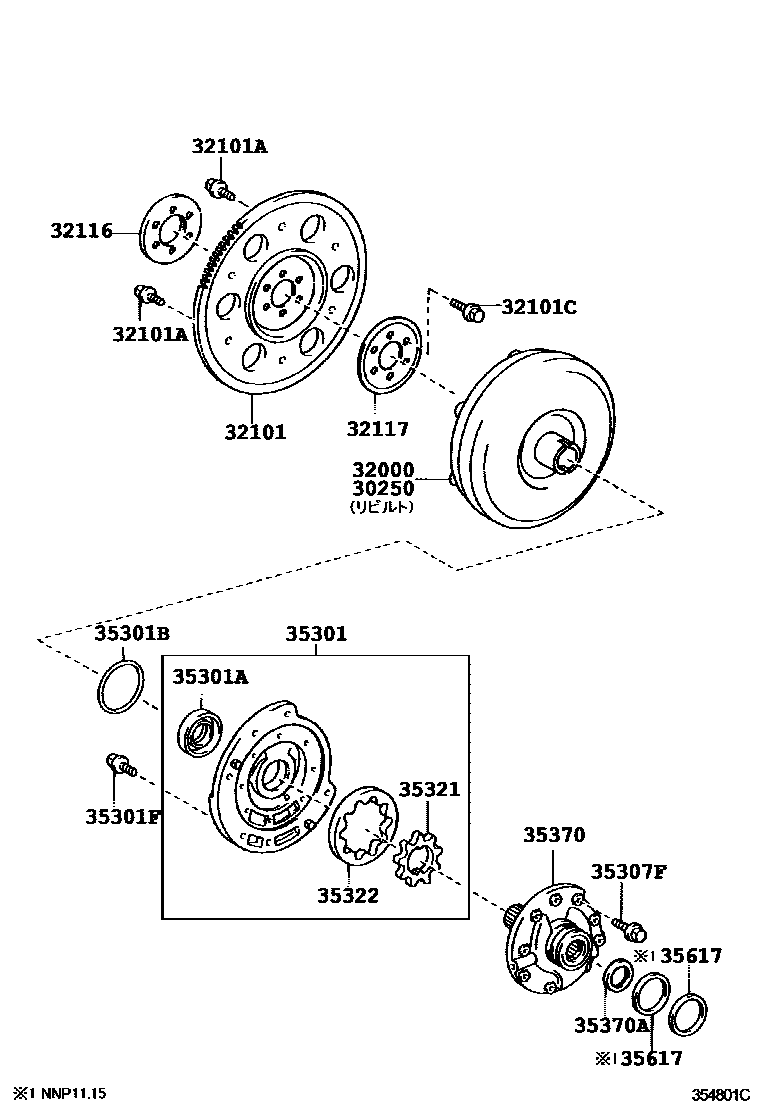

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

30250CONVERTER ASSY, TORQUE, REBUILT

main30250-52020iNNP10200407-200602

main30250-52110iNNP10200602-201206

32000CONVERTER ASSY, TORQUE

main32000-52020iNNP10200407-200602

main32000-52040iNNP11,15200407-200612

main32000-52041iNNP11,15200612-201206

main32000-52110iNNP10200602-201206

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-52021iNNP1#200407-200706

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08107iNNP1#200407-200810

main90109-08113iNNP1#200811

main90119-08269iNNP1#200407-200810

main90119-08498iNNP1#200811

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iNNP1#200706

main90105-10048iNNP1#200407-200706

main90105-A0022iNNP1#200706-201003

32116SPACER, DRIVE PLATE, FRONT

main32116-52030iNNP1#200407-200706

32117SPACER, DRIVE PLATE, REAR

main32117-52030iNNP1#200407-200706

35301BODY SUB-ASSY, FRONT OIL PUMP

main35035-52030iNNP10200407-200706

main35035-52040iNNP11,15200407-200706

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38064iNNP11,15200407-200706

main90311-38075iNNP10200407-200706

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99123iNNP10200407-200706

main90301-99124iNNP11,15200407-200706

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08301iNNP11,15200407-200706

main90105-08376iNNP10200407-200706

35307FBOLT (FOR STATOR SHAFT)

main90119-06559iNNP10200407-200706

main90148-60027iNNP11,15200407-200706

35321GEAR, FRONT OIL PUMP DRIVE

main35321-52010iNNP10200407-200706

main35321-52020iNNP10200407-200706

main35321-52030iNNP10200407-200706

main35321-52040iNNP10200407-200706

main35321-52050iNNP10200407-200706

main35321-52060iNNP11,15200407-200706

main35321-52070iNNP11,15200407-200706

main35321-52080iNNP11,15200407-200706

main35321-52090iNNP11,15200407-200706

main35321-52100iNNP11,15200407-200706

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-52010iNNP10200407-200706

main35322-52020iNNP10200407-200706

main35322-52030iNNP10200407-200706

main35322-52040iNNP10200407-200706

main35322-52050iNNP10200407-200706

main35322-52060iNNP11,15200407-200706

main35322-52070iNNP11,15200407-200706

main35322-52080iNNP11,15200407-200706

main35322-52090iNNP11,15200407-200706

main35322-52100iNNP11,15200407-200706

35370SHAFT ASSY, STATOR

main35370-52010iNNP10200407-200706

main35370-52030iNNP11200407-200601

main35370-52070iNNP11,15200601-200706

35370ABEARING, THRUST NEEDLE ROLLER(FOR STATOR SHAFT)

main90374-26003iNNP11,15200407-200706

main90374-32007iNNP10200407-200706

main90374-32008iNNP10200407-200706

35617RING, CLUTCH DRUM OIL SEAL

main35613-52010iNNP11,15200407-200612

main35613-52020iNNP11,15200612-200706

17 parts on this diagram · 1 diagram in section
