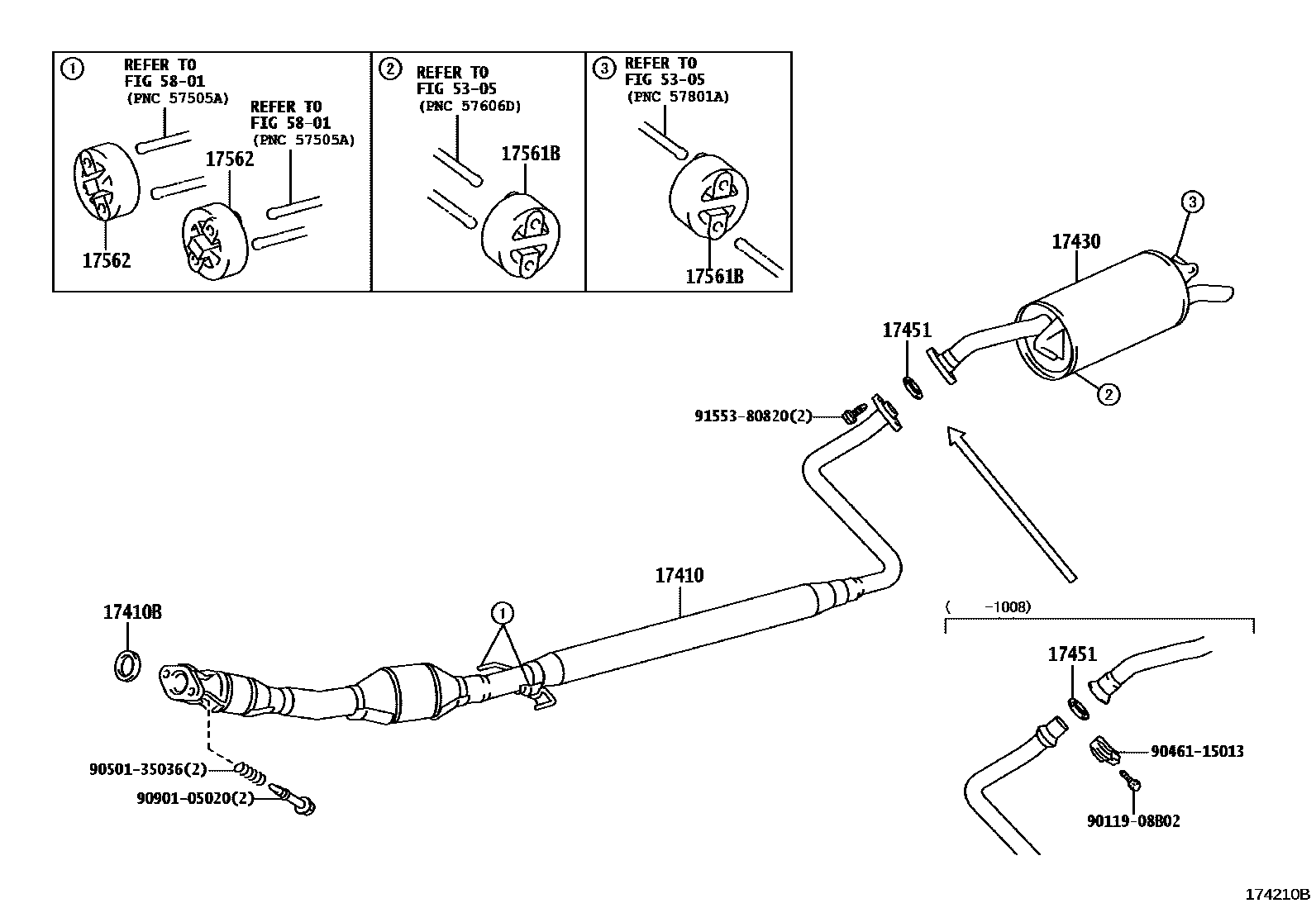

EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-21420i1NZFE..NNP15200706-201008

main17410-21510i1NZFE,2NZFE..NNP10,11200706-200910

main17410-21511i1NZFE,2NZFE..NNP10,11200911-201008

main17410-21A70i1NZFE,2NZFE..NNP10,11201008

main17410-21A80i1NZFE..NNP15201008

17410BGASKET, EXHAUST PIPE

main17451-21030i1NZFE,2NZFE..NNP1#200706

17430PIPE ASSY, EXHAUST, TAIL

main17430-21490i1NZFE,2NZFE..NNP10,11200706-200910

main17430-21491i1NZFE,2NZFE..NNP10,11200911-201008

main17430-21720i1NZFE..NNP15200601-200706

main17430-21721i1NZFE..NNP15200910-200911

main17430-21722i1NZFE..NNP15200911-201007

main17430-21723i1NZFE..NNP15201008

main17430-21810i1NZFE,2NZFE..NNP10,11201008

17451GASKET, EXHAUST PIPE

main90917-06039i1NZFE,2NZFE..NNP10,11201008

main90917-06048i1NZFE..NNP15201008

main90917-06082i1NZFE,2NZFE..NNP1#200706-201008

17561BSUPPORT, EXHAUST PIPE, NO.1

main17565-28010×2i1NZFE,2NZFE..NNP1#201008

main17565-55050×2i1NZFE..NNP15200601-200706

main17565-74280×2i1NZFE,2NZFE..NNP10,11200706-201008

17562SUPPORT, EXHAUST PIPE, NO.2

main17562-23040×2i1NZFE,2NZFE..NNP10,11200407-200706

main17565-11160×2i1NZFE..NNP15200706-201008

main17565-22030×2i1NZFE,2NZFE..NNP1#201008

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

9011908B02

main90119-08B02

9046115013

main90461-15013

9050135036

main90501-35036

9090105020

main90901-05020

9155380820

main91553-80820

13 parts on this diagram · 2 diagrams in section
