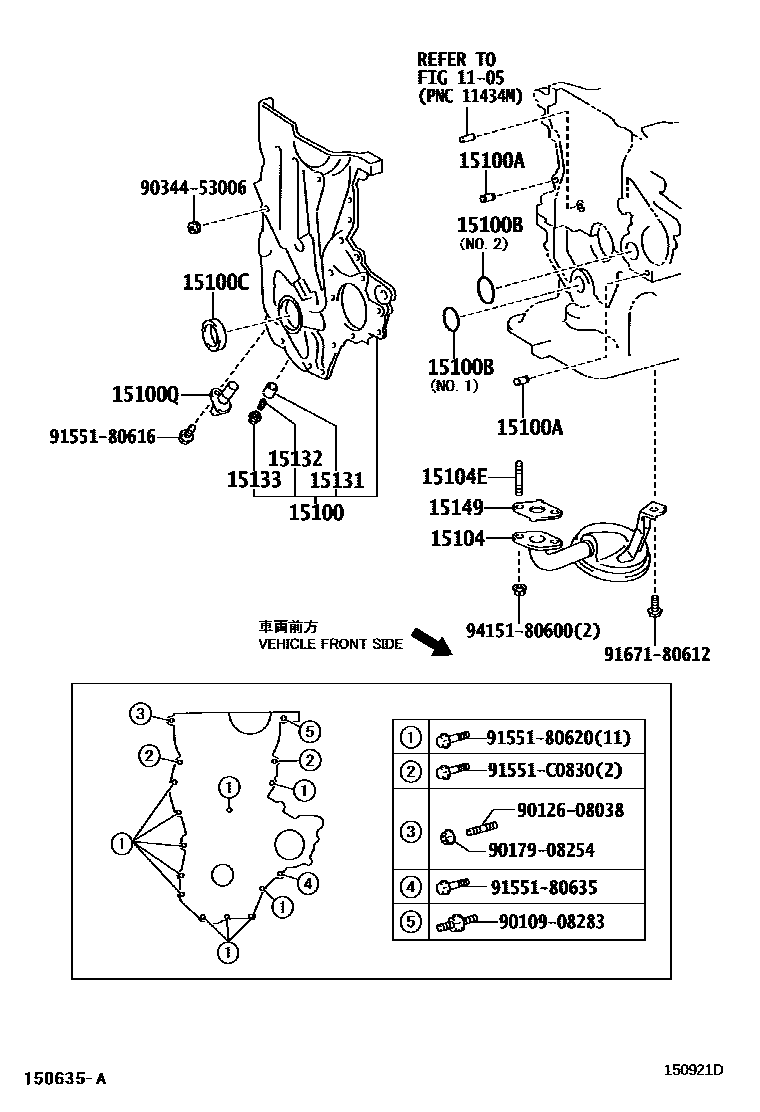

ENGINE OIL PUMP

0001 1 0003 1

1105CYLINDER BLOCK

→ Go to FIG 11-05

15100PUMP ASSY, OIL

main15100-21030i2NZFE..NNP10200407-200706

main15100-21032i2NZFE..NNP10201111

main15100-21040i1NZFE..NNP11,15200706-201111

main15100-21042i1NZFE..NNP11,15201111-201204

main15100-21043i1NZFE..NNP11,15201204

15100APIN, RING(FOR OIL PUMP SET)

main90253-08003×2i1NZFE,2NZFE..NNP1#200706

15100BRING, O(FOR OIL PUMP)

main11497-21010i1NZFE,2NZFE..NNP1#201111

main12151-21010i1NZFE,2NZFE..NNP1#201111

main90301-31012i1NZFE,2NZFE..NNP1#200407-200706

main90301-42006i1NZFE,2NZFE..NNP1#200706-201111

15100CSEAL(FOR OIL PUMP)

main90311-25021i1NZFE,2NZFE..NNP1#200407-200706

main90311-25032i1NZFE,2NZFE..NNP1#201204-201206

15100QSENSOR, CRANK POSITION

main90919-05045i1NZFE,2NZFE..NNP1#200407-200706

main90919-05081i1NZFE,2NZFE..NNP1#201105

15104STRAINER SUB-ASSY, OIL

main15104-21021i1NZFE,2NZFE..NNP1#200407-200612

main15104-21022i1NZFE,2NZFE..NNP1#200612-200706

15104EBOLT, STUD(FOR OIL STRAINER)

main90126-06021×2i1NZFE,2NZFE..NNP1#200407-200706

15131VALVE, OIL PUMP RELIEF

main15131-21020i1NZFE,2NZFE..NNP1#200407-200706

15132SPRING, OIL PUMP RELIEF VALVE

main15132-21020i1NZFE,2NZFE..NNP1#200407-200706

15133PLUG, OIL PUMP RELIEF VALVE

main15133-21030i1NZFE,2NZFE..NNP1#200407-200706

15149GASKET, OIL STRAINER FLANGE

main16258-21030i1NZFE,2NZFE..NNP1#200407-200706

9010908283

main90109-08283

9012608038

main90126-08038

9017908254

main90179-08254

9034453006

main90344-53006

9155180616

main91551-80616

9155180620

main91551-80620

9155180635

main91551-80635

91551C0830

main91551-C0830

9167180612

main91671-80612

9415180600

main94151-80600

22 parts on this diagram · 2 diagrams in section
