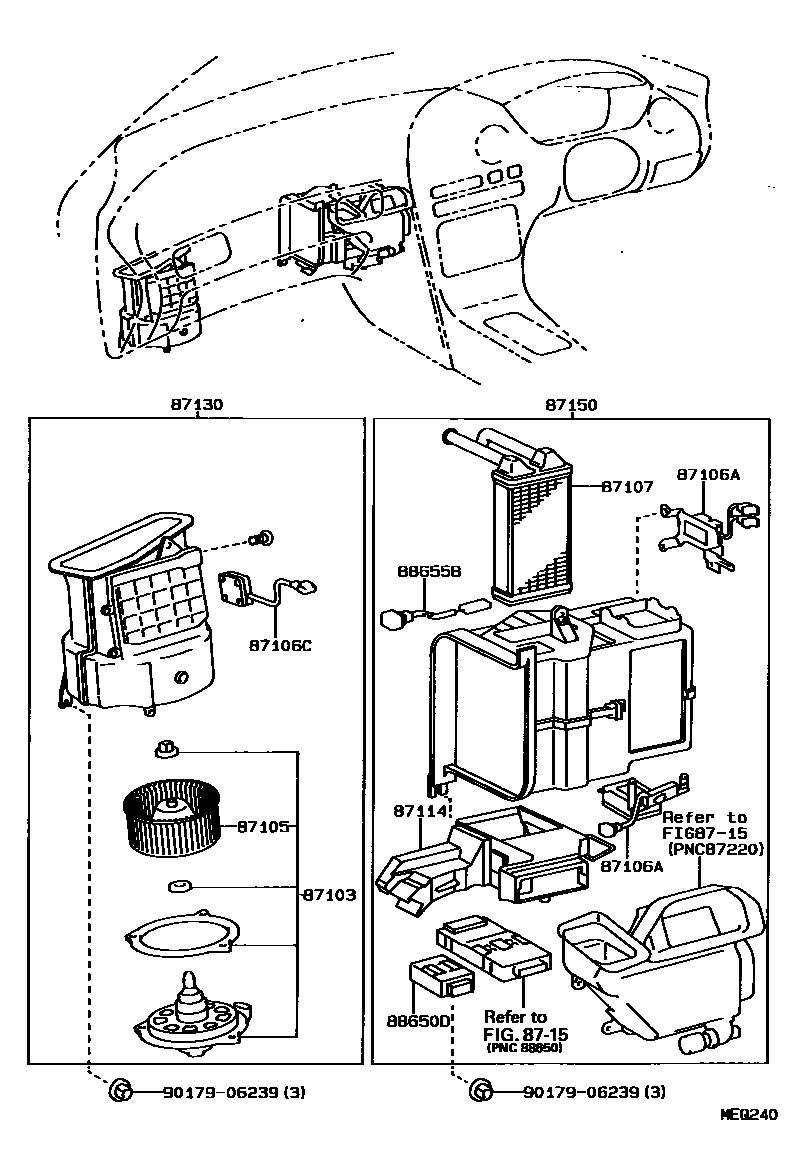

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-18010iEXY10199003-199512

87105FAN SUB-ASSY, HEATER BLOWER

main87105-32010iEXY10199003-199512

87106ASERVO SUB-ASSY, DAMPER

main87106-10020iEXY10199003-199512

main87106-18020iEXY10199003-199512

87106CSERVO SUB-ASSY, DAMPER(FOR BLOWER)

main87106-10010iEXY10199003-199512

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-18010iEXY10199003-199512

main87107-18020iEXY10199003-199512

87114COVER, HEATER

main87114-10060iEXY10199003-199411

main87114-42010iEXY10199411-199512

87130BLOWER ASSY, HEATER, FRONT

main87130-18010iEXY10199003-199512

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87150RADIATOR ASSY, HEATER

main87150-18030iEXY10199003-199206

main87150-18031iEXY10199206-199512

main87150-18040iEXY10199003-199206

main87150-18041iEXY10199206-199512

88650DAMPLIFIER ASSY

main88650-18010iEXY10199003-199512

88655BSWITCH, WATER TEMPERATURE

main88625-10070iEXY10199003-199512

9017906239

main90179-06239

12 parts on this diagram · 2 diagrams in section
